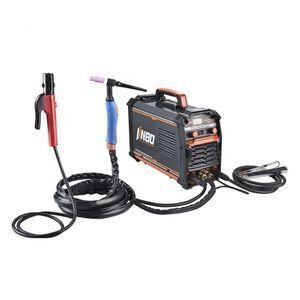

smart portable single phase IGBT inverter TIG-200/250 tig welding machine TIG/MMA argon arc welding machine 2in1 tig weld

Supplier: Zhejiang Jinbo Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Steven Tian
Price: $80.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Rated Input Power Capacity(KVA):	6.6;7.5;	Usage:	tig weld;
AC Input Voltage(V):	AC 220V(110V Support);	Brand Name:	OEN;
Output Polarity:	DC TIG;	Welding Current/Voltage Range:	20-200;250;
Efficiency(%):	85%;	Certification:	CE,ROHS;
Rated Duty Cycle(%):	60%;	Pulse Frequency:	50/60HZ;
Single gross weight:	9 KG;	Package Preview:	https://sc02.alicdn.com/kf/ULB8kFGlsHPJXKJkSafS761qUXXaH.png_640x640.png;
Single package size:	44.5X25.5X31.5 cm;	Material / Metal Processed:	Carbon Steel,Stainless Steel;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Voltage:	AC 220V(110V Support);
Protection class of case:	IP21;	Rated Duty Cycle:	60%;
Output current range(A):	20-200;250;	Rated Input Voltage:	AC 220V(110V Support);
Place of Origin:	China;	Dimensions:	385165250MM;
Class of Insulation:	F;	Arc Current:	20-200;250;
Power(W):	6600W;7500W;	Warranty:	1 year;
Max. Load Power Capacity:	6600W;7500W;	Selling Units:	Single item;
Non-load Voltage(V):	68;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Pilot Arc Current:	20-200;250;	Rated Output Current (TIG):	20-200;250;
Motor Type:	DC MOTOR;	Condition:	New;
Input Frequency(Hz):	50/60;	Rated Output Voltage (TIG):	AC 220V(110V Support);
Package Type:	honeycomb box;	Rated Duty Cycle @40°C (TIG):	60%;
Type:	IGBT 1 PCB;

Model	TIG/MMA-200A	TIG/MMA-250A
Type	IGBT 1 PCB	IGBT 1 PCB
Real Amp(A)	160	180
AC Input Voltage(V)	AC 220V(110V Support)	AC 220V(110V Support)
Rated Input Power Capacity(KVA)	6.6	7.5
Input Frequency(Hz)	50/60	50/60
Non-load Voltage(V)	68	68
Output current range(A)	20-200	20-250
Rated Duty Cycle(%)	60%	60%
Efficiency(%)	85%	85%
Class of Insulation	F	F
Protection class of case	IP21	IP21
Electrode diameter(mm)	1.6-4.0	1.6-4.0
Welding thickness(mm)	2-8	3-10
Quick joint Size(mm)	35-50	35-50
N.W./G.W.(kg)	5.2/9	5.3/9.1
Machine Size(LxWxH mm)	385165250	475200315
Package Dimension(LxWxH mm)	445255315	445255315
Package	honeycomb box	honeycomb box
Accessories	1.8m 16mm 300A holder 1.2m 16mm 300A clamp wp-17 4m torch mask, brush, manual	1.8m 16mm 300A holder 1.2m 16mm 300A clamp wp-17 4m torch mask, brush, manual
