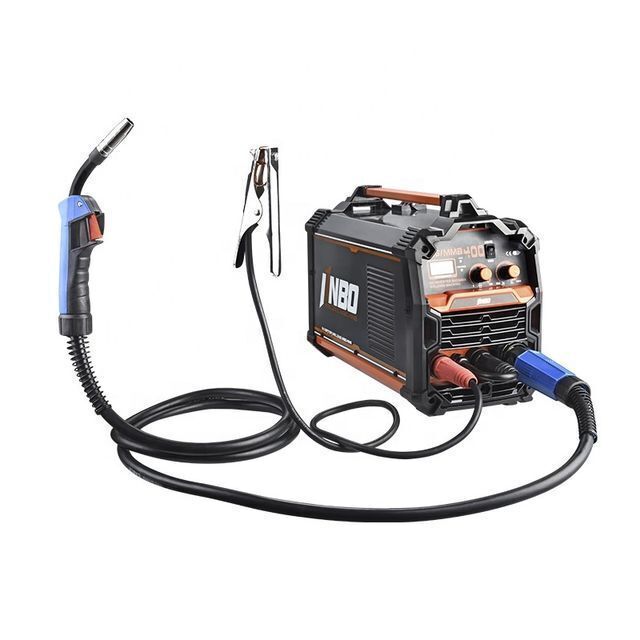

IGBT Inverter MIG/MAG CO2 Mig Welder Welding Machine MIG-200

Click here to contact

Product details

Packaging Detail:	honeycomb box;	Type:	IGBT;
Weight (KG):	15 KG;	Rated Input Power Capacity(KVA):	6.6;
Power:	6600w;10000w;	Rated Output Voltage (MIG):	AC 220V(110V Support);
Single gross weight:	15.0 KG;	Selling Units:	Single item;
Warranty:	1 Year;	Condition:	New;
Wire Feeding Speed:	3-15;	Place of Origin:	China;
Usage:	weld;	Dimensions:	465230300;
Efficiency(%):	85%;	Rated Input Voltage:	AC 220V(110V Support);
Welding Current/Voltage Range:	20-200;300A;	Class of Insulation:	F;
Input Frequency(Hz):	50/60;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Construction works ;
Max. Load Power Capacity:	6600w;10000w;	Rated Output Current (MIG):	20-200;300A;
Brand Name:	OEM;	Year:	2019;
Package Preview:	;	Certification:	CE;ROHS;
AC Input Voltage(V):	AC 220V(110V Support);	Rated Duty Cycle @40°C (MIG):	60%;
Protection class of case:	IP21;	Material / Metal Processed:	Carbon Steel;
No-load Voltage(V):	68;	Voltage:	AC 220V(110V Support);
After-sales Service Provided:	Field maintenance and repair service,Online support,Free spare parts,Field installation, commissioning and training,Video technical support;	Wire Melting Type:	Globular Transfer;
Single package size:	52.5X26X38.5 cm;	Rated Duty Cycle(%):	60%;
Output current range(A):	20-200;300;

Model	MIG/MMA-200	MIG/MMA-300
Type	IGBT	IGBT
AC Input Voltage(V)	AC 220V(110V Support)	AC 220V(110V Support)
Rated Input Power Capacity(KVA)	6.6	10
Input Frequency(Hz)	50/60	50/60
No-load Voltage(V)	68	68
Output current range(A)	20-200	20-300
Rated Duty Cycle(%)	60%	60%
Efficiency(%)	85%	85%
Class of Insulation	F	F
Protection class of case	IP21	IP21
Electrode diameter(mm)	1.6-4.0	1.6-5.0
Wire diameter(mm)	0.8/1.0	0.8/1.0
Quick joint Size(mm)	35-50	35-50
N.W./G.W.(kg)	10.7/14.8	11/15.1
Machine Size(LxWxH mm)	465230300	465230300
Package Dimension(LxWxH mm)	525260385	525260385
Package	honeycomb box	honeycomb box
Accessories	1.8m 16mm 300A holder 1.2m 16mm 300A clamp 15AK2 4m torch mask, brush, manual	1.8m 25mm 300A holder 1.2m 25mm 300A clamp 15AK2 4m torch mask, brush, manual
