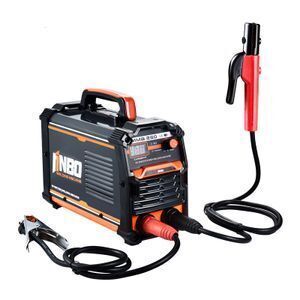

DC Inverter ARC Welder 220V IGBT MMA Welding Machine 160 Amp for Home Beginner Lightweight Efficient

Click here to contact

Product details

Brand Name:	OEM;	Output current range(A):	20-200;250;300;
Non-load Voltage(V):	60;	Usage:	WELDING STEEL;

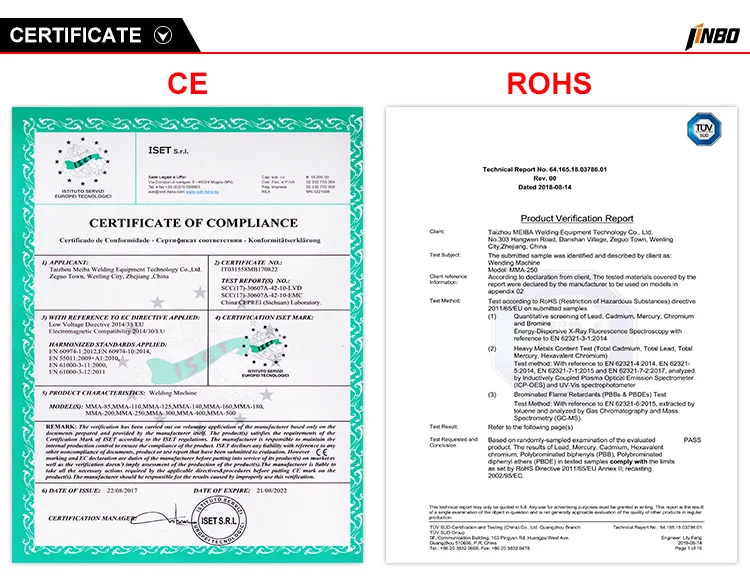

Certification:	CE , ROHS;	Place of Origin:	China;
Dimensions:	340155235MM;	Package Preview:	;
Rated Output Voltage:	AC 220V(110V Support);	Max. Load Power Capacity:	5000W;5700W;6600W;
Voltage:	AC 220V(110V Support);	Condition:	New;
Single package size:	41X21X30.5 cm;	Efficiency(%):	85%;
Arc Current:	20-200;250;300;	Power:	5000W;5700W;6600W;
Motor Type:	DC MOTOR;	Rated Duty Cycle(%):	60%;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Farms,Home Use,Construction works ,Advertising Company;	Rated Input Voltage:	AC 220V(110V Support);
Welding Current/Voltage Range:	20-200;250;300;	AC Input Voltage(V):	AC 220V(110V Support);
Class of Insulation:	F;	Rated Duty Cycle:	60%;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Type:	IGBT 1 PCB;
Packaging Detail:	color box+foam;	Selling Units:	Single item;
Warranty:	1 Year;	Pulse Frequency:	50/60HZ;
Single gross weight:	6.0 KG;	Rated Output Current:	20-200;250;300;
Electrode diameter(mm):	1.6-4.0;	Input Frequency(Hz):	50/60;
Rated Duty Cycle @40°C:	60%;	Rated Input Power Capacity(KVA):	5;5.7;6.6;
Pilot Arc Current:	20-200;250;300;

Model	MMA-200	MMA-250	MMA-300

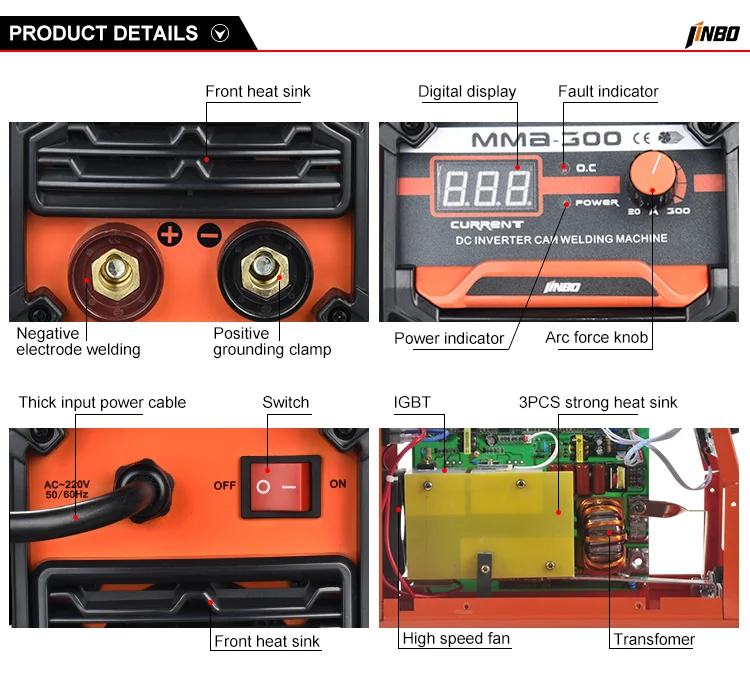

Type	IGBT 1 PCB	IGBT 1 PCB	IGBT 1 PCB
AC Input Voltage(V)	AC 220V(110V Support)	AC 220V(110V Support)	AC 220V(110V Support)
Rated Input Power Capacity(KVA)	5	5.7	6.6
Input Frequency(Hz)	50/60	50/60	50/60
Non-load Voltage(V)	60	60	60
Output current range(A)	20-200	20-250	20-300
Rated Duty Cycle(%)	60%	60%	60%
Efficiency(%)	85%	85%	85%
Class of Insulation	F	F	F
Protection class of case	IP21	IP21	IP21
Electrode diameter(mm)	1.6-3.2	1.6-3.2	1.6-4.0
Quick joint Size	35-50mm	35-50mm	35-50mm
N.W./G.W.(kg)	3.8/5.6	4.0/5.8	4.2/6
Machine Size(LxWxH mm)	340155235	340155235	340155235
Package Dimension(LxWxH mm)	410210305	410210305	410210305
Package	color box+foam	color box+foam	color box+foam
Accessories	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual	1.8m 16mm 300A holder 1.2m 16mm 300A clamp mask, brush, manual
