MMA ZX7 inverter welding machine 110V

Click here to contact

Product details

Package Preview:	https://sc01.alicdn.com/kf/HLB1AgtXS3TqK1RjSZPh760fOFXa6.png_640x640.png;	Package Type:	color box+foam;
Condition:	New;	Usage:	WELDING;
Single gross weight:	5 KG;	Brand Name:	OEM;
Motor Type:	DC MOTOR;	Rated Input Voltage:	220V(110V Support);
AC Input Voltage(V):	220V(110V Support);	Rated Output Current:	20-200;250;
Rated Duty Cycle @40°C:	60%;	Protection class of case:	IP21;
Voltage:	220V(110V Support);	Rated Input Power Capacity(KVA):	5;5.7;
Type:	IGBT 1 PCB;	Dimensions:	290130190;
Output current range(A):	20-200;250;	Selling Units:	Single item;
Max. Load Power Capacity:	5500W;5700W;	Rated Duty Cycle:	60%;
Applicable Industries:	Hotels,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Food Shop,Printing Shops,Energy & Mining;	Pulse Frequency:	50/60HZ;
After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Welding Current/Voltage Range:	20-200;250;
Certification:	CE , ROHS;	Single package size:	37.5X18X30 cm;
Warranty:	1 year;	Efficiency(%):	85%;
Rated Duty Cycle(%):	60%;	Power(W):	5500W;5700W;
Arc Current:	20-200;250;	Place of Origin:	Zhejiang China;
Pilot Arc Current:	20-200;250;	Non-load Voltage(V):	60;
Class of Insulation:	F;	Input Frequency(Hz):	50/60;
Rated Output Voltage:	220V(110V Support);

Model	MMA-200MN	MMA-250MN
Type	IGBT 1 PCB	IGBT 1 PCB
AC Input Voltage(V)	220V(110V Support)	220V(110V Support)
Rated Input Power Capacity(KVA)	5	5.7
Input Frequency(Hz)	50/60	50/60
Non-load Voltage(V)	60	60
Output current range(A)	20-200	20-250
Rated Duty Cycle(%)	60%	60%
Efficiency(%)	85%	85%
Class of Insulation	F	F
Protection class of case	IP21	IP21
Electrode diameter(mm)	1.6-3.2	1.6-3.2
Quick joint Size	10-25mm	10-25mm
N.W./G.W.(kg)	3/4.6	3.2/4.8
Machine Size(LxWxH mm)	290130190	290130190
Package Dimension(LxWxH mm)	375180300 color box+foam	375180300 color box+foam
	360215255 honeycomb box	360215255 honeycomb box
	400160405 BMC+color box	400160405 BMC+color box

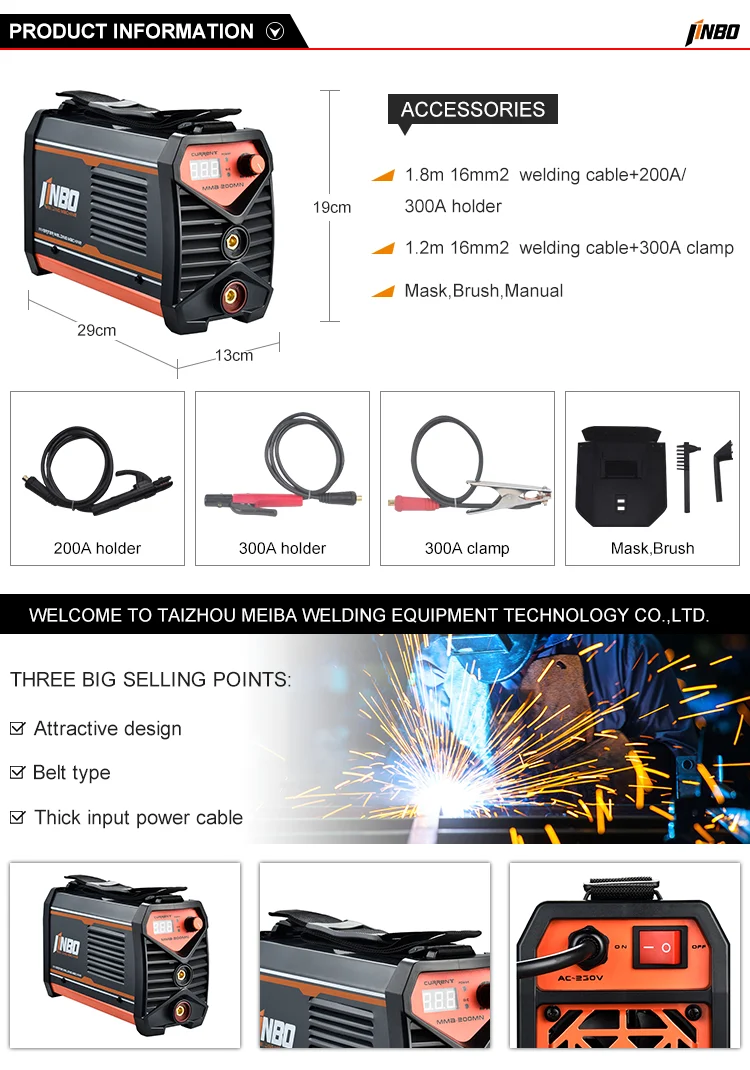

Accessories	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual
