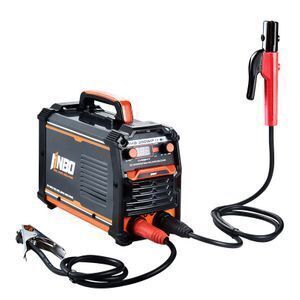

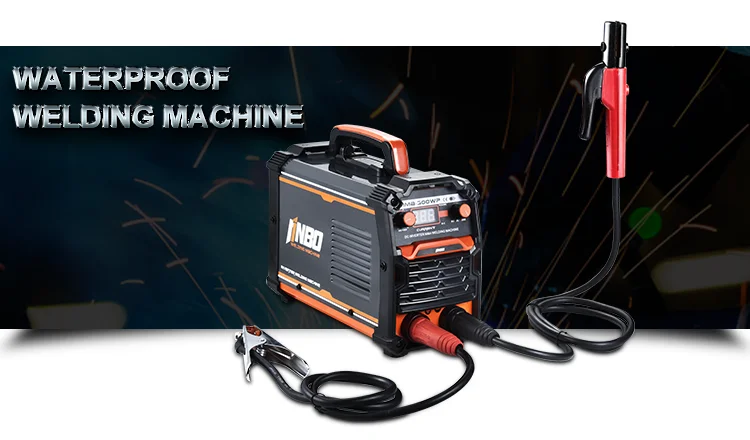

Portable waterproof igbt mma-250 welding machine

Click here to contact

Product details

Packaging Detail:	more 500pcs honeycomb box less than 500 color box+foam;	Power(W):	5700w;6600w;8800w;
Rated Input Power Capacity(KVA):	5.7;6.6;8.8;	Warranty:	1 year;
Rated Duty Cycle(%):	60%;	Pulse Frequency:	50/60hz;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Input Frequency(Hz):	50/60;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Certification:	CE,ROSH;
Voltage:	220V(110 Support);	Brand Name:	JINBO;
Port:	NINGBO,SHANGHAI;	Non-load Voltage(V):	80;
Class of Insulation:	F;	Output current range(A):	20-200;250;300;
Efficiency(%):	85%;	Place of Origin:	China;
Type:	MMA Welders;	Supply Ability:	20000 Bag/Bags per Month;
Type:	waterproof welding machine;	Rated Duty Cycle:	60%;
AC Input Voltage(V):	AC 220V(110V Support);	Usage:	WELDING;
Protection class of case:	IP21;	Pilot Arc Current:	20-200;250;300A;
Arc Current:	20-200;250;300A;	Motor Type:	DC MOTOR;
Condition:	New;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Dimensions:	340155235mm;

Model	MMA-200WP	MMA-250WP	MMA-300WP
Type	waterproof welding machine	waterproof welding machine	waterproof welding machine
AC Input Voltage(V)	AC 220V(110V Support)	AC 220V(110V Support)	AC 220V(110V Support)
Rated Input Power Capacity(KVA)	5.7	6.6	8.8
Input Frequency(Hz)	50/60	50/60	50/60
Non-load Voltage(V)	80	80	80
Output current range(A)	20-200	20-250	20-300
Rated Duty Cycle(%)	60%	60%	60%
Efficiency(%)	85%	85%	85%
Class of Insulation	F	F	F
Protection class of case	IP21	IP21	IP21
Electrode diameter(mm)	1.6-3.2	1.6-4.0	1.6-5.0
Quick joint Size	35-50mm	35-50mm	35-50mm
N.W./G.W.(kg)	5.65/7.45	5.85/7.65	6.05/7.85
Machine Size(LxWxH mm)	340155235	340155235	340155235
Package Dimension(LxWxH mm)	410210305	410210305	410210305
Package Dimension(LxWxH mm)	410210305 color box+foam	410210305 color box+foam	410210305 color box+foam
	420195320 honeycomb box	420195320 honeycomb box	420195320 honeycomb box
	435190405 BMC+color box	435190405 BMC+color box	435190405 BMC+color box
Accessories	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual	1.8m 16mm 200A holder 1.2m 16mm 300A clamp mask, brush, manual	1.8m 16mm 300A holder 1.2m 16mm 300A clamp mask, brush, manual
