UNI-T UTG9005C-II function / arbitrary waveform generator 5MHz single channel digital signal source 125MS / s sampling rate

Supplier: Shenzhen Kuaiqu Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr James Zhang
Price: $114.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Square:	1μHz~2MHz;	Arbitrary:	1μHz~1MHz;
Place of Origin:	Guangdong China;	Single gross weight:	4 KG;
Bandwidth:	5MHz;	Sine:	1μHz~2MHz;
Selling Units:	Single item;	Type:	function generator;
Sampling rate:	125MS/s;	Package Type:	Carton Package;
Channel:	1;	Single package size:	20X15X8 cm;
Model Number:	UTG9005C-II;	Resolution:	1μHz;
Vertical resolution:	14 bits;	Pulse:	1μHz~2MHz;
Ramp:	1μHz~200kHz;	Brand Name:	UNI-T;

UNI-T UTG9005C-II function / arbitrary waveform generator 5MHz single channel digital signal source 125MS / s sampling rate

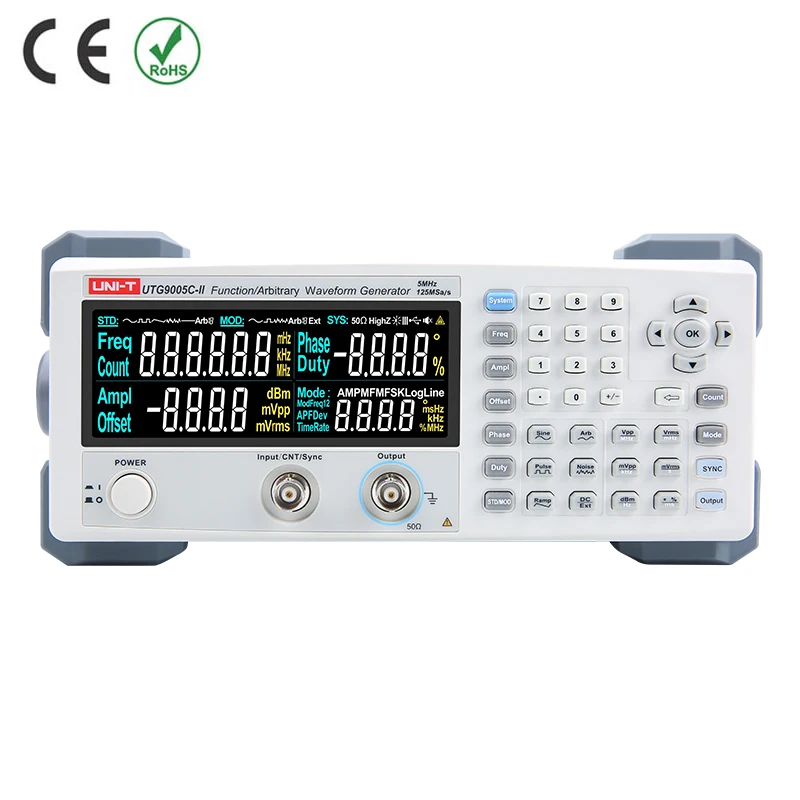

UTG9005C-II Function/Arbitrary Waveform Generator

The UTG9000C-II Series Function/Arbitrary Waveform Generator uses the direct digital synthesis technology, which can generate the accurate, stable,

pure and low-distortion waveform output, and the resolution is as low as 1μHz. It is an economical, high-performance and multifunctional function/arbitrary waveform generator. With the convenient operation interface, excellent technical indicators and humanized graphic display, this multi-purpose equipment can meet your learning and testing requirements and improve work efficiency.

Applications:

Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.

Features

1. Output waveforms: Sine, square, ramp, pulse, noise, DC, arbitrary

2. Output frequency range: Sine/square, 5MHz

3. High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz

4. 4W power output

5. EBTN LCD screen

Tech. Spec

Specifications
Model	UTG9005C-II
Channel	1
Bandwidth	5MHz
Sampling rate	125MS/s
Vertical resolution	14 bits
Waveforms	Sine, square, pulse, ramp, noise, DC, arbitrary (20 sets inside )
Sweep modes	Logarithmic, linear
Frequency Characteristics
Sine	1μHz~2MHz
Square	1μHz~2MHz
Ramp	1μHz~200kHz
Pulse	1μHz~2MHz
Arbitrary	1μHz~1MHz
Resolution	1μHz
Accuracy	Within 90 days ± 50ppm
	Within 1 year ± 100ppm
	18℃~28℃
Output Characteristics
Impedance	50Ω/High Z
Amplitude range	1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
DC offset range	-5Vpp~5Vpp (50Ω) (AC+DC); -10Vpp~10Vpp (high Z) (AC+DC)
Amplitude resolution	1mV
General Characteristics

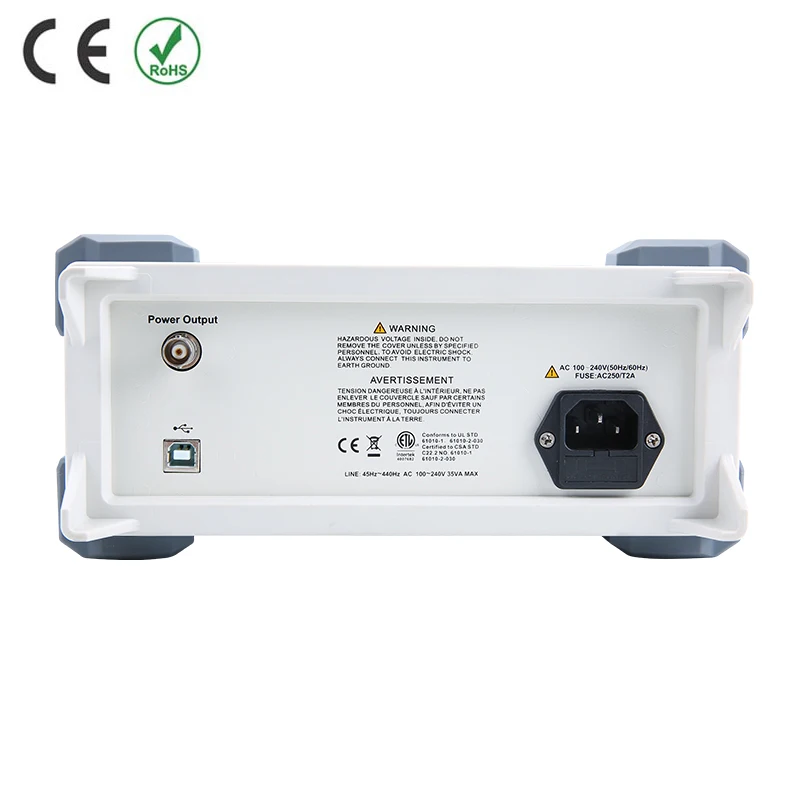

Power	100~240VAC, 50Hz/60Hz
Display	EBTN LCD
Product color	White and grey
Product net weight	2.8kg
Product size	265mm x 110mm x 320mm

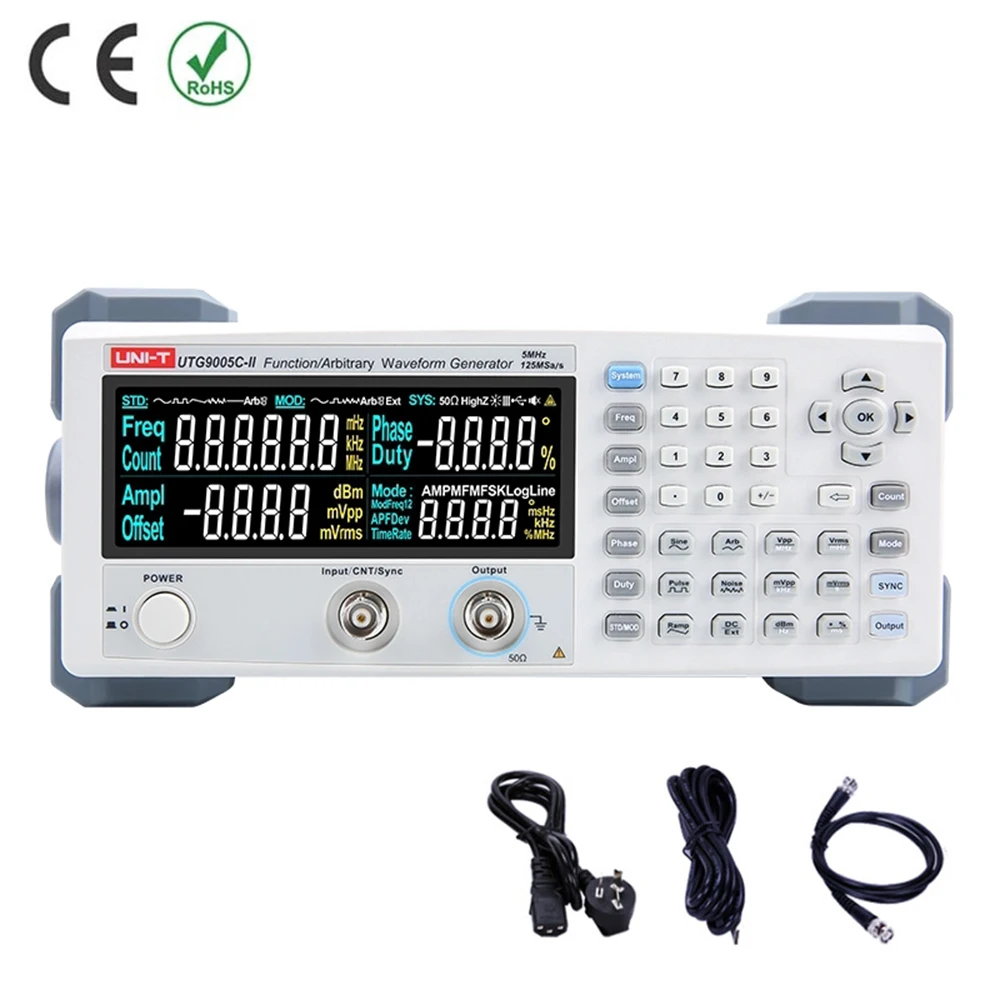

Standard accessories	USB interface cable, power cord, BNC cable with alligator clips , PC software CD
Standard individual packing	Carton box
Standard quantity per carton	2pcs
Standard carton measurement	380mm x 330mm x 320mm
Standard carton gross weight	7kg
