Horizontal 48 carriers steel wire braiding machine for hydraulic hose

Click here to contact
Product details
carrier No.:48;Decker no.:single or double;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Motor power:5.5kw;
Port:FOB CHINA MAIN PORT;Condition:New;
Packaging Detail:STANDARD SEA WORTHY PACKING;Braiding diameter:30-75mm;
Braiding Pitch:66-166mm;Braiding speed:Max.120M/H;
Applicable Industries:Rubber/stainless steel hose;Place of Origin:China;
Braiding angle:54°44";Brand Name:comflex;
After-sales Service Provided:Free Spare Parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;Warranty:1 Year;
Supply Ability:100 Set/Sets per Month;Pulling Speed:29-72m/h;
Carrier Rotation Speed:7.25r/min;After-sales Service Provided:Overseas service center available;

Horizontal 48 carriers steel wire braiding machine for hydraulic hose



Machine description



Wire braiding machine

The wire braiding machines we can make as follows:

Wire diameter:0.3mm to 0.8mm

No.of spindles:16 to 112 spindle braiding machine

ID of the braids:4mm to 600mm

Material of wires:stainless steel,galvanized carbon steel, copper wire



Technical data



 Single decker steel wire braiding technical data



Wire Braiding Machine

Type No.

Braid ID(mm)

rotation speed of spindler/min

braiding angle

Pitch(mm)

pulling speed(m/h)

no.of carriers

Motor power(KW)

BG-16

4-10

24.8

54°44'

9-22

13-33

16

Y132M1-6  4.0KW

BG-20

6--13

19.8

54°44'

13-29

15-34.5

20

Y132M1-6  4.0KW

BG-24

10--31

14.25

54°44'

22--69

21--66

24

Y132M1-6  4.0KW

BG-36

15--45

10

54°44'

33--100

22--66

36

Y132M1-6  5.5KW

BG-48

30--75

7.25

54°44'

66--166

29--72

20

Y132M1-6  7.5KW

BG-64

51--110

4.56

54°44'

67--240

18.6--102

64

Y160L-6  11KW

BG-72

80--150

4.25

54°44'

170--330

44--83

72

Y160L-6  11KW

BG-96

150--400

2.75

54°44'

240--750

50--120

96

Y160L-6  11KW





Double decker steel wire braiding technical data



+
DescriptionBraiding Diameter (mm)Carrier Rotation Speed (r/min)Braiding angleBraiding Pitch (mm)Pulling Speed M/HCarrier NO.Motor Power KW
GBG-2S164-1024.854°44"9-2213-3332Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S206-1619.854°44"13-2915-34.540Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S2410--3114.2554°44"22-6921-6648Y100L1-4 2.2KW Y100L2-4 3.0KW
GBG-2S3615--451054°44"33-10022-6672Y100L2-4 3.0KW Y100L2-4 3.0KW
GBG-2S4830--757.2554°44"66-16629-7296Y132M2-6 5.5KW Y112M-4 4.0KW

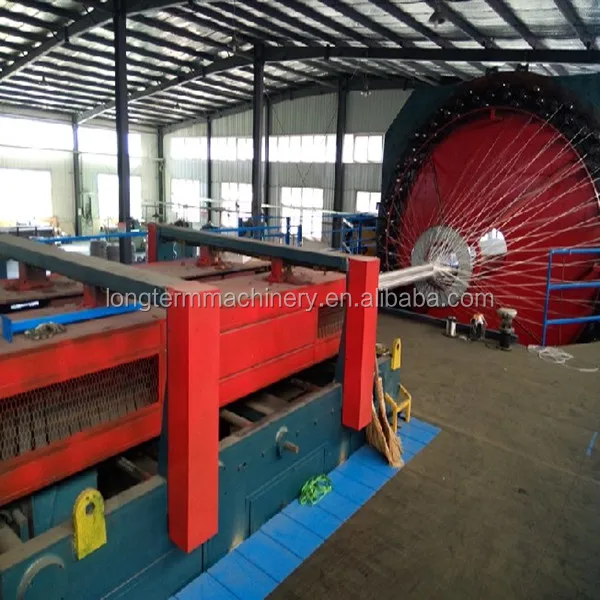

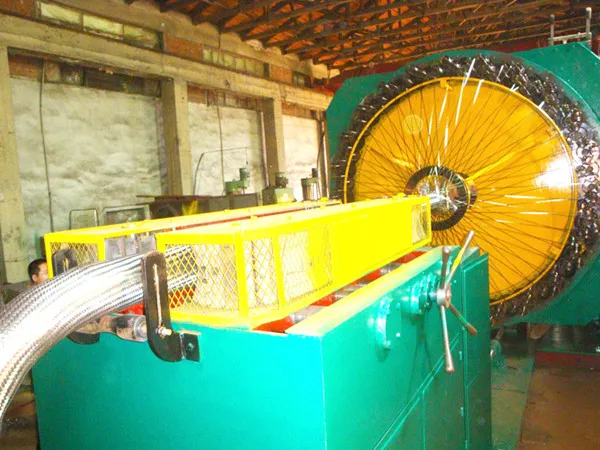

Machine showing

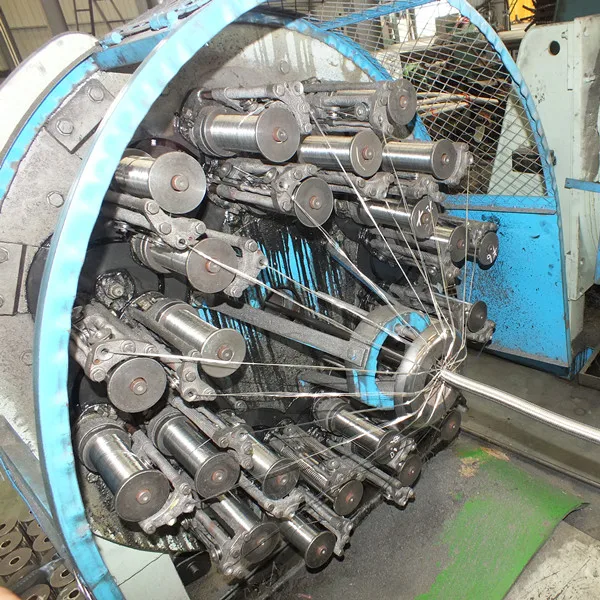

24 carriers steel wire braiding machine





48 carriers steel wire braiding machine

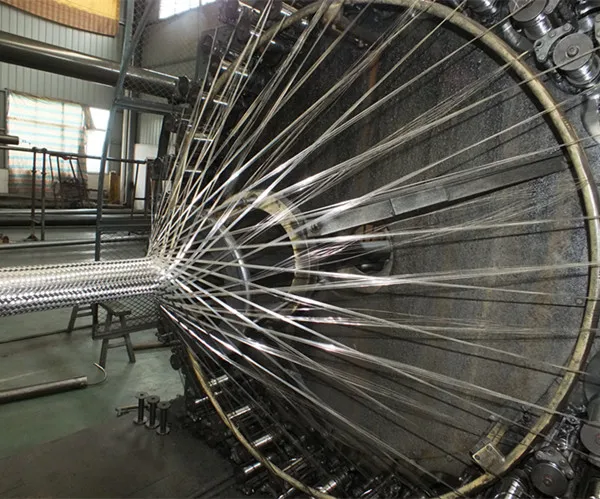

96 carriers steel wire braiding machine





128 carriers steel wire braiding machine





Braiding type details

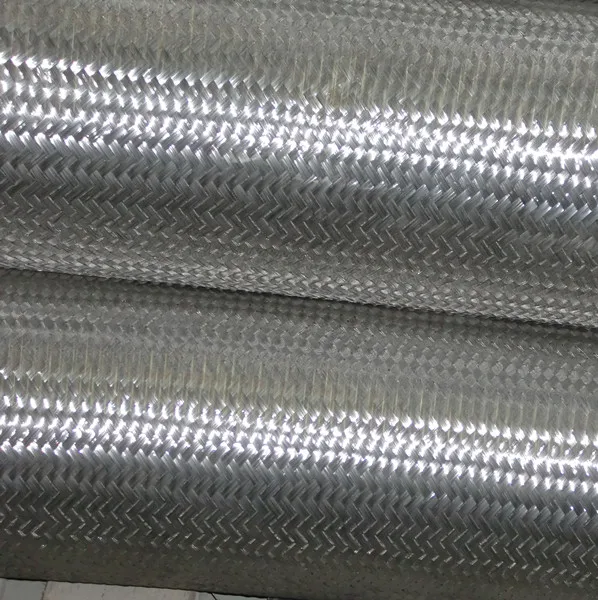

Braiding products

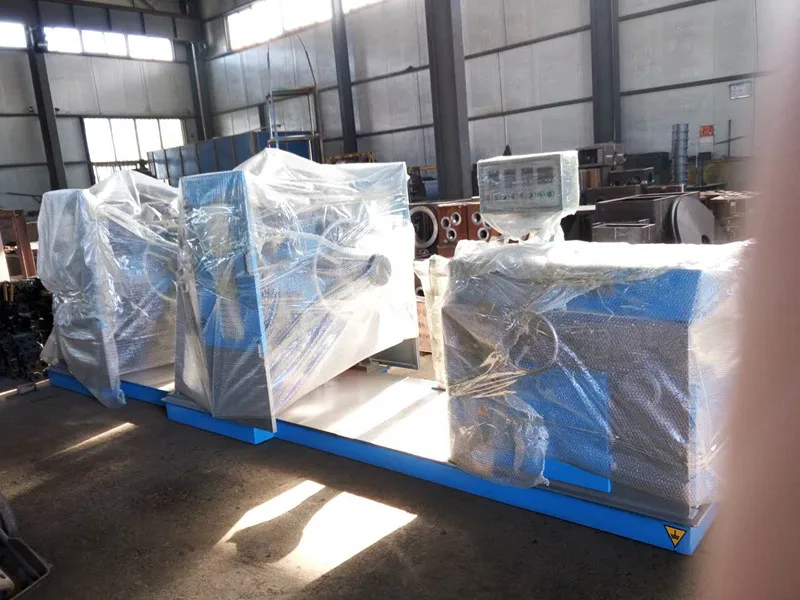

Packing and shipping







FAQ for Steel Wire Braiding Machine



1.  Why choose us as your supplier?



    We are most professional in steel wire braiding machine with more than 30



    years of experience



2.  What wires can you machine braid?



A. Stainless steel wire



B. Copper lad steel wire



C. Copper wire



3. What application of your braiding machine?



Popular for both rubber hose and metal hose manufacturing







  We need to know the following information to quote you correct machineries:



1.What outer diameter of the hose you want to braid?



2. Structure of the braid?



How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
