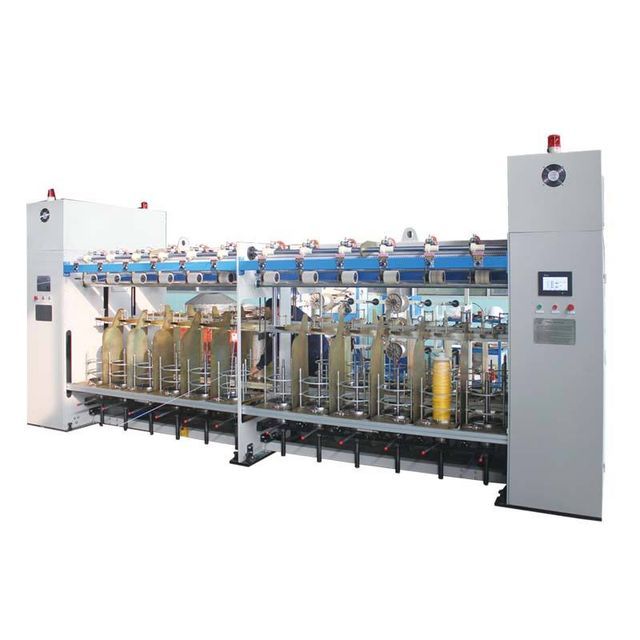

PP yarn ring twisting machine doubling machine ring twisting machine

Supplier: Shandong Rope Net Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Alice Shen
Price: $1.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certificate:	EU CE certification	Weight (kg):	100kg
Marketing type:	2020 new products	Warranty:	1 year, 1 year
Place of origin:	Shandong Province, China	Horn gear size:	90
Product Category:	Braided rope	Supply capacity:	100 rope machines per month
Health status:	new	Core component warranty:	1 year
Product Range:	1-6mm	strength:	5kW
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance	Operation:	automatic
brand:	Rupnet	Video outbound inspection:	if
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Spool size:	47*141
Horn gear speed:	330 rpm	Mechanical test report:	if
Showroom location:	not any	Packaging details:	wooden box
Applicable industries:	manufacturing plant

Product Description

Chinese twisting machine manufacturers:

This machine is a new type of yarn twisting machine further designed and developed on the basis of similar models at home and abroad. This product is equipped with a roller anti-reverse mechanism, a planetary reversing lifting mechanism, a safety device, and a torsional reversing mechanism. With double rollers and double operating surfaces, the stranding and twisting can be completed in one go. Stable operation, easy operation and maintenance. It is the main ideal equipment for yarn twisting production.

This machine can twist polypropylene, polyethylene, polyester, nylon and cotton single or multi-strand twisted yarns of different specifications.
Widely used in various fields such as rope, net, twine, ribbon, curtain cloth and so on. PLC control system makes it adjustable
The process, twist direction, speed and forming shape are easy. This machine has the characteristics of economic applicability.

user's guidance

Suitable for twisting and retwisting various yarns of 21s/500D 5 to 120 strands (plastic yarn 0.2* (2-70)), such as cotton, sisal, polyethylene, polyester, canvas thread, curtain thread and other chemicals Type of fiber.

Application effect description

PP polyester nylon multifilament yarn. HDPE PP monofilament yarn fishing yarn.
cotton yarn
Raffia wrapped wrapping yarn.
Small rope making.
artificial grass yarn
Cotton thread

thing	RMRT-813	RMRT-814	RMRT-722	RMRT-250	RMRT-250-24	RMRT-300
Number of spindles	160	120	40	12	twenty four	August 10, 2012
Spindle speed	3310-6760 rpm	2800-5730 rpm	1800-2800 rpm	2700-2100 rpm	1800-2800 rpm	1500-1800 rpm
Spindle distance	140mm	180mm	280mm	375 mm	280mm	560mm
Traveler diameter	100mm	140mm	204mm	254mm	250mm	305
twist direction	z or s	z or s	z or s	z or s	z or s	z or s
torsion range	60-800 rpm/meter	60-609 rpm/meter	80-350 rpm	35-270rpm	35-270rpm	30-150 rpm/m
Lifting movement of traveler	203 mm	205mm	300mm	300mm	300mm	300mm
diameter. Number of rollers	51mm/57mm	51mm/57mm	57mm	57mm	57mm	57mm
Motor Power	11 kilowatts	15kW	15kW	7.5kW	11 kilowatts	3kW
Overall size	13.5×1.13×2.15m	13.5×1.13×2.15m	7.07×1.58×2.27m	5.95×2×2.2m	5.95×2×2.2m	5.83×1.1×2m
gross weight	6500kg	6800kg	6600kg	2800kg	3800kg	300kg

Advantage

1. The material has strong adaptability and high reliability

2. Small footprint and simple design

3. Simple operation and convenient maintenance

4. High output, low waste, low cost and high performance

5. Efficient and convenient

6. Recycled materials and new materials can be used stably

7. Low energy consumption, low noise, stable operation, large carrying capacity and long service life.

8. Recycled and new materials can be used.

detailed picture

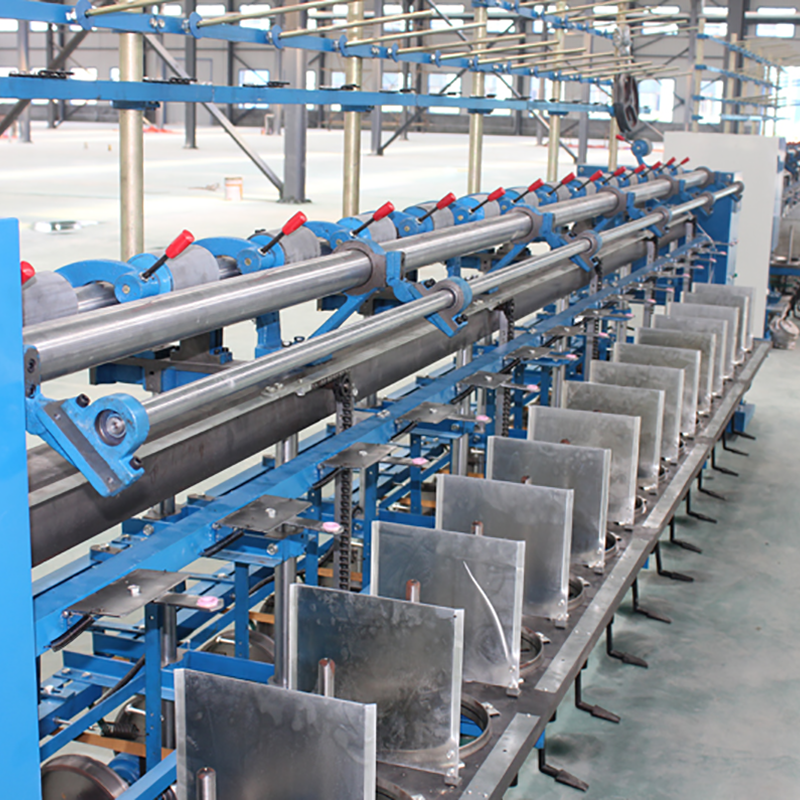

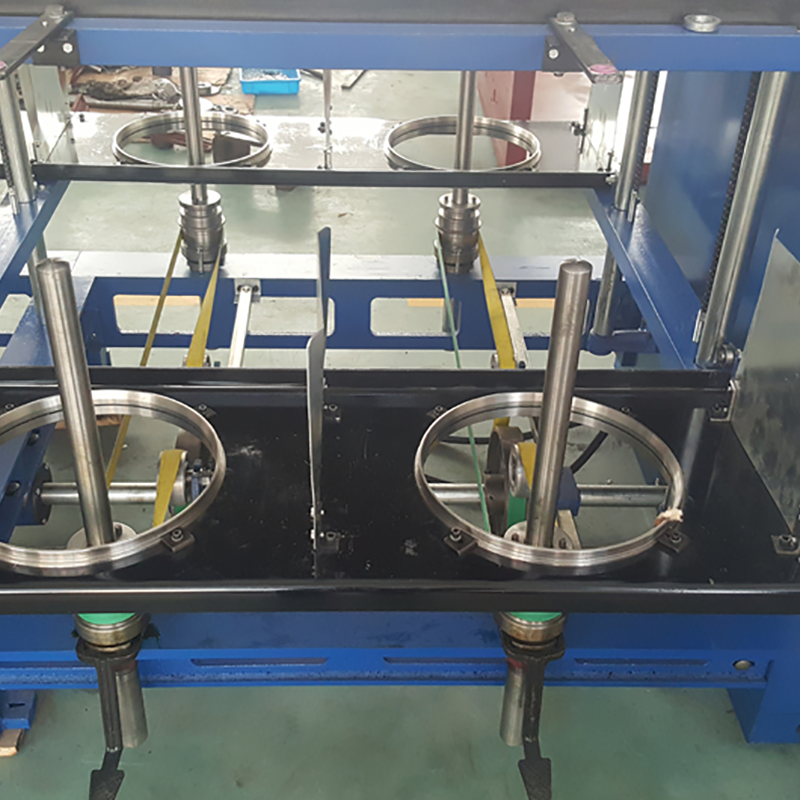

Spindle lift plate and drive shaft. The number of spindles can be configured according to customer needs. The drive shaft is a very important component in the twisting machine. It is responsible for transmitting the power of the motor to the rollers and lifting plates. Very ideal.

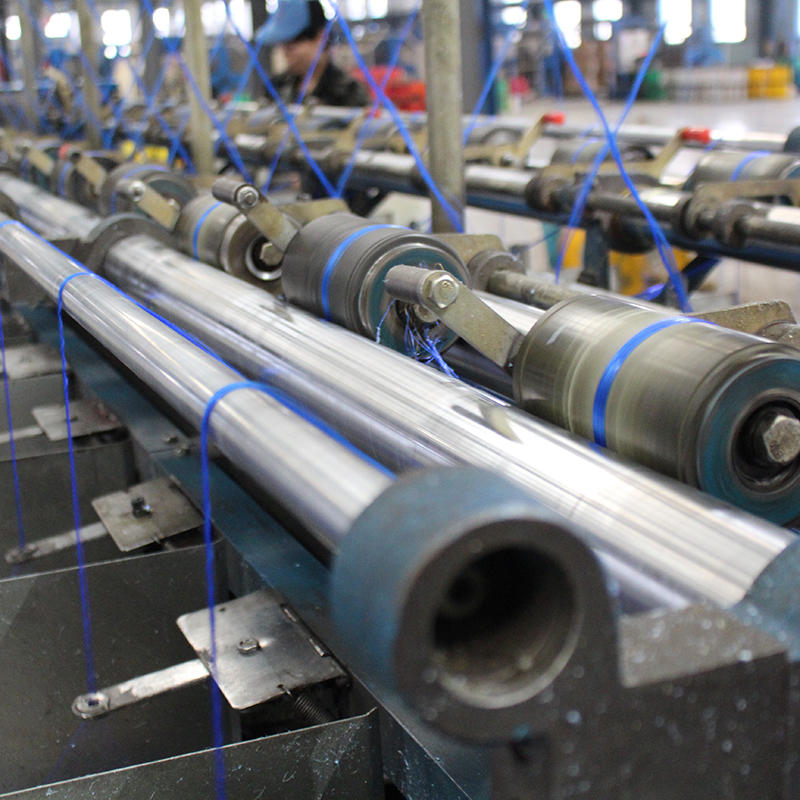

The twist range can be controlled by the roller speed. The roller speed can be controlled by gears. The number of shares can be decided by the customer as 2:1 or 3:1.

Reduction box gear system
A reduction gearbox reduces the speed until it fits the riser plate. The gear system changes the drum speed in the following ways:
Adjust various gears.
