Cotton Thread Ball Making Machine Split PP Raffia Yarn Ball Winder

Supplier: Shandong Rope Net Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Alice Shen
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	28007001050mm;	Supply Ability:	10 Set/Sets per Month;
Application:	winding twine into ball;	Payment Terms:	L/C,T/T;
Power(W):	0.55kw;	Outside Diameter Range:	MAX 180MM;
Arrange Width:	--;	Warranty:	1 YEAR;
After-sales Service Provided:	Engineers available to service machinery overseas;	Weight:	550kg;
Outline size of ball:	160mm* diameter180mm;	Suitable rope size:	1-3mm;
Brand Name:	ROPENET;	Certification:	CE/ISO;
Condition:	New;	Function:	winding ropes into ball; rope package;
No. of machine heads:	1/5/6/10;	name:	ball winder/ball winding machine;
Port:	Qingdao port;	Inside Diameter Range:	about 31MM;
ball winding speed:	5-70rpm;	Delivery Detail:	30-40 days;
Voltage:	380V, 5OHZ, 3-PHASE, Customize;	Control type:	single head/multi-heads controlled,;
turning arm speed:	0-650rpm;	Packaging Detail:	Export Packing;
Place of Origin:	Shandong China (Mainland);	single ball weight:	50-750g;
Spool Capacity:	MAX 1000G;	speed adjusting:	frequency;

Product Description

Cotton Thread Ball Making Machine Split PP Raffia Yarn Ball Winder

The machine is suitable for winding different size of PP Split-film, flat yarn, cotton, jute, sisal into ball shape.

Features:
--Take up small space, simple structure
--Easy to operate and maintain

Detailed Images

Model 1: automatic ball winder machine

Features:

--The PLC control system makes it feeding automatically, break line automatically, unloading automatically, convey automatically, count automatically, yarn break stop automatically.
--automatic feeding
--automatic clipping
--automatic doffing
--automatic winding tension adjustment
--easy to operate and maintain
--reliable in continuous operation

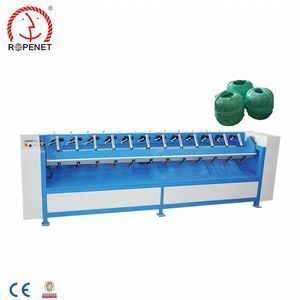

Model 2: 6/10/12 heads ball winder machine

Features:

--multi balls work at the same time
--PLC control, easy to operate
--count automatically
--different ball shape
--easy to maintain
--durable and stable

Model 3: 5 heads ball winder machine

Features:

--automatic weight counting
--single head single control
--shape various

Model 4: single head ball winder machine

Final products:

Technical Parameters

Model 1: automatic ball winder machine

MODEL	RMBL-80	RMBL-100	RMBL-120	RMBL-140
SIZE OF TWINE	0.8-2MM	0.8-2MM	0.8-2MM	0.8-2MM
DIA. OF BALL	40-80MM	60-100MM	80-120MM	100-140MM
WINDING SPEED	0-600RPM	0-600RPM	0-600RPM	0-600RPM
AIR PRESSURE	0.6-0.8MPA	0.6-0.8MPA	0.6-0.8MPA	0.6-0.8MPA
TOTAL POWER	2KW	2.2KW	2.5KW	3KW

Model 2: 6/12 heads ball winder machine

MODEL	RMBL-06	RMBL-12
NO. OF HEADS	6	12
FLYER SPEED	0-650RPM	0-650RPM
WINDING SPEED	5-70RPM	5-70RPM
SIZE OF NYLON BOBBIN	3127205MM	3127205MM
MAX. OUTLINE SIZE OF BALL	160*160MM	160*160MM
WEIGHT	370KG	520KG

Model 3: 5 heads ball winder machine

MODEL	RMBL-05
NO. OF HEADS	5
YARN WINDING MOTOR POWER	0.25KW
BALL WINDING MOTOR POWER	0.1KW
ANGULAR ADJUSTMENT MOTOR POWER	0.18KW
OPERATION	PLC CONTROL
MAX BALL WEIGHT	1000G

Packing & Delivery

Export packing: Normally plywood, container-shipping, also can as per client's requests.
