Plastic pipe or rubber hose winding machine/pipe rolling machine/pipe rolling machine
-
Supplier: Suzhou Caivi Plastic Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Annie Xu -
Price: $4000.00 / 1 - 2 sets
$3500.00 / >=3 sets -
Min. Order: 1 set
| application: | Winding tube | automatic: | 90% |
| Video outbound inspection: | if | Operation: | simple |
| Showroom location: | not any | Voltage: | 220V, 380V, 415V, 440V, 460V |
| Spool capacity: | 0-350mm | Core component warranty: | 1 year |
| Inner diameter range: | 200-400mm | type: | single station |
| strength: | 1500 | payment terms: | Letter of credit, wire transfer |
| Warranty: | 1 year | brand: | computer aided vision system |
| color: | client needs | Roll width: | 0-350mm |
| Supply capacity: | 30 high-efficiency plastic granulation machines per month | Mechanical test report: | if |
| Arrangement width: | 0-300mm | Other names: | Coiler |
| Outer diameter range: | adjustable | Dimensions (length*width*height): | 1600*1500*1600mm |
| Applicable industries: | manufacturing plant | Place of origin: | Jiangsu, China |
| kilowatt: | 1.5 | Main selling points: | Easy to operate |
| port: | Shanghai | weight: | 600kg,600kg |
| Packaging details: | standard packaging | product name: | Winding machine |
| Core components: | Gearbox, motor | Health status: | new |
| Suitable: | Plastic pipe or rubber hose |
Single station plastic pipe winding machine
Introduction to single station pipe winding machine:
The winding length of the plastic winding machine is longer than that of a single one.
Made of high-quality materials, the winding machine can work for a long time.
Plastic winding machines are mainly used to wind soft plastic pipes in production lines.
For wrapping plastic pipes
1. Use torque motor
2. Automatic pipeline displacement
Technical parameters of single station pipe winding machine:
|
Model |
Pipe diameter |
outer diameter Number of coils |
Roll width |
Winding speed |
the inside diameter of Number of coils |
moment engine |
|
SPS-32 Duplex Station |
16-32 |
800-1280 |
200-370 |
1-20m/minute |
480-800mm |
10N.M |
|
SPS-63 duplex position |
32-63 |
1400-2000 |
360-560 |
1-20m/minute |
600-1200mm |
25N.M |
|
SP-110 single station |
63-110 |
|
700 |
0.5-5m/minute |
2500-3500mm |
40Nm |

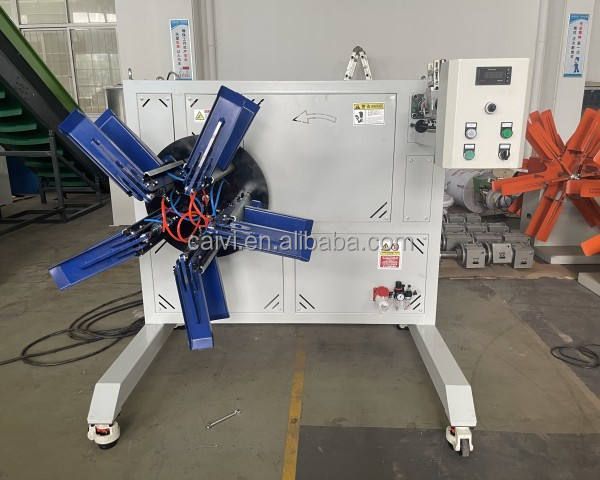

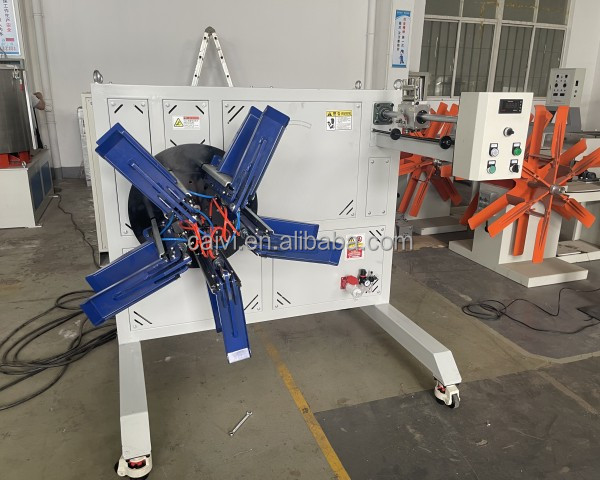

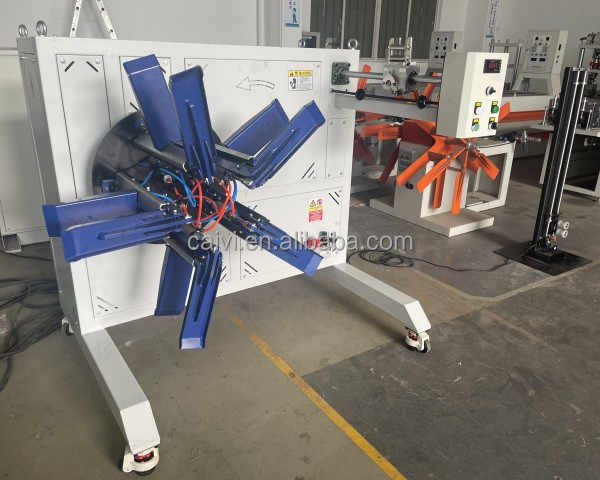

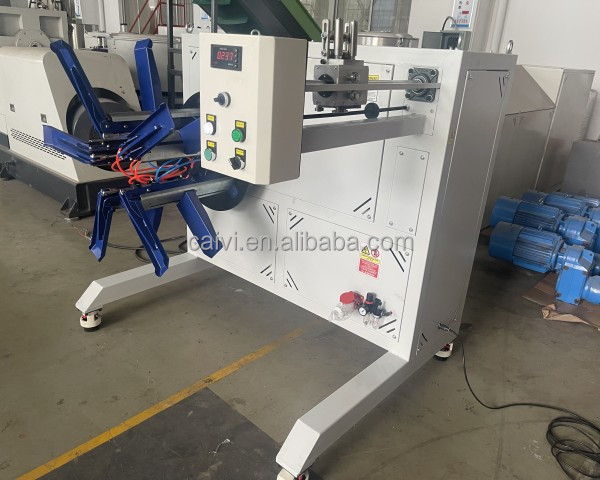

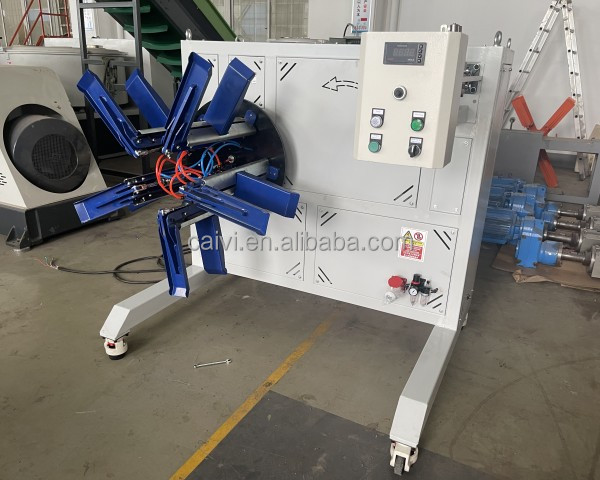

Single station pipe winding machine pictures:
Certification:
Exhibition:
Suzhou Caiwei Plastic Machinery Co., Ltd. is located in Suzhou City, Jiangsu Province, China. It is a manufacturer specializing in the production of plastic pipes, profiles and plastic recycling production lines. Our company is 130 kilometers away from Shanghai. Welcome to visit.
If you have any requirements, please feel free to contact us.
Mobile: 86-13222233923
-
