SPS Double Disk Winder garden hose pipe
- 5000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Brand Name: | CAIVI garden hose pipe winding machine; | Outside Diameter Range: | 1400-2000mm; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | size: | 2m*1m*1.5m; |
| Payment Terms: | L/C,T/T; | Power(W): | according to model; |
| Warranty Period: | 1 Year; | Inside Diameter Range: | 600-1200mm; |
| model: | SPS-63 double stations; | Packaging Detail: | in standard packaging garden hose pipe winding machine; |
| Model Number: | SPS-63 double garden hose pipe winding machine; | Certification: | CE,ISO9001:2000; |
| Dimension(L*W*H): | 2m*1m*1.5m; | Voltage: | 380V; |
| Arrange Width: | 360-560; | Port: | shanghai port plastic garden hose pipe winding machine; |
| OD range: | 1400-2000mm; | Supply Ability: | 30 Set/Sets per Month garden hose pipe winding machine; |
| Motor brand: | SIMENS; | certification: | CE ISO9001 2000; |
| Winding speed: | 1-20m/min; | Weight: | according to model; |
| Delivery Detail: | 7 wroking days garden hose pipe winding machine; | Warranty: | one year; |
| Color: | selectable; | Place of Origin: | Jiangsu China; |
| Application: | winding plastic pipes; | Condition: | New; |
| winder machine: | garden hose pipe winding machine; | inner dia: | 600-1200mm; |
| Spool Capacity: | 2; |
SPS Double Disk Winder garden hose pipe
Pipe Winder Description:
Used for winding plastic pipes
1. adopt torque motor
2. automatic pipe displacement
Technical Parameters of pipe winder:
Model | Pipe diameter | Outside diameter of coil | Coil width | Winding speed | Inner diameter of coil | Moment motor |
SPS-32 double stations | 16-32 | 800-1280 | 200-370 | 1-20m/min | 480-800mm | 10N.M |
SPS-63 double stations | 32-63 | 1400-2000 | 360-560 | 1-20m/min | 600-1200mm | 25N.M |
SP-110 single station | 63-110 | 700 | 0.5-5m/min | 2500-3500mm | 40N.M |

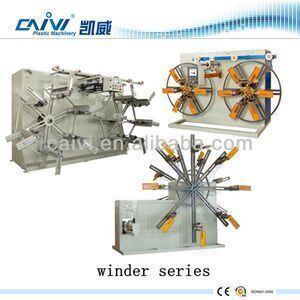

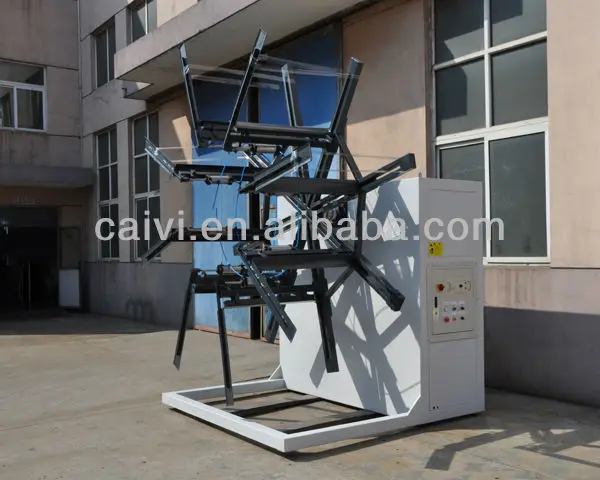

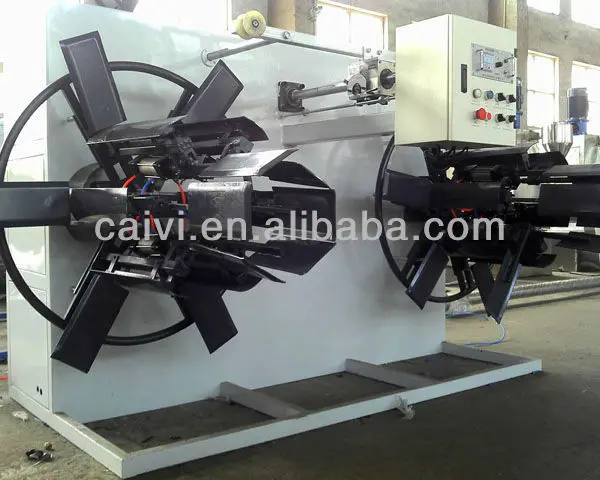

Pictures:
Exhibition show
Shipping
Our factory is about 130 kilometres from shanghai
Welcome to our factory
Any other question,contact us,please!
