Single Disc Plastic Pipe Winding MachineRod Type Winding MachinePipe Winding Machine
- 3500.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Key words: | Single Coil Tube Machine | Core component warranty: | 2 years |
| application: | Plastic small profile winding machine | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| payment terms: | L/C, T/T | Applicable industries: | Manufacturing plants, construction projects |
| Winding machine design: | Winding machine | operate: | 1 worker |
| Inner diameter range: | 16 | weight: | 230 kg |
| Showroom location: | Egypt, Canada, Turkey, United States, Italy, France, Philippines, Brazil, Peru, Mexico | Health status: | new |
| Outside diameter range: | 110 | Local service locations: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia |
| brand: | Air compressor | Supply capacity: | 50 sets per month |
| Warranty: | 2 years | Package preview: | |
| Marketing Type: | 2020 New Products | Material: | Sus304 stainless steel |
| Auxiliary machine: | fervent knife | Mechanical test report: | if |
| station: | winding machine | After-sales service provided: | Video technical support, online support |
| brand: | HYD | Origin: | Jiangsu, China |
| Rope Diameter: | 3-12mm | Torque motor: | 25N.M |
| Packaging Details: | PE packaging or fumigation-free wooden box packaging | Certification: | CE |
| automatic: | fully automatic | Spool capacity: | 50 |
| Dimensions (L*W*H): | 2500x1600x2300 | After Warranty Service: | Video technical support, spare parts, on-site maintenance and repair services |
| strength: | 25nm | port: | Shanghai Port, China |
| Voltage: | 380-440 | Video outbound inspection: | if |
| Main selling points: | easy to operate | Arrange width: | 40 |
Product Description

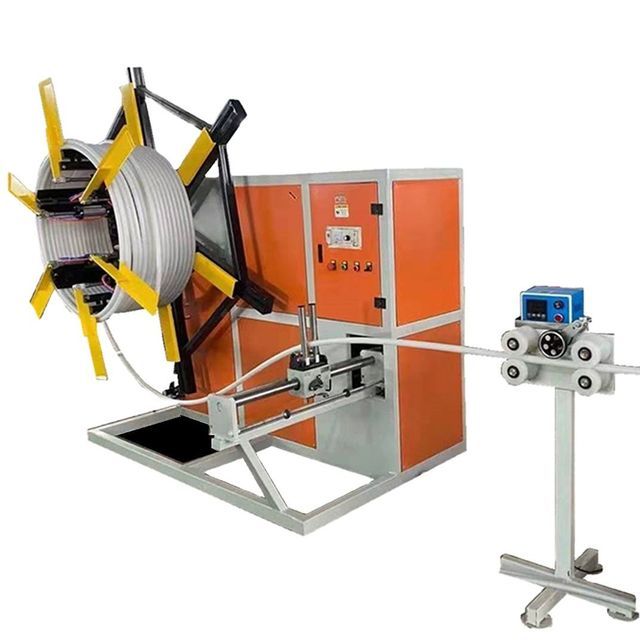

Plastic pipe winding machine
thisPlastic pipe winding machineIt is mainly used for winding and packaging of aluminum-plastic composite profiles and cross-linked composite profiles. Automatically adjust the winding speed and winding method. There are two discs for continuous winding. thisPP PE PVC profile winding machinePneumatic way. The rewinding wheel rib adopts pneumatic opening and closing. thisplastic wrapping machineEquipped with ray rack and automatic exhaust. thisSmall plastic profile coilerTo achieve an orderly liquidation. thisPP PE PVC profile winding machineCompact structure. It has a high degree of automation. It has beautiful appearance and convenient operation. 1. Adjustable winding speed and solid machine structure 2. Beautiful machine appearance, high quality machine, competitive price 3. 1 year warranty video 4. Long service life, easy to operate 5. ISO-9001

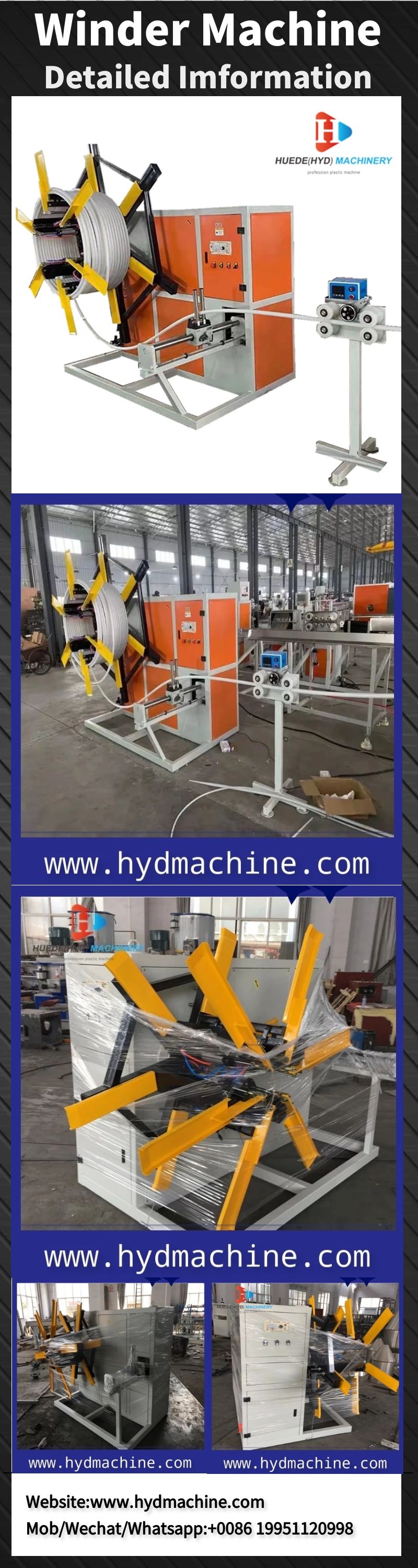

detailed picture
scope
Tube Rod Coiler | ||
Model | AW600 | |
Coil inner diameter | 550-1500mm | |
Winding speed | 0.5-40m/min | |
Winding Width | 300-500mm | |
pipe diameter | Ø16-110mm | |
air pressure | 0.6 MPa | |
torque motor | 25N.M | |
Gearbox | WPA120 | |
Cylinder model | SC 50×75 | |
clutch | M3-40A | |
winding displacement | GP40 | |
Dimensions (mm) | 2300×1550×2200 | |
weight | 800 kg | |
