Automatic steel wire rewinder take-up machine winding machine

Supplier: Laizhou Yirun Mechanical Co., Ltd.
Region: Shandong, China
Contact: Ms Tina Chu
Price: $1100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of origin:	Shandong Province, China	Warranty:	1 year
Spool capacity:	/	application:	yarn/rope
payment terms:	wire transfer	Core component warranty:	1 year
Voltage:	380/220V	Dimensions (lengthwidthheight):	806070cm
Applicable industries:	manufacturing plant	Marketing type:	normal product
After-sales service provided:	Video technical support	Post-warranty service:	Video technical support
weight:	200kg	Health status:	new
Packaging details:	Bare packaging or wooden pallets according to customer requirements	Arrangement width:	/
Video outbound inspection:	if	brand:	Yirun
Showroom location:	not any	strength:	4N.M
port:	Qingdao	Main selling points:	Easy to operate
Supply capacity:	100 sets per year	Mechanical test report:	not available
Core components:	engine	Inner diameter range:	20mm
Outer diameter range:	300mm	Certification:	CE
Local service locations:	not any

Automatic steel wire rewinder take-up machine winding machine

Winding machineRope winding machineWinding machine

Product Description

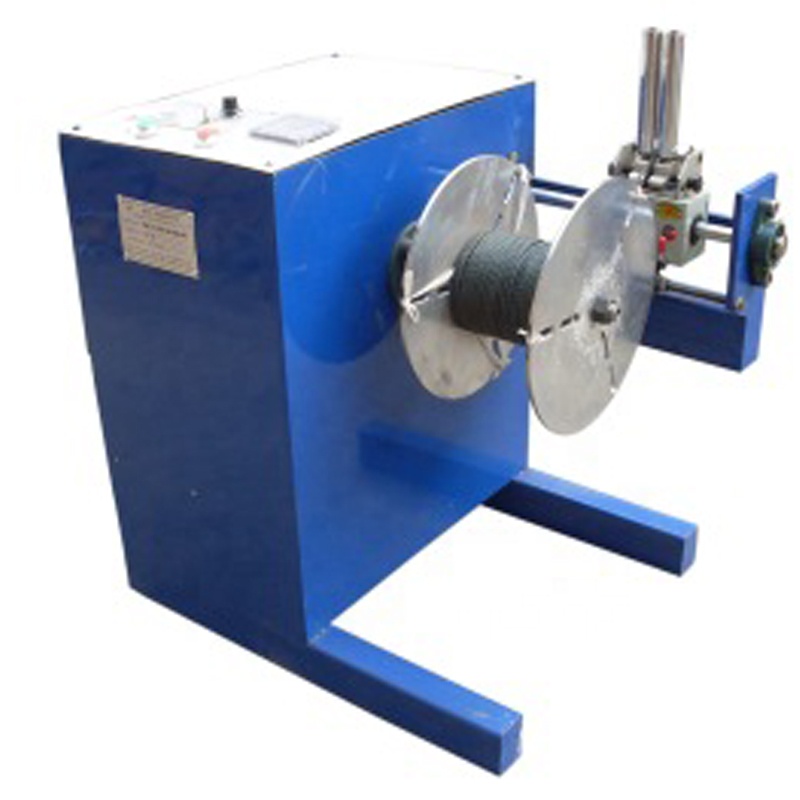

The rewinding machine is suitable for winding and forming of 2-20mm rope. The machine consists of three parts: meter counter, motor and linker. Can be used to roll large ropes into smaller rolls.

Or rewind small rolls of yarn into larger rolls. The machine uses ribbon cables, which can be adjusted at will according to different rope diameters. Using a meter counter,

The instrument can be set to automatically stop; using a torque motor, the operator can adjust the speed at any time and at will.

main feature

1) High production efficiency.

2) Easy to maintain.

3) Machine stability.

4) Set the circle length as needed and stop automatically when the number of meters is reached.

5) Easy to operate, easy to tie knots and change the number of turns.

FJJ-300 Rope Reeling Machine Specifications
aspect	length	rice	0.6
	width	rice	0.45
	high	rice	0.4
Main performance parameters	Torque	near infrared	4
	Rope diameter range	mm	3-8
	Maximum winding size	mm	300*200mm
