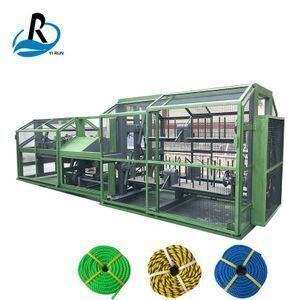

3 strands pet automatic pp plastic rope making machine

Supplier: Laizhou Yirun Mechanical Co., Ltd.
Region: Shandong, China
Contact: Ms Tina Chu
Price: $5300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	2t;	Twist direction:	s-z;
Place of Origin:	Shandong China;	Outside Diameter Range:	420mm;
Applicable Industries:	Manufacturing Plant;	Power(W):	5.5kw;
Twist mode:	Replace sprocket;	Condition:	New;
Voltage:	380/220v;	Spool Capacity:	25kg;
Packaging Detail:	Packing with wrapping film;	Winding speed:	20 m/min;
Speed control mode:	Frequency converter control;	Inside Diameter Range:	160mm;
Dimension(LWH):	5m1.8m1.85m;	After Warranty Service:	Online support,Spare parts;
Spindle speed:	800r/min;	Supply Ability:	100 Set/Sets per Year;
Wiring way:	bar gathering stand;	Arrange Width:	210mm;
Warranty:	1 Year;	Certification:	CE;
Local Service Location:	None;	twisted degree:	8-50twist/m;
Showroom Location:	None;	Rope diameter:	3-10mm;
Daily output:	500kg;	Port:	Qingdao;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Brand Name:	YiRun;
Key Selling Points:	Easy to Operate;	Application:	rope making;

3 strands pet automatic pp plastic rope making machine

Product Description

Product Application

Plastic rope making machine is a new type of rope making machine combining the two processes of wire making and rope making. It is suitable for the production of 3-30mm no-joint rope with plastic round wire, flat wire, single wire, cotton, hemp and other long fiber bundles as raw materials.M series two-in-one rope making machine has M33, M44, M55, M66, M77 and other specifications.

SPECIFICATION FOR M44-3 PLASTIC ROPE MAKING MACHINE
Dimension	Length	m	5
	Width	m	1.8
	Height	m	1.8
Main performance parameters	Rope diameter	mm	3-12
	Twisted degree	twist/m	16-62
	Rows of line width	mm	210
	Inside diameter range	mm	160
	Outside diameter range	mm	420
	Bobbin capacity	kg	25

Main Features

1) From the beginning to the completion of the rope

2) Inverter drive, supporting meter, set the number of meters can be automatically shut down, supporting stroke switch, using the secondary start mode, door automatic power cut.

3) Adjustable twist,Strong stability, low energy consumption, low noise, convenient maintenance.

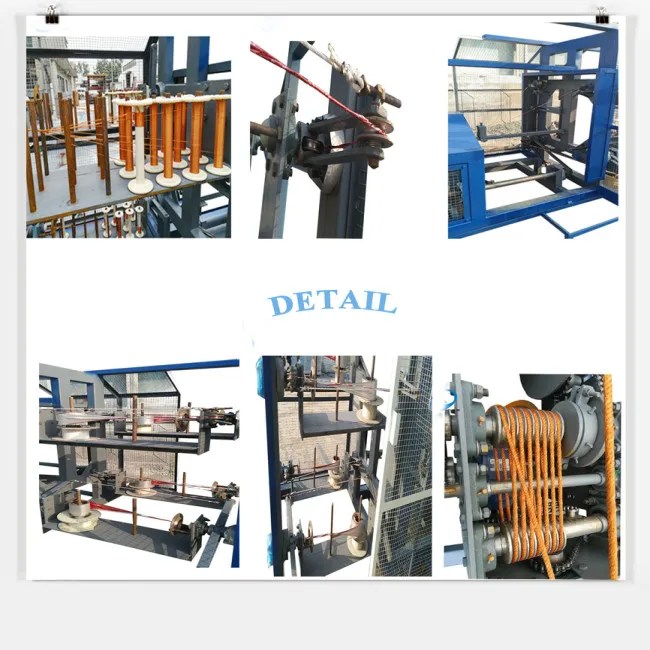

Detailed images

Company Information

Hot sale link list

Various product links

Building line drawing machine

Blown film production line

Twisting machine

Curly wire drawing machine

Plastic rope making machine

PP PE yarn making machine

Baler twine making machine

Tearing film making machine

Artificial grass yarn drawing machine

Linen wire drawing machine

PET brush filament making machine

Trimmer line drawing machine

Fishing line drawing machine

Fishing net yarn making machine

PET monofilament making machine

PET yarn making machine

Nylon yarn making machine

Plastic rope making machine

Tonnage bag yarn making machine

Spooling machine

4 spindles balls winder machine

10 spindles balls winder machine

Rope coiling machine

PP single filament making machine

Woven ban flat yarn making machine

Sunshade net yarn making machine

Hot product

FAQ

(1).Q: Can we send sample for customizing the machine?

A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.

(2).Q: If we have problem on machine or production, can you help us?

A: Yes, no problem.

We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.

(3).Q: How can I get the price, photos and video about the machine?

A:You can contact me online or send an inquiry. Please provide your request details as clearly as possible. So we can send the price to you as soon as possible. For design or further discussion, we can all receive QQ, wechat,Skype or other instant methods to avoid any delay. We can provide you with all the details of our machines. We can manipulate the video for you if you need it.Of course, you can also visit our factory.

(4).Q: Why choose us?

A: 1.We are an exporter of professional wire drawing machine and rope machine factory
2. We have rich experience for chemical and plastic machinery more than 20 years.
3. Our quality is praised by our customers and we provide very competitive price for you.
4. We will provide service for the machine all the time.

Packaging & Shipping

Our Services

SERVICE

1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. The buyer have to pay the salary , and the air ticket, accommodation,
3. Meals and some related fees should be your responsibility.
4. It is in same condition if the buyer need the seller to send the interpreter.

GUARANTEE

1. Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free.
2. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
3. The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge
