PET broom extruder machinery / PET monofilament production line
-
Supplier: Laizhou Yirun Mechanical Co., Ltd. -
Region: Shandong, China -
Contact: Ms Tina Chu -
Price: $30000.00 /set -
Min. Order: 1 set
| Winding bobbins: | 2; | Supply Ability: | 100 Set/Sets per Year; |
| The screw material: | 38CrMoALA; | Automatic Grade: | Automatic; |
| Screw Design: | Single-screw; | Dimension(L*W*H): | 16*2*2.5m; |
| Warranty: | 1 year; | Weight: | 2.5T; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Reducer model: | 200; |
| Certification: | CE; | Hot Water Tank Heating Power: | 16KW; |
| Port: | Qingdao; | Motor power of extruder: | 30KW; |
| Place of Origin: | Shandong China (Mainland); | Power(W): | 70KW; |
| After-sales Service Provided: | Field installation, commissioning and training; | Warranty: | 1 Year; |
| Voltage: | 380/220V; | Brand Name: | YiRun; |
| Packaging Detail: | Baremetal delivery, Winding film packaging of key parts for PET broom extruder machinery / PET monofilament production line; | Daily output: | 1.5 Tons/day; |
| Application: | Wire; | Condition: | New; |
| Screw diameter: | 65mm; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Plastic Processed: | PET; |

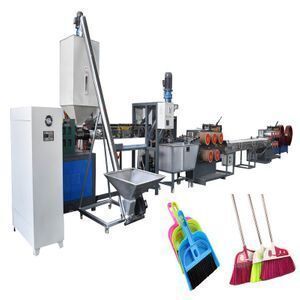

PET broom extruder machinery / PET monofilament production line
Product Application
Broom filament making machine is our developed and upgraded machine which is used for making all kinds of hollow or solid round wire with the material of PP, nylon, PET, or PE etc. The finished products with high strength can be made for broom wire ,toothbrush wire or other kinds of brush wire.

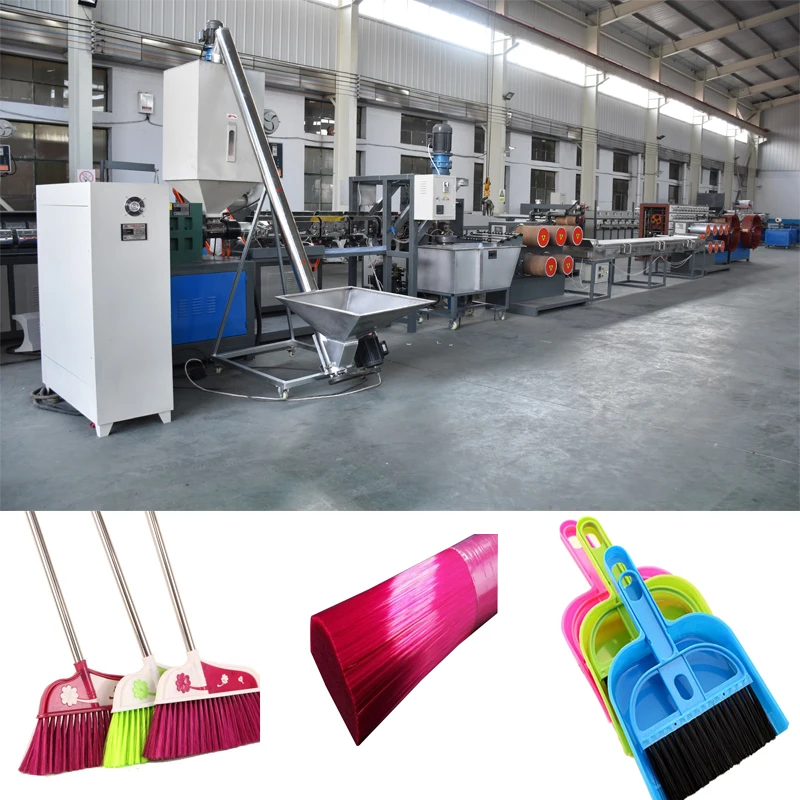

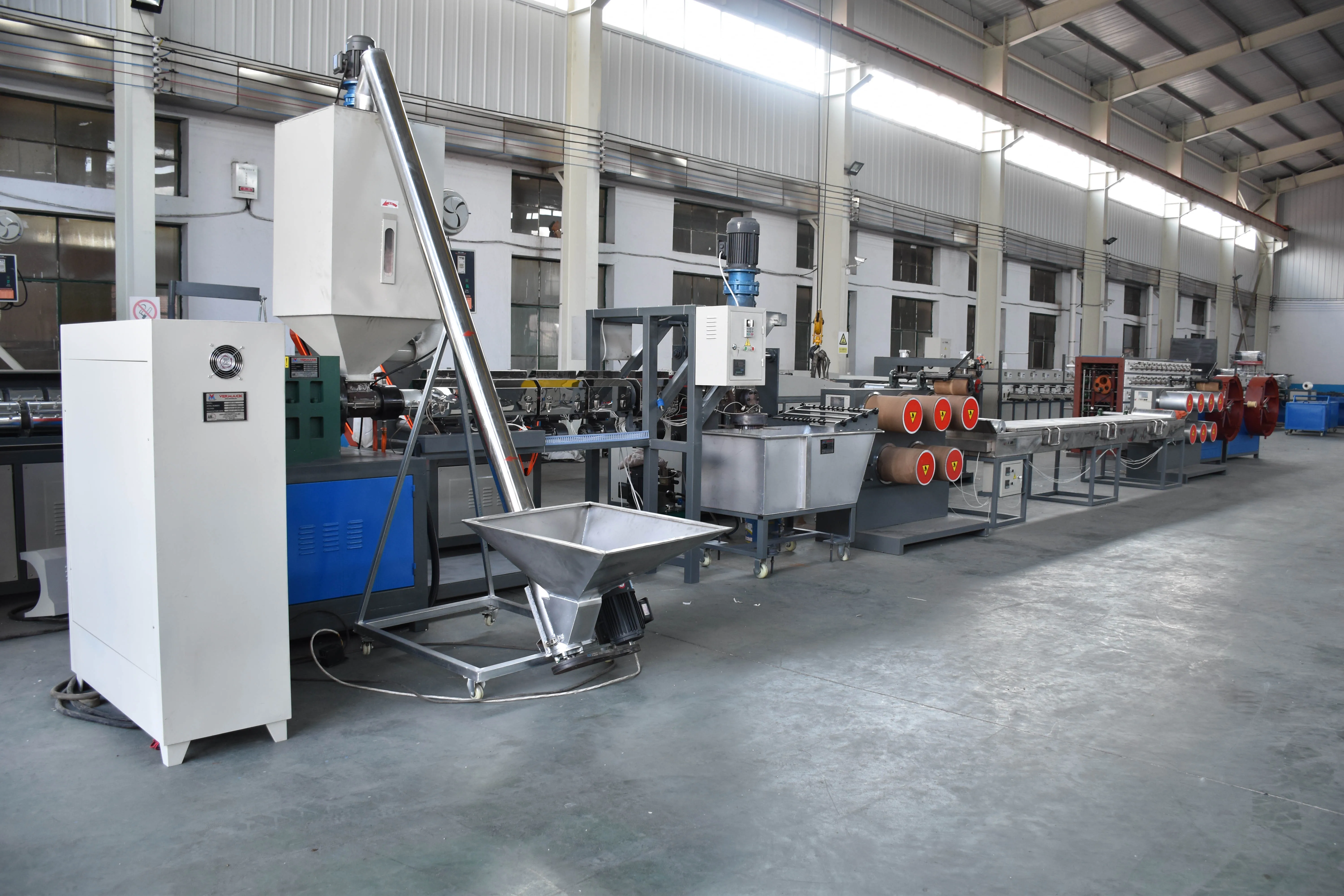

This machine unit includes extruder, mould, cold water tank, traction engine (No.1), hot water tank, traction engine (No.2), oil tank, array wire machine, frame winding and electronic controller box etc.
Features
1.Using the high strength alloy steel screws,has good plasticizing effect,extrusion amount evenly,corrosion resistance,resistance to wear,etc
2.The novel die structure ,mesh and convenient to replace heart-resisting alloy spinneret,nozzle size is united.
3.The roder tractor linkage equipment ,implement two step regulating speed.
4.Cold hot water tank is made by stainless steel,never rust.
5.Box type winding by lorque electric receive a volume.Using polished rod line silk, winding steady low noise,energy saving,good reliability.
⇒
| SPECIFICATION FOR PET-SS-80 PET WIRE BRUSH MAKING MACHINE | |||
| Power | Main engine heating power | kw | 40 |
| Hot flume heating power | kw | 18 | |
| Extruder power | kw | 30 | |
| Main performance parameters | Production capacity | t | 2 |
| Screw diameter | mm | 80 | |
| Reduction model number | / | 225 | |
| Dimensiom | Length | m | 18 |
| Width | m | 2 | |
| Height | m | 2.5 | |
SERVICE
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. The buyer have to pay the salary , and the air ticket, accommodation,
3. Meals and some related fees should be your responsibility.
4. It is in same condition if the buyer need the seller to send the interpreter.
GUARANTEE
1. Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free.
2. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
3. The price does not include the charge of installation, the buyer will need to pay for the charge of visa, the air ticket, the accommodation and traffic charge in buyer's country.
Various product links | |
Building line drawing machine | Blown film rope production line
|
Twisting machine
| Curly wire drawing machine
|
Plastic rope making machine | PP PE yarn making machine
|
Baler twine making machine
| PP rope making machine
|
Artificial grass yarn making machine
| PP packing belt making machine
|
PET brush filament making machine
| Trimmer line drawing machine
|
Fishing line drawing machine
| Fishing net yarn making machine
|
PET monofilament making machine
| PET yarn making machine
|
Nylon yarn making machine
| PET strap making machine
|
Tonnage bag yarn making machine
| Spooling machine
|
4 spindles balls winder machine | 10 spindles balls winder machine
|
Rope coiling machine
| PP single filament making machine
|
Woven ban flat yarn making machine
| Sunshade net yarn making machine |
(1).Q: Can we send sample for customizing the machine?
A: No problem, you can send us samples, and our engineer will recommend and customize the machine according to your product and other demand.
(2).Q: If we have problem on machine or production, can you help us?
A: Yes, no problem.
We offer the Preventative Maintenance and After Sales Service. We test the machine before delivery. We offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. If there is problem in using, you can tell us. Our engineer team will do best to help you solve the problem. Our engineers can go to your factory and help you solve the problem. We provide longlife service for the machine.
(3).Q: How can I get the price, photos and video about the machine?
A:You can contact me online or send an inquiry. Please provide your request details as clearly as possible. So we can send the price to you as soon as possible. For design or further discussion, we can all receive QQ, wechat,Skype or other instant methods to avoid any delay. We can provide you with all the details of our machines. We can manipulate the video for you if you need it.Of course, you can also visit our factory.
(4).Q: Why choose us?
A: 1.We are an exporter of professional wire drawing machine and rope machine factory
2. We have rich experience for chemical and plastic machinery more than 20 years.
3. Our quality is praised by our customers and we provide very competitive price for you.
4. We will provide service for the machine all the time.
-
