Full automatic pvc pipe belling machine / pipe expanding machine
- 2000.00 set
| After-sales Service Provided: | Engineers available to service machinery overseas; | Processing Type: | Pipe Belling Machine; |
| Packaging Detail: | In standard package.; | Voltage: | according to model; |
| Electric controller: | PLC; | Heating method: | electric heating; |
| Color: | selectable; | Warranty: | 1 Year; |
| Belling type: | U R type; | Payment Terms: | L/C,T/T; |
| Application: | pipe belling; | Place of Origin: | Jiangsu China; |
| Weight: | according to model; | Performance: | steady and reliable; |
| Supply Ability: | 7 Set/Sets per Month; | Condition: | New; |
| Certification: | CE,ISO9001:2000; | Brand Name: | CAIVI-PVC pipe belling machine; |
| Max power: | 36kw; | Certification: | CE; |
| Dimension(L*W*H): | 7290x2000x1540; | Product Type: | Plastic Pipe; |
| Port: | Shanghai Port; | Power(W): | 5-36kw; |
| Shipping method: | ocean shipping; | Delivery Detail: | pipe belling machine:30working days after receving the deposite.; |
Full automatic pvc pipe belling machine / pipe expanding machine
Features of PVC pipe belling machie:
1.SGK series FullAuto Pipe Belling machine with hauling device and program interface concerned is used with extruding machine. It is also used solitarily.
2. While expanding pipes, the machine adopts translation. The action is steady and correct. It does not damage pipes.
3. The machine adopts electric heating type. Each oven is equipped with heating core. The shaping method adopts expandingend shaping. The size of pipe mouth is correct. On its panel, there is a transfer switch for belling solvent type socket (Straight port) and seal loop type pipe socket( R type). The choice of expanding pipe types is very convenient.
4.The technological adaptability is strong. All the key electric control elements are imported.
Technical Parameters:
Model | GSKS63 | GSK250 | GSK315 | GSK400 | GSK710 | GSKB250 |
Diameter range | 20-63mm | 63-250mm | 110-315mm | 160-400mm | 315-710mm | 63-250mm |
Expanding Ways | Double tube flaring | Vacuum setting | Vacuum setting | Vacuum setting | Vacuum setting | Vacuum setting |
Cooling ways | Air-cooled or water cooled | water cooled | water cooled | water cooled | water cooled | water cooled |
Heating power bit | 2 | 2 | 1 | 1 | 1 | 1 |
Heating Power | 4 kw | 4 kw | 7.2 kw | 15.6 kw | 25.4 kw | 24 kw |
Total power | 5.53 kw | 10.1 kw | 12.1 kw | 22 kw | 36.2 kw | 25 kw |
Dimensions | 7290x2000x1540 | 7290x2000x1540 | 7590x2200x2280 | 7590x2300x2280 | 7590x2350x3100 | 7290x2000x1740 |

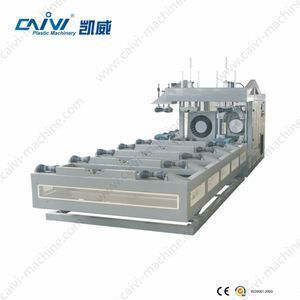

Pictures of PVC pipe belling machine:
If you want more information about PVC pipe belling machine, please contact me!
Our company is near Shanghai, about 130km. Welcome to our factory anytime!
