PVC plastic pipe flaring/flaring/socketing machine
- 5000.00 1 - 1 sets
- 4500.00 2 - 3 sets
- 4000.00 >=4 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply capacity: | 10 sets per month | Core components: | motor |
| Power (kW): | 27 | Certification: | ce |
| application: | make plastic pipe | Voltage: | customer request |
| Main selling points: | easy to operate | port: | Shanghai port |
| Mechanical test report: | if | payment terms: | L/C, T/T |
| Marketing Type: | New Products 2020 | Showroom location: | Egypt, France, Germany, Peru, Indonesia, Morocco, Argentina, Romania, none |
| weight: | 2000 | place of origin; place of origin: | Jiangsu, China |
| Applicable industries: | Hotels, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use | brand: | Huade Machinery |
| Tube: | Polyvinyl chloride Polypropylene Polyethylene PPR | Product Category: | plastic pipe |
| Dimensions (L*W*H): | customer request | State of health: | new |
| After-sales service provided: | On-site installation, commissioning and training | Processing type: | Pipe Flaring Machine |
| usage: | multiple usage | Local service location: | Ukraine |
| Video shipment inspection: | if | Core component warranty: | 1 year |
| product name: | Tube machine | Package preview: | |
| Warranty: | 1 year |

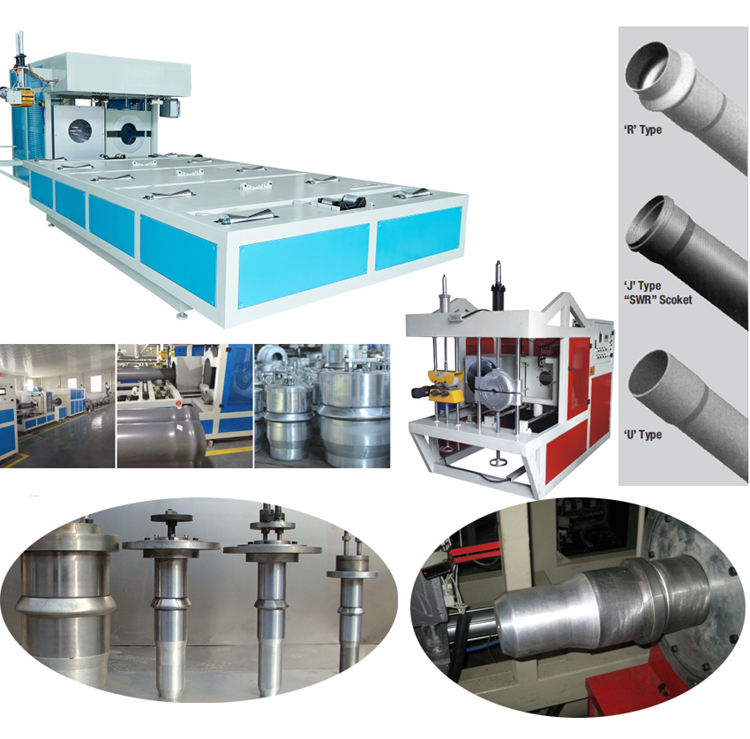

PVC plastic pipe flaring/flaring/socketing machine
PVC plastic pipe flaring/flaring/socketing machine
Applications
The equipment adopts pneumatic headstock structure and tailstock structure, and all mechanical parts are made of new high-quality steel. Bearings are of well-known brands. The head frame is composed of a feeding device, a heating furnace and an enlarged working space. The furnace body is made of stainless steel for heating. The furnace body is equipped with its own unique temperature control system and adopts a special vortex structure so that the tube can be heated and rotated left and right to make the tube The surface expands to achieve uniform heating. The tailstock is made of a platform next to the electric body. The furnace temperature control system is controlled by an intelligent temperature control meter, and the pneumatic and hydraulic components are all domestic famous brand products. All actions of equipment operation and circle expansion are automatically controlled by PLC controller.
1. Pipe diameter (mm): 16~75mm, 50~160mm, 50~250mm, 110~315mm, 315~630mm.
2. Flaring form: R type and U type.
3. The shaping method adopts in-mold boosting and die-out boosting to set the shape.
4. Adopt PLC control.
5. Electrical components: Siemens, Delta.
Suitable for R-shaped, U-shaped and rectangular plastic pipes
The equipment adopts pneumatic headstock structure and tailstock structure, and all mechanical parts are made of new high-quality steel. Bearings are of well-known brands. The head frame is composed of a feeding device, a heating furnace and an enlarged working space. The furnace body is made of stainless steel for heating. The furnace body is equipped with its own unique temperature control system and adopts a special vortex structure so that the tube can be heated and rotated left and right to make the tube The surface expands to achieve uniform heating. The tailstock is made of a platform next to the electric body. The furnace temperature control system is controlled by an intelligent temperature control meter, and the pneumatic and hydraulic components are all domestic famous brand products. All actions of equipment operation and circle expansion are automatically controlled by PLC controller.
1. Pipe diameter (mm): 16~75mm, 50~160mm, 50~250mm, 110~315mm, 315~630mm.
2. Flaring form: R type and U type.
3. The shaping method adopts in-mold boosting and die-out boosting to set the shape.
4. Adopt PLC control.
5. Electrical components: Siemens, Delta.
Suitable for R-shaped, U-shaped and rectangular plastic pipes
Model | Diameter (mm) | way to heat up | Heating power (kw) |
SGK75 | 16-75 years old | electro-thermal | 10.5 |
SGK160 | 50-160 | electro-thermal | 12 |
SGD 250 | 50-250 | electro-thermal | 18 |
SGK315 | 110-315 | electro-thermal | twenty two |
SGK630 | 315-630 | electro-thermal | twenty four |

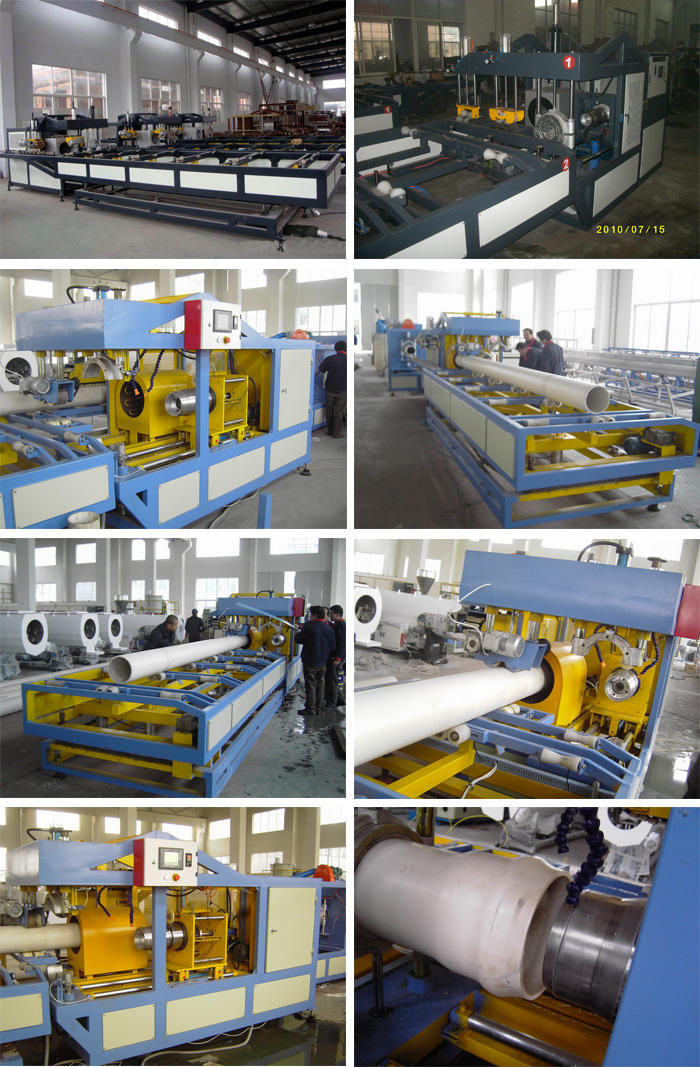

PVC plastic pipe flaring/flaring/socketing machinephoto
related product recommendation

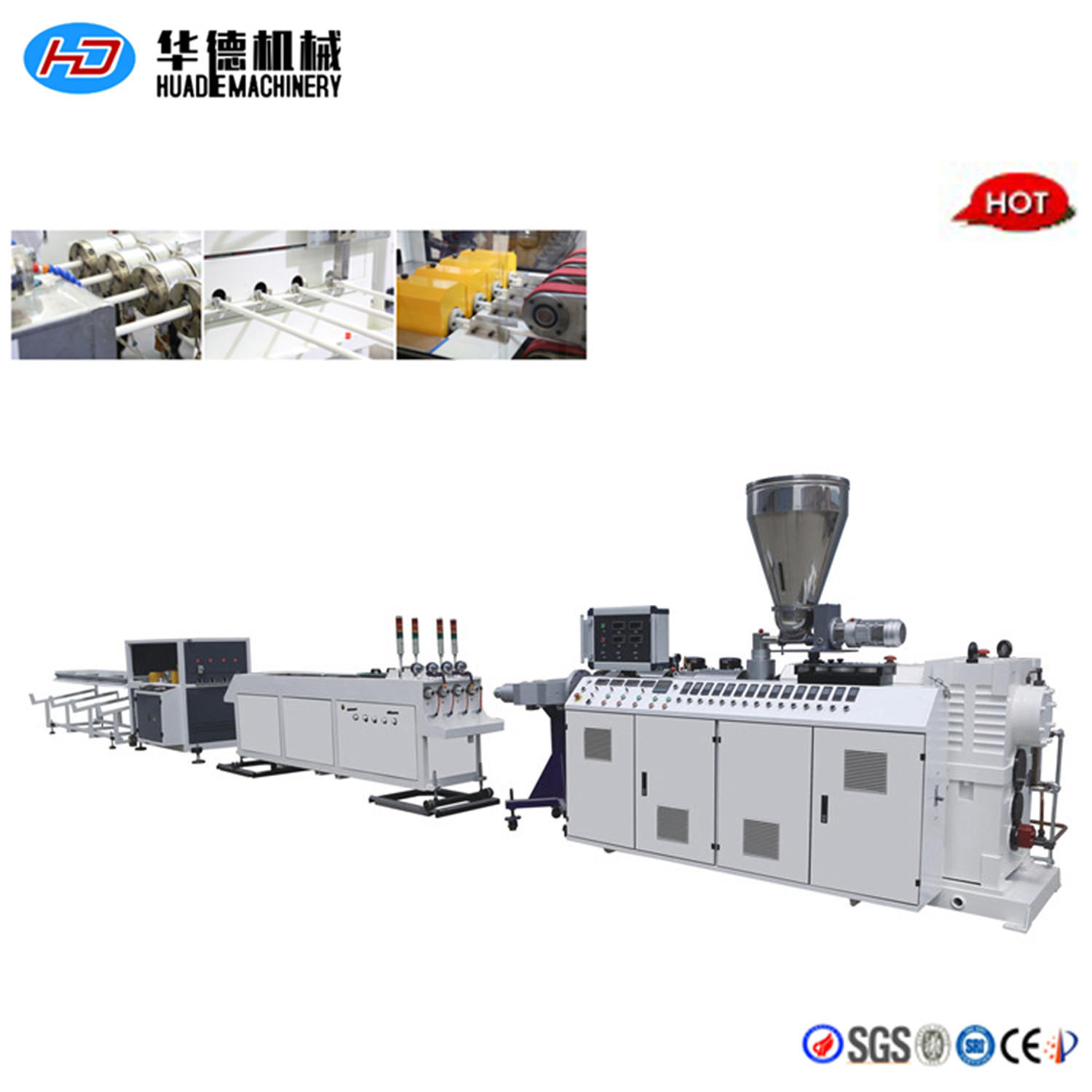

ISO certified PVC four-pipe extrusion production line/2020 China PVC pipe making machine

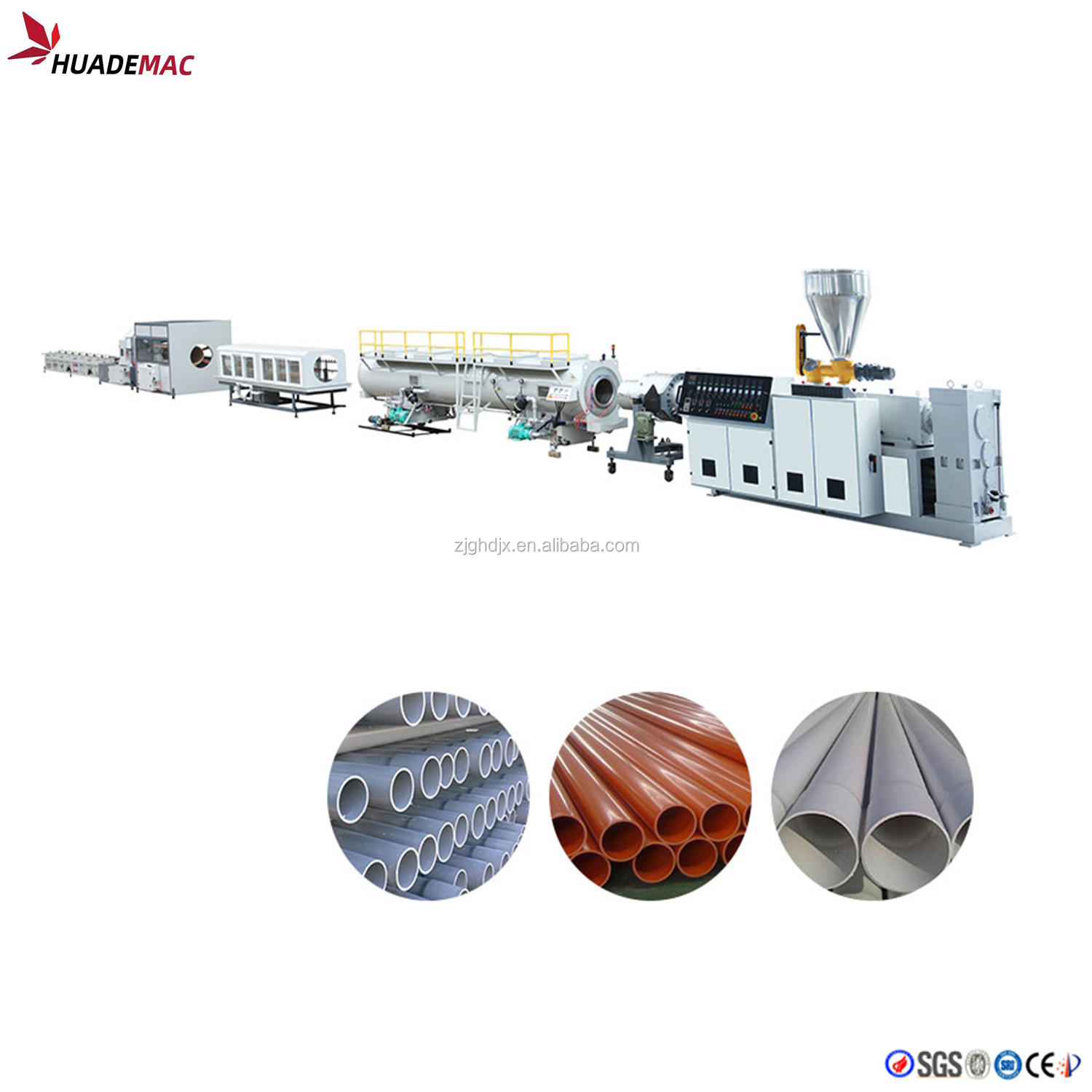

200-400mm PVC pipe extrusion line passed ISO certification / PVC pipe making machine passed CE certification

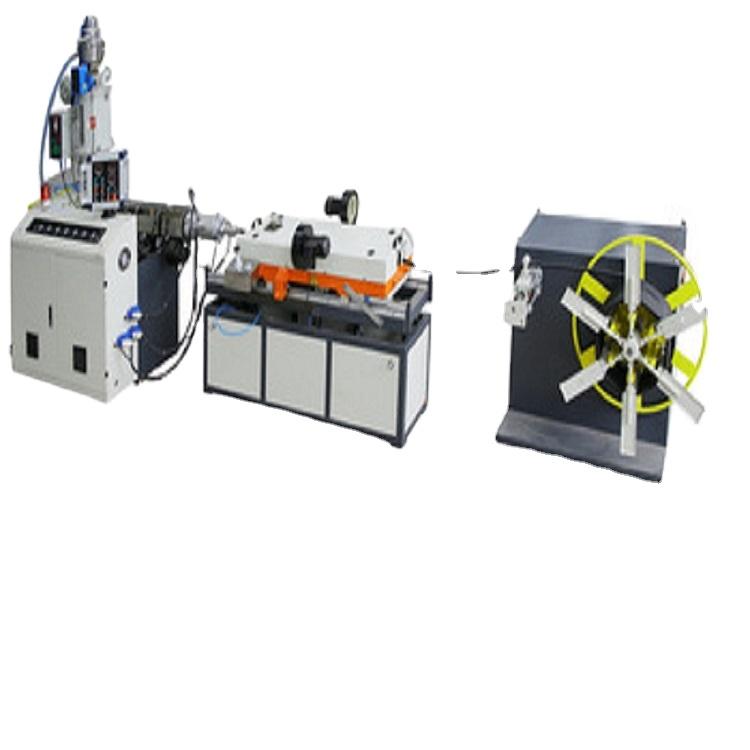

PE PP Single Wall Corrugated Pipe Extrusion Line
SRL-Z series hot/cold combination mixer

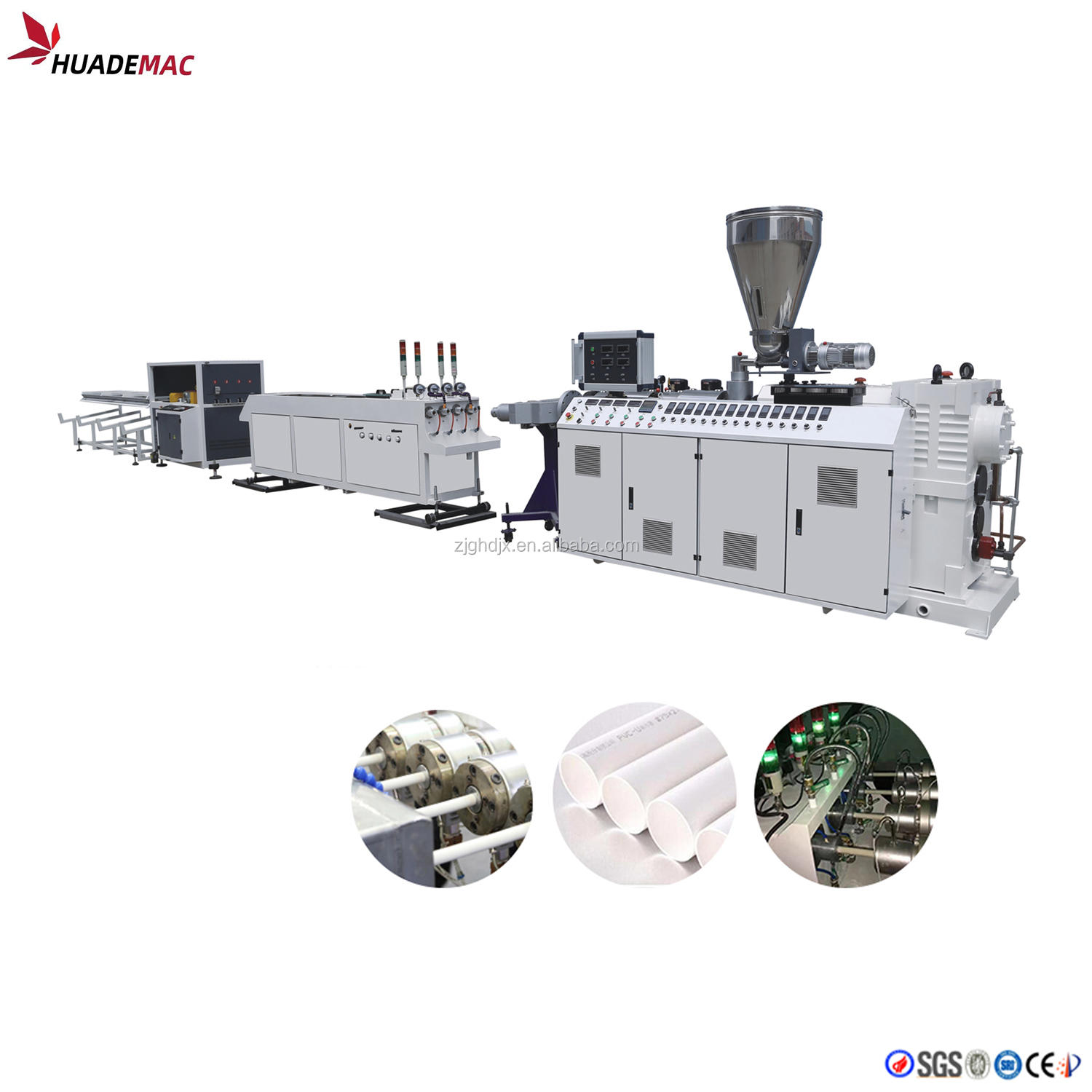

Hot sale professional plastic 16-32mm four cavity PVC pipe extrusion line
