Brand new manufacturing CE certificate plastic PVC HDPE PPR pipe tractor

Supplier: Zhangjiagang Huade Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Erika QIAN
Price: $6000.00 / 1 - 2 sets
$5500.00 / 3 - 4 sets
$5200.00 / 5 - 7 sets
$5000.00 / >=8 sets
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Video outbound inspection:	if
brand:	HDJX	Packaging details:	Standard seaworthy packaging.
Core components:	Bearings, motors	product name:	plastic tractor
port:	Shanghai	usage:	Plastic pipe tractor
Core component warranty:	1 year	Dimensions (lengthwidthheight):	3800X2200X2250MM
Place of origin:	China	Voltage:	380V
Main selling points:	Easy to operate	payment terms:	L/C, D/P, wire transfer
Applicable industries:	Hotels, building materials stores, manufacturing plants, food and beverage factories, farms, restaurants, home use	weight:	4400
Belt tractor:	Plastic product transportation	Mechanical test report:	if
Certification:	CE	Supply capacity:	20 sets of PVC pipe extrusion production lines per month
Product Category:	plastic pipe	Caterpillar material:	rubber bricks
Showroom location:	Canada, France, Saudi Arabia, Pakistan, Spain, Kenya, South Korea, Algeria, South Africa	Warranty:	1 year
Processing type:	tractor	application:	PP PE PVC pipe
Pulling method:	rubber traction	Package preview:

Product Description

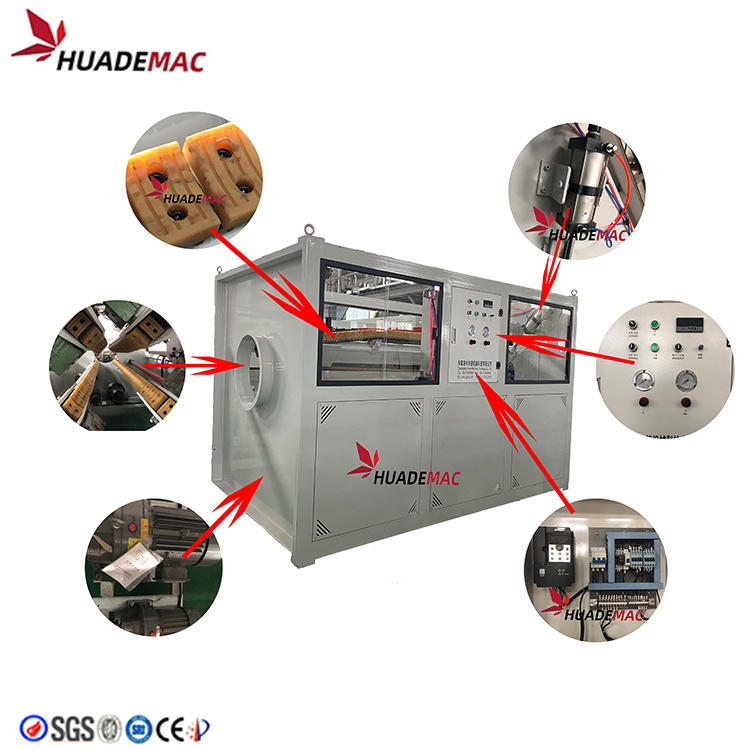

Caterpillar towing
Depending on the pad type, the double crawler pull unit can be used for pipes or profiles.

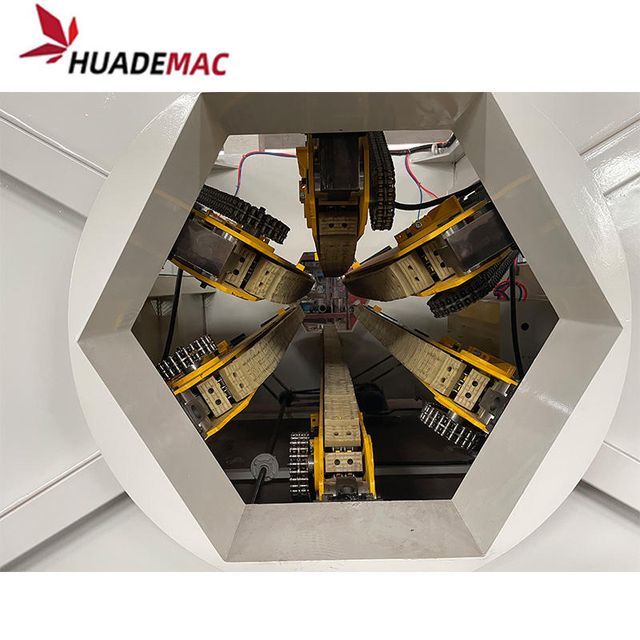

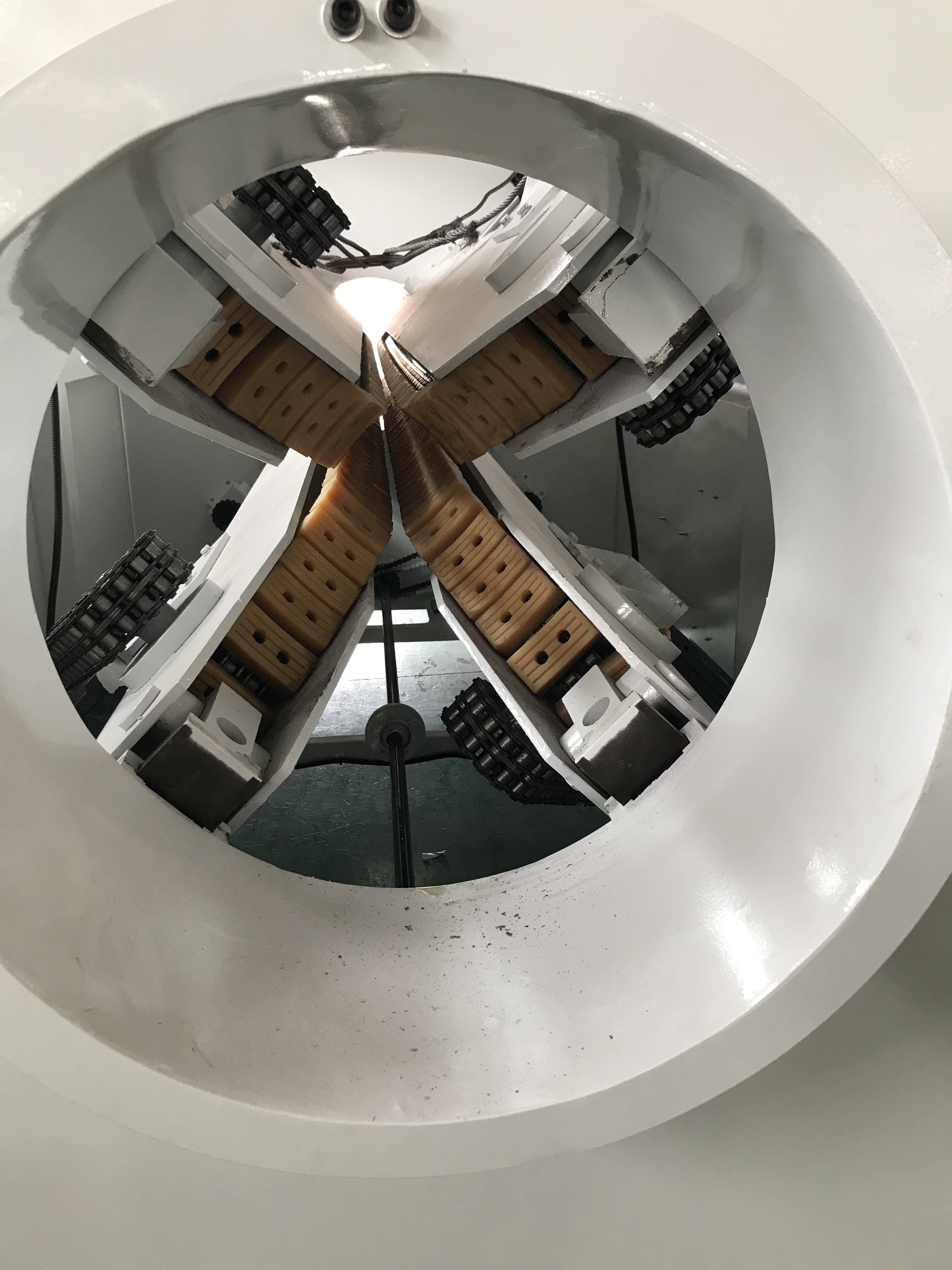

Pipe take-off uses multiple crawler-type traction devices.

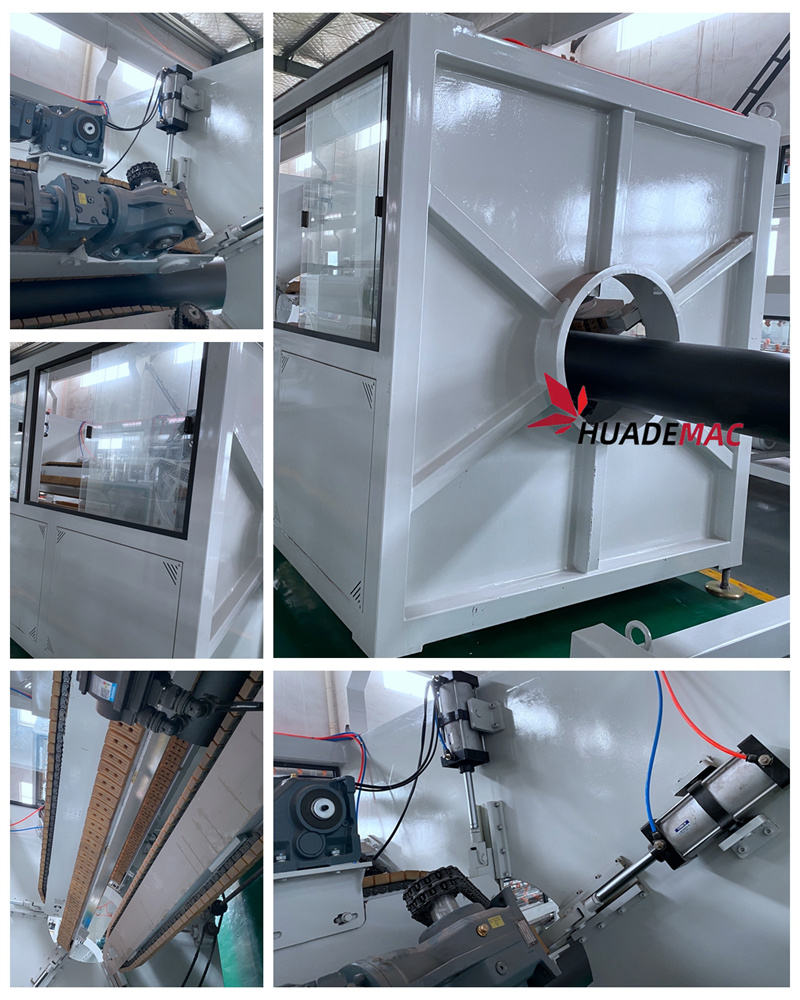

The lower track frame is manually adjusted, and the upper track frame is suspended.
Pneumatic adjustment.

Specification

Model	Belt type	2 claws	3 claws	4 claws	4 claws	6 claws	8 claws
Pipe diameter (mm)	16-63	16-63	32-125	50-250	90-450	250-630	450-800
Traction power(kw)	1*2.2	2*2.2	0.75*3	4*1.1	4*1.1	6*1.1	8*1.1
Effective length of crawler track (mm)	800	1000	1200	1400	1600	1600	2000
Towing speed	20	20	8	4	2	1.5	1.5

feature:

Each track chain is independently driven
Adopts AC motors and vector drives (eliminating wear-prone transmission components - minimum maintenance and maximum reliability);

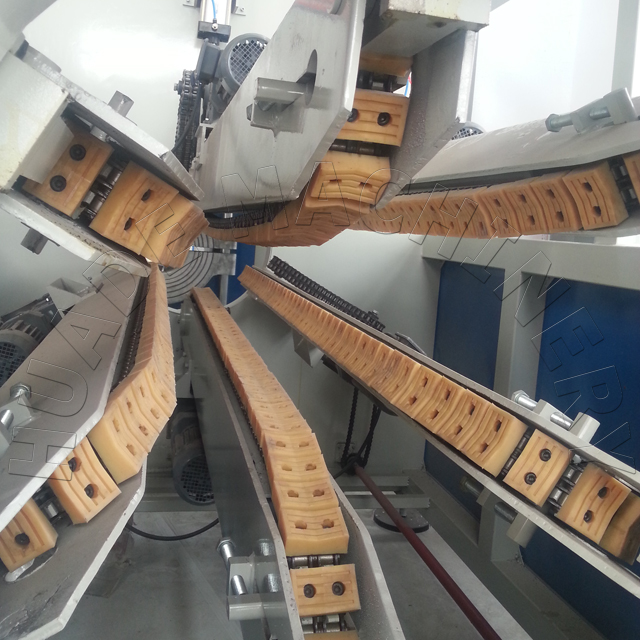

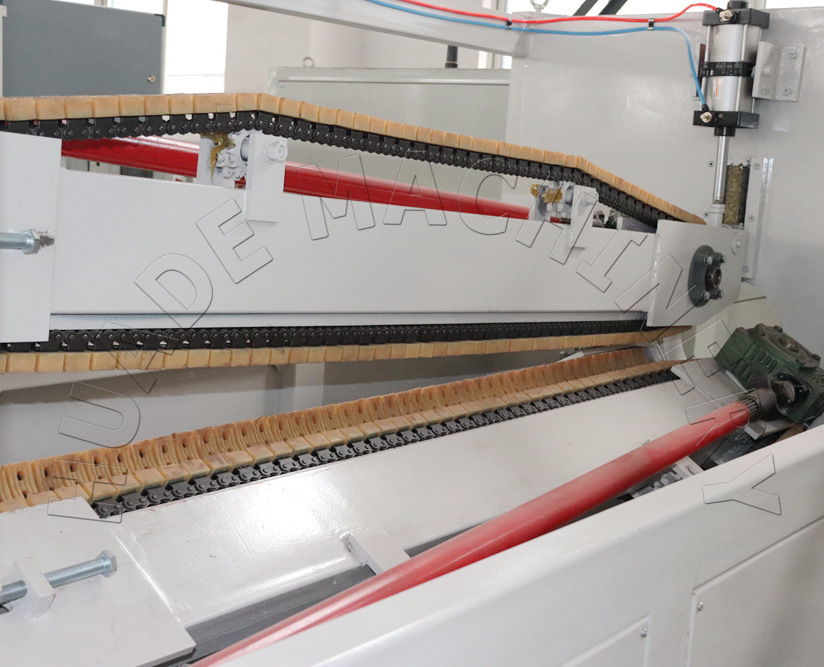

All track chains are tension and consist of rubber blocks specially shaped to obtain maximum surface contact with the pipe;

Automatic or manual tensioning of track chains;

The track chain has a longer contact length with the pipe to achieve maximum traction even with minimal pressure from the track chain;

Sync with any type of extruder.
