Automatic plastic rubber block hauler plastic pipe hauler

Supplier: Zhangjiagang Huaming Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Steven Chen
Price: $2500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Packaging Details:	Standard export packing - wooden case
Marketing Type:	normal product	After-sales service provided:	Engineers can provide overseas service machinery, video technical support, on-site installation, commissioning and training
Video shipment inspection:	if	brand:	Hua Ming
Health status:	new	Voltage:	380V/Customized
Applicable industries:	manufacturing plant	Main selling points:	long lasting
Processing type:	traction machine	weight:	300-3500kg
Processing type:	Tractor	payment terms:	wire transfer
Core components:	engine	Supply capacity:	5 tractors per month
Warranty:	1 year	port:	Shanghai Port
Dimensions (LWH):	based on	Showroom location:	not any
After warranty service:	Video technical support, online support	Product Category:	Tube Profile Sheet
strength:	0.75-15kw	Core component warranty:	1 year
category:	Plastic Products Manufacturing Machinery	Certification:	ce
Local service location:	not any	Origin:	Jiangsu, China

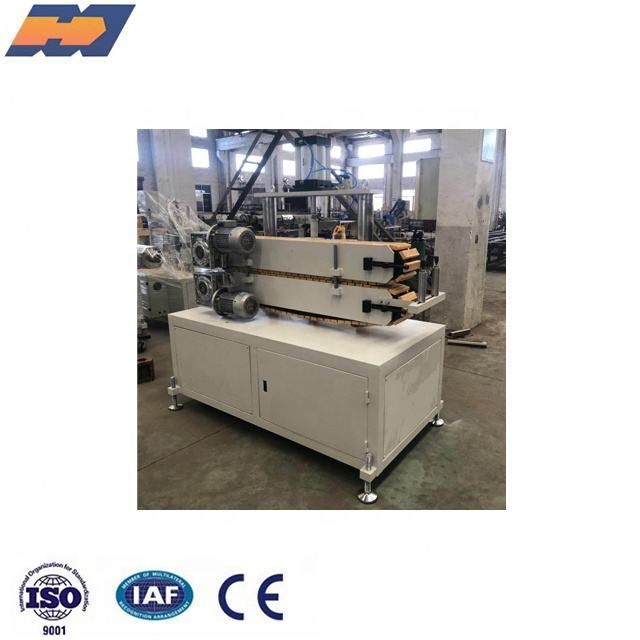

Fully automatic high-speed plastic rubber block tube tractor

application:
DY series tractors are rubber block crawler tractors, which adopt double crawler traction. DY-D series tractors are plastic profile rubber belt tractors. Double rubber belt traction method is adopted. These two series are used together with plastic extruders to pull plastic pipes, plastic hoses and various plastic profiles. It has a wide range of applications and is easy to operate. Our tractors can be driven in many different ways to meet the requirements of almost any extruded product. It is the necessary auxiliary equipment for plastic extrusion processing.
Features:

1. It adopts double crawler traction mode, which has a wide range of applications;
2. Wide range of speed regulation, stepless speed regulation is adopted;
3. Uniform traction speed;
4. Low noise;
5. Compact structure and beautiful appearance;
6. An optional coding length measuring device is available for accurate measurement. Main Specifications:

Main technical standards:

Model	DYC1	DYC2	DYC3
Tensile speed: m/min	1-10	0.5-0.5	0.5-2
paper height	950-1100	950-1100	950-1100
pull	2.2	4	5.5
physical dimension	1800x885x1720	2800x1015x1720	3200x1300x1750

Model	DY-600D	DY-1	DY-2	DY-3	DY-3A
Tensile speed (m/min)	0.3-10 (customized)			0.4-5	0.3-5
maximum. Drawing size(mm)	80*80	120*120	150*150	210*160	210*160
maximum. Stretch height(mm)	800-1000	800-1000	1000-1100	950-1050	800-4000
Traction power (kw)	0.75	1.5	3	4	5.5
Appearance size(mm)	10005501500	12506501600	15508001750	274012001800	220010001750
Weight (kg)	400	500	700	1200	300
