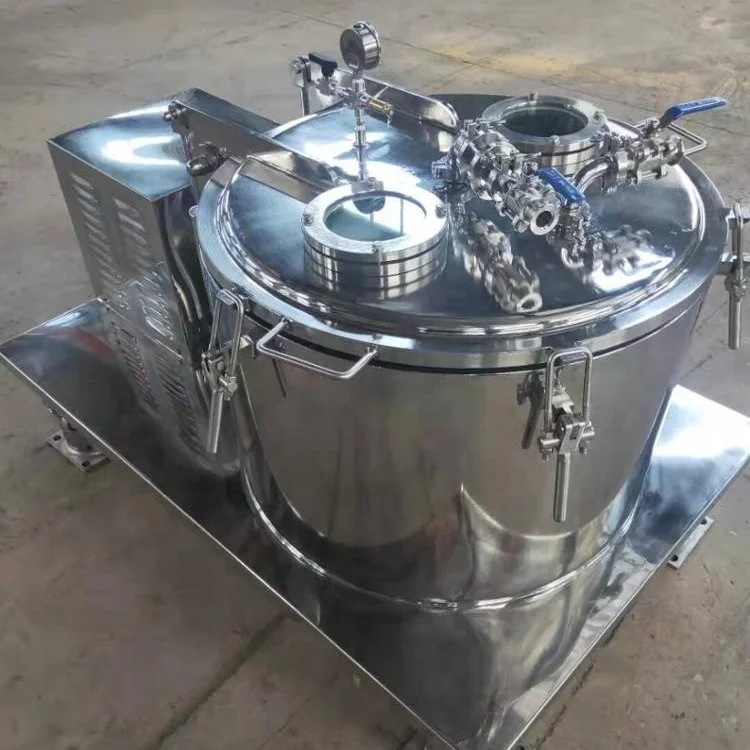

Stainless Steel low temperature centrifugal ethanol extractor
-
Supplier: Hangzhou Cema Instrument Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr FEIZHOU SHEN -
Price: $8000.00 /set -
Min. Order: 1 set
Product details
| Applicable Industries: | low temperature centrifugal ethano; | Condition: | New; |
| Product Type: | Centrifuge; | Processing medium: | Ethanol; |
| Port: | SHANGHAI,CHINA; | Weight: | 800KG; |
| Brand Name: | Cema Instrument; | Voltage: | 220V/3phase 220V/1phase; |
| Material: | Stainless Steel 304/316; | Function: | Liquid Solid separator; |
| Discharge type: | Manually top discharge; | Packaging Detail: | WOODENCASE; |
| Dimension(L*W*H): | 1300*880*900; | Power(W): | 3KW; |
| Supply Ability: | 50 Set/Sets per Month; | Warranty: | 1 Year; |
| Type: | Distillation Equipment; | Payment Terms: | L/C,T/T,Western Union; |
| After-sales Service Provided: | Field installation, commissioning and training,Field maintenance and repair service; | Vacuity: | Atmospheric pressure; |

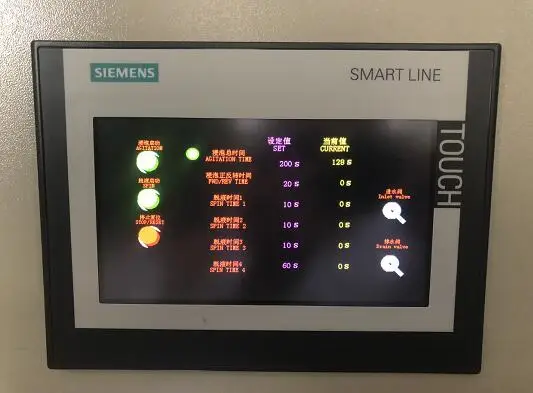

| PLC: | Siemens/Honeywell; | Machine name: | THC and CBD extraction separator; |
| Certification: | CE; | Bearing: | ptfe grease; |
| Motor: | explosion proof motor; | Capacity: | 40L Inner Capacity; |
| Place of Origin: | Zhejiang China; |
| Model | Dia(mm) | Volume(L) | Load(KG) | Speed(r/min) | separation factor(ω 2 r/g) | Motor power(kw) | Unit(kg) | Out Size(mm) |
| CE-200 | 200 | 2.6 | 2.0 | 3000 | 1371 | 0.55 | 38 | 550*350*350 |
| CE-300 | 300 | 5 | 10 | 1600 | 1000 | 0.75 | 94 | 650*460*500 |
| CE-450 | 450 | 20 | 25 | 1600 | 990 | 1.5 | 180 | 1100*670*520 |
| CE-600 | 600 | 40 | 70 | 1500 | 756 | 3 | 800 | 1300*880*900 |
| CE-800 | 800 | 100 | 135 | 1200 | 1000 | 5.5 | 1400 | 1800*1200*1000 |
| CE-1000 | 1000 | 175 | 200 | 1000 | 675 | 7.5 | 1800 | 2000*1500*1280 |
| CE-1200 | 1200 | 470 | 450 | 800 | 670 | 11 | 2800 | 2260*1750*1300 |
Product Description
1) ethanol resistant
2) bearings need ptfe grease
3) machine can be able to handle -60c
4) explosion proof motor
5) must be able to flood to top
6) motor need to pin forward and backwards like a wash machine
