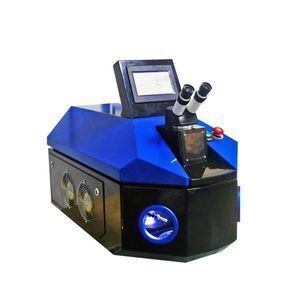

Best Quality Small jewelry laser welding machine for Jewelry jewellery

Supplier: Jinan Bogong Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Cathy Zhang
Price: $4500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year;	Power(W):	200w;
Selling Units:	Single item;	Product name:	Best Quality Small jewelry laser welding machine for Jewelry jewellery;
Brand Name:	Bogong machinery;	Dimensions:	18507001750;
Application material:	Metal Materials;	Usage:	welding jewelry;
Laser power:	220watt 300watt 400watt;	Pulse Frequency:	0.1-100Hz;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Shandong China;
Cooling Method:	Water Cooliing;	Keywords:	laser welding machine for jewelry;
Power Supply:	50/60Hz;	Certification:	CE,ISO,GS,SGS;
Package Type:	Cheap China Manufacturer Sell Jewelry laser welding machine for gold silver brass stainless steel packaged wooden box;	Max. Output Power:	200w;
Pulse Width:	0.1-20ms;	Application:	Jewelry Welding Products;
Wavelength:	1064nm;	Single gross weight:	100 KG;
Focal Spot Diameter:	0.1-2mm;	Welding depth:	0-0.5mm;
COLOR:	Blue , Red;	Condition:	New;
Single Pulse Energy:	80J;	Single volume:	1 cm;

Best Quality Small jewelry laser welding machine for Jewelry jewellery

Introduction of Jjewelry laser welding machine:

This welder is mainly used in perforating and spot welding of gold and silver jewelry. The laser spot welding is an important aspect of laser process technology application. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of its unique advantage, it is widely used in the process of gold and silver jewelry and welding of mini and small parts.

Application of jewelry laser welding machine:

Widely used in aviation, aerospace, sports products, jewelry, golf head, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc, especially for the perforating of gold and silver jewelry, spot welding, repairing, inlay and welding of claw. gold jewelry laser welding machine

Machine Features of Best Quality Small jewelry laser welding machine for Jewelry jewellery :

1). Energy, pulse width, frequency, spot size can be adjusted within a wide range, in order to achieve a variety of welding results. Parameter adjustment lever by a closed cavity, simple and efficient.

2). The British imported ceramic condenser cavity, corrosion resistance, high temperature, high photoelectric conversion efficiency, the condenser chamber life (8--10 years), xenon lamp life of more than 8 million times.

3). The world's most advanced automatic shading system, eliminating the time to protect the eyes.

4). With 24 hours of continuous work capacity, machine performance and stability, within 1,500 hours of maintenance-free.

5). User-friendly design, ergonomic, long working hours without fatigue.

6). Speed, high efficiency, depth, small deformation, small heat-affected zone, high quality welding, spot clean, efficient and environmentally friendly.

Technical Parameter

Item Name	Technical Parameter
Model	BG-W 200W
Laser type	Nd:YAG
Laser Wavelength	1064nm
Laser Power	200W
Laser Engery	80J
Pulse Width	≤ 20ms
Pulse Frequency	≤ 50Hz
Beam Diameter	0.1-3.0mm
Observing System	microscope
Chamber Illumination	LED lamps
Parameters Memorization	10 groups
Protection Alert	flow alert
Language Display	Chinese/English
Shield Gas Supply	One line
Cooling System	Water cooling
Power Consumption	6KW
Power Supply	220V±10% /50Hz
Welding Chamber Dimensions	300mm450mm150mm(LWH)
Machine Dimensions	920mm560mm1220mm (LWH)
Running Environment	5℃-30℃, 5%-75% humidity
Net Weight	130kg(welder)+50kg(chiller)

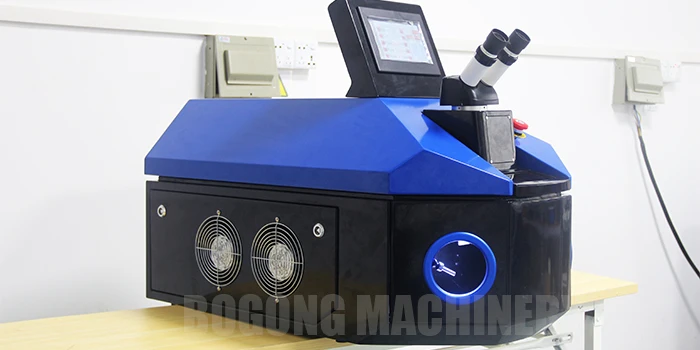

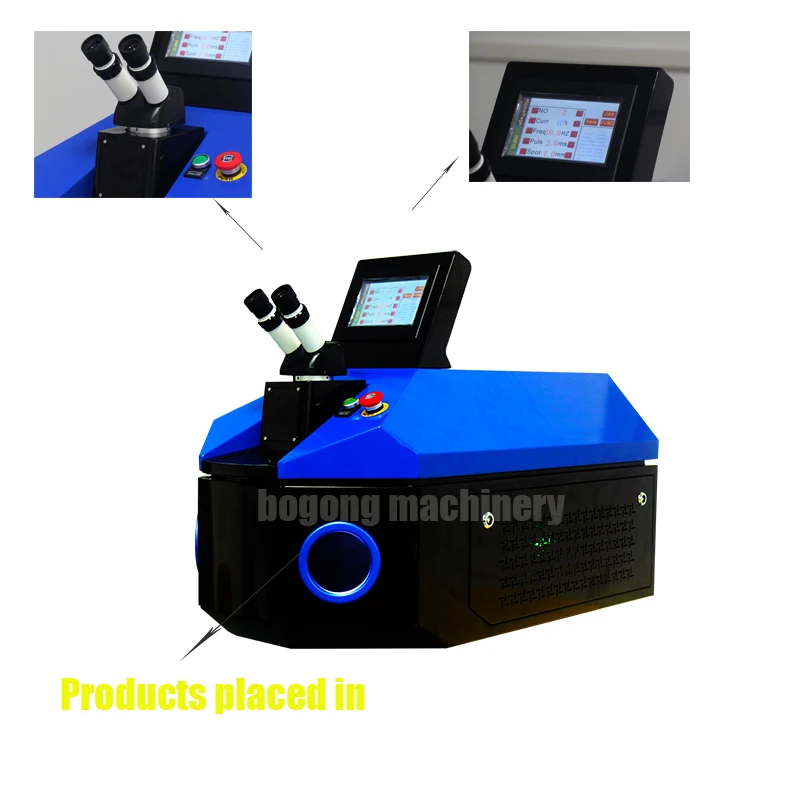

Small jewelry laser welding machine structure

Detail of jewelry laser welding machine

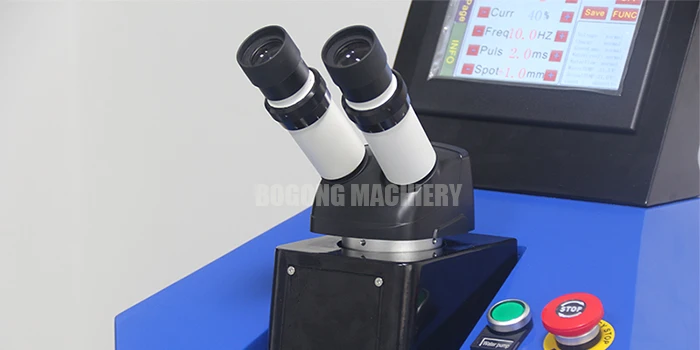

1.Microscope

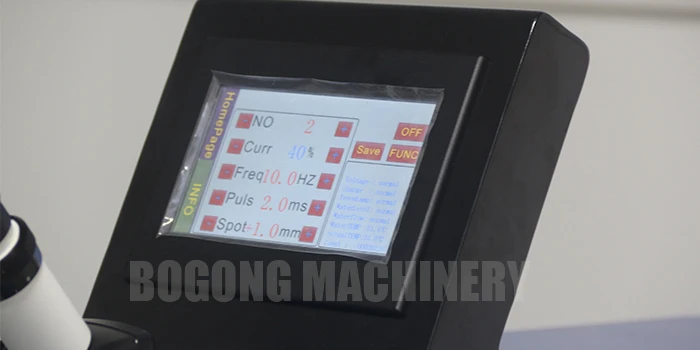

2. Display screen of jewelry laser welding machine

3.Emergency button of laser welding wire

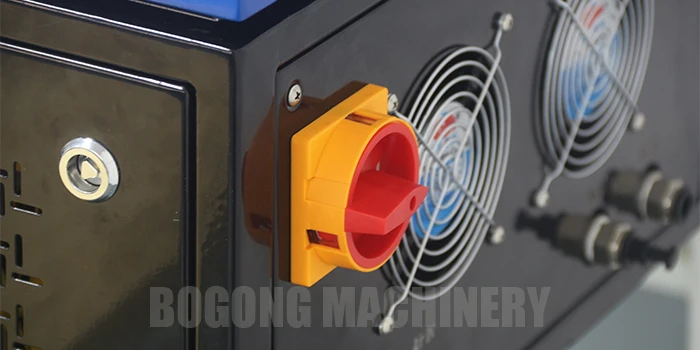

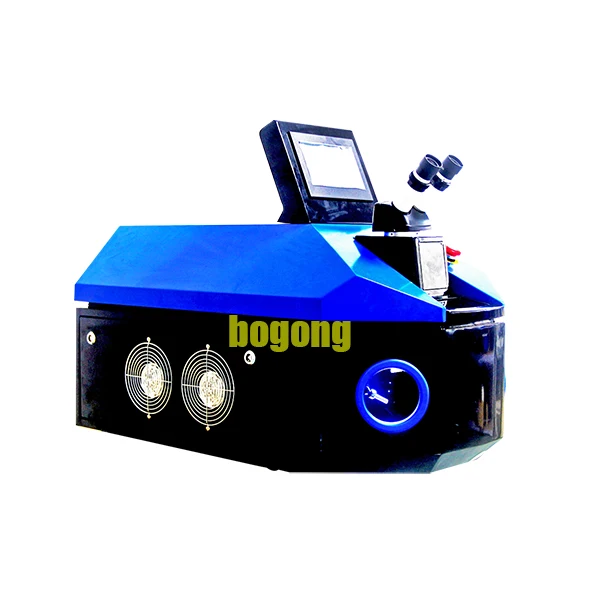

4. Right side of machine of jewelry laser welding machine

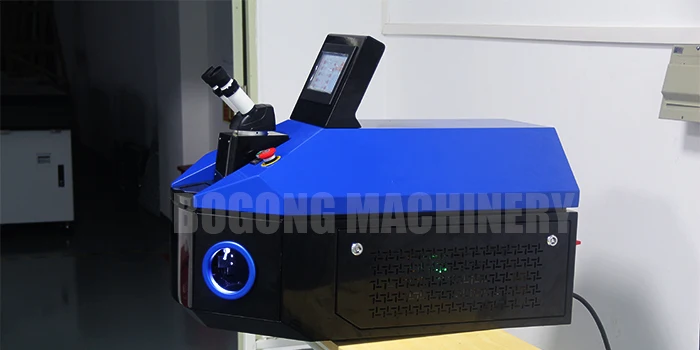

5. life side of machine

Samples show

Certificate

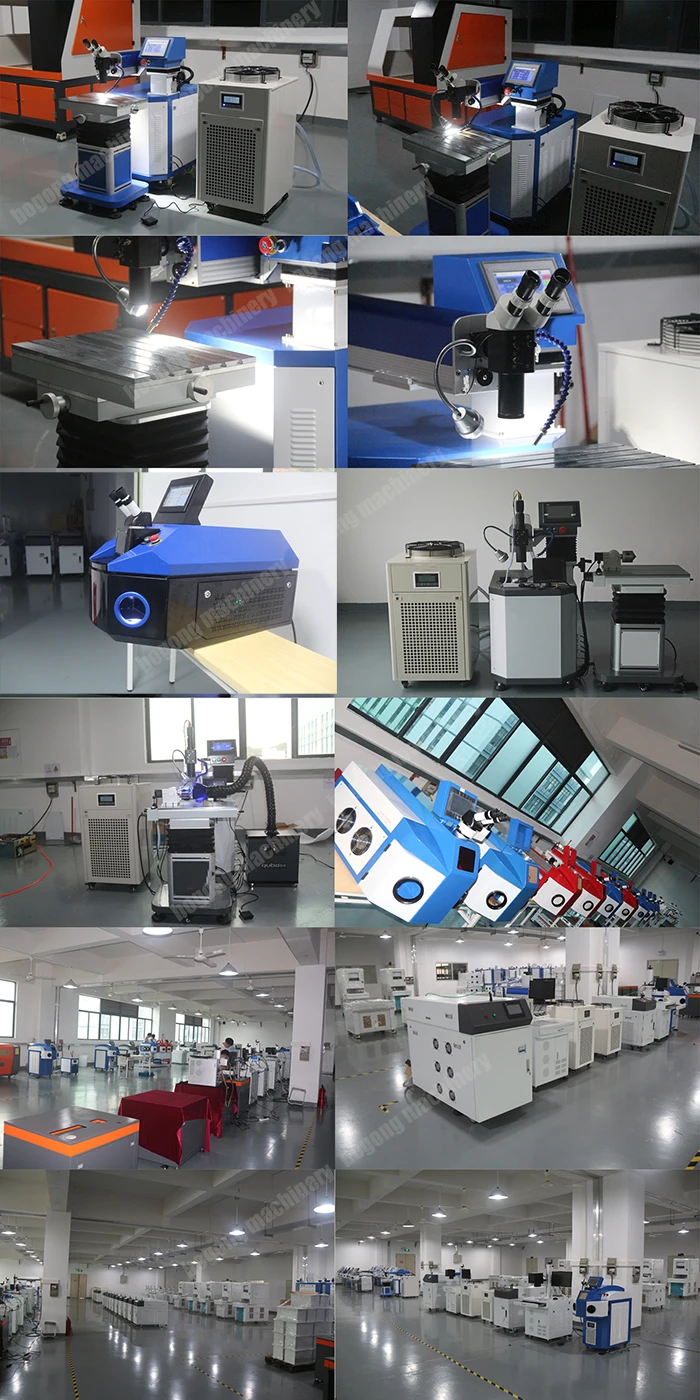

Customer visiting of Bogong machinery

picture of laser welding wire

FAQ

Q: What’s the package?
A: We have 3 layers package for our laser weling machine. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the laser welding machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Before quotation, would you please let me know some items gold jewelry laser welding machine following?

1.What 's material of the products?

2.How about your expect working performance?

Then, more details with good price will be sent . Also more industry solution will be supplied.
