high sale 20w 30w 50w Fiber laser marking machine manufacture supplier

Supplier: Jinan Bogong Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Cathy Zhang
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CCC,CE,GS,ISO,SGS,UL,FDA for Metal Fiber Laser Marker;	Applicable Material:	Metal Plastic;
Product name:	50w laser marking machine;	Control Software:	EZCAD Software;
CNC or Not:	Yes;	Laser Type:	Fiber Laser;
OEM:	accept;	Cooling Mode:	Air Cooling;
Marking head:	laser galvo head/field lens;	Laser red spot:	show marking position;
After-sales Service Provided:	Engineers available to service machinery overseas;	Laser Source Brand:	RAYCUS;
Warranty:	2 Years;	Laser source:	Germany IPG, China Raycus, Max,;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Retail,Printing Shops,Construction works ,Advertising Company;	After-sales Service Provided:	Online support,Video technical support;
Place of Origin:	Shandong China;	Marking speed:	7000mm/s marking;
Table:	Aluminium alloy up down table;	Application:	Laser Marking;
Graphic Format Supported:	AI,BMP,DST,DWG,DXF,DXP,LAS,PLT,Ezcad Laser software;	Working Accuracy:	0.002mm;
Condition:	New;	Key Selling Points:	Eco-friendly;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Metal Fiber Laser Marker;	Control laser system:	PC;
Packaging Detail:	high sale 50w Fiber laser marking machine manufacture supplier wooden case;	Supply Ability:	500 Set/Sets per Month 20W 30W 50W50w laser marking machine;
Port:	qingdao;	Brand Name:	BOGONG MACHINERY;

high sale 50w Fiber laser marking machine manufacture supplier

Product Description

Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel, titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.portable fiber laser marking machine

BOGONG laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.

This Portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice.

Applicable Material

All metal , some non-metal material marking such as nylon, ABS, PVC, PES

Applicable Industry

Electronic components, integrated circuits, mobile communications, medical equipment, eyeglasses and clocks, jewelry, auto parts, plastic buttons

Specification:

Model	BGL-F10 BGL-F20 BGL-F30 BGL-F50
Wave length of laser	1064nm
Laser repetition frequency	20kHz~100kHz
Laser power	10W 20W 30W 50W
Marking scope	110110 /150150 /175175/200200/260260/300300mm
Laser sources	Raycus or IPG Fiber module
Laser Head	Scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Marking speed	≤7000mm/s
Repeated accuracy	0.0025mm
Cooling ways	Force-air Cooling
Power supply	220V/ 50Hz/2kVA
Process Material	All kinds of metal and part of Non-metal Materials
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Package	Standard Crate for export

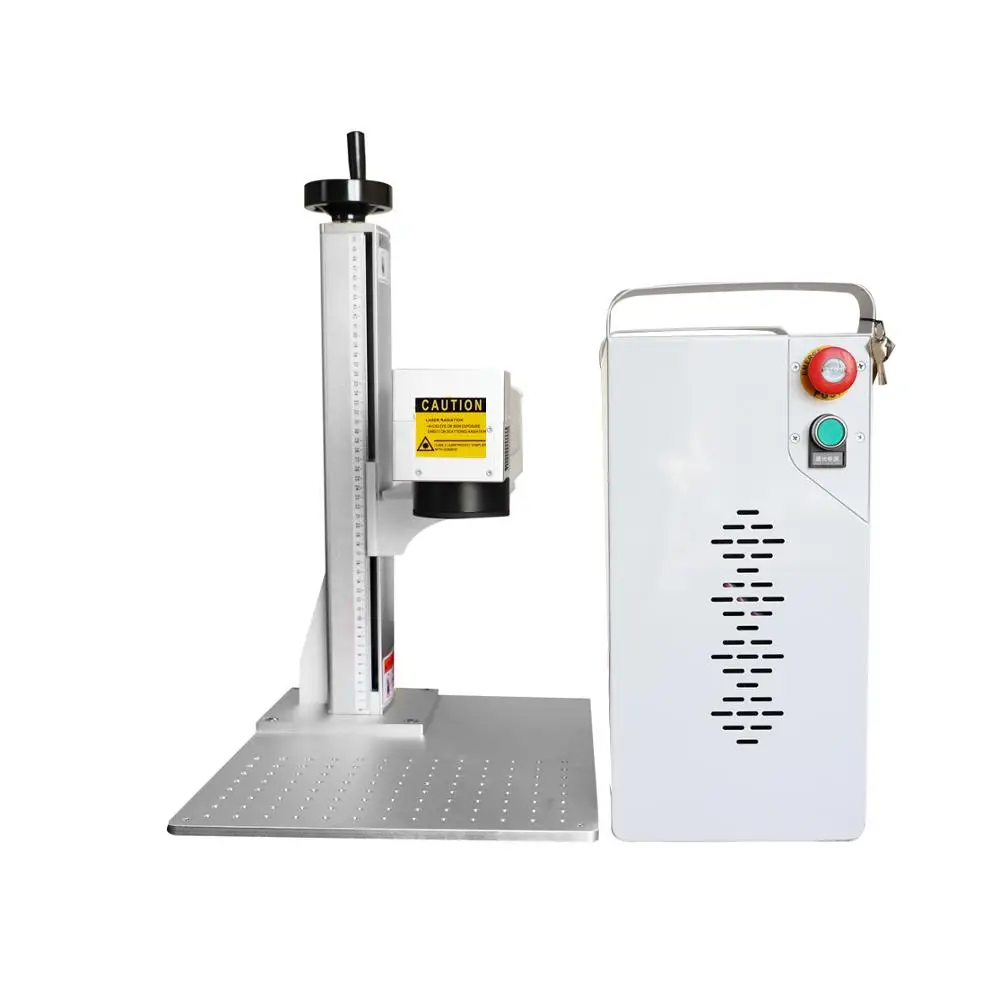

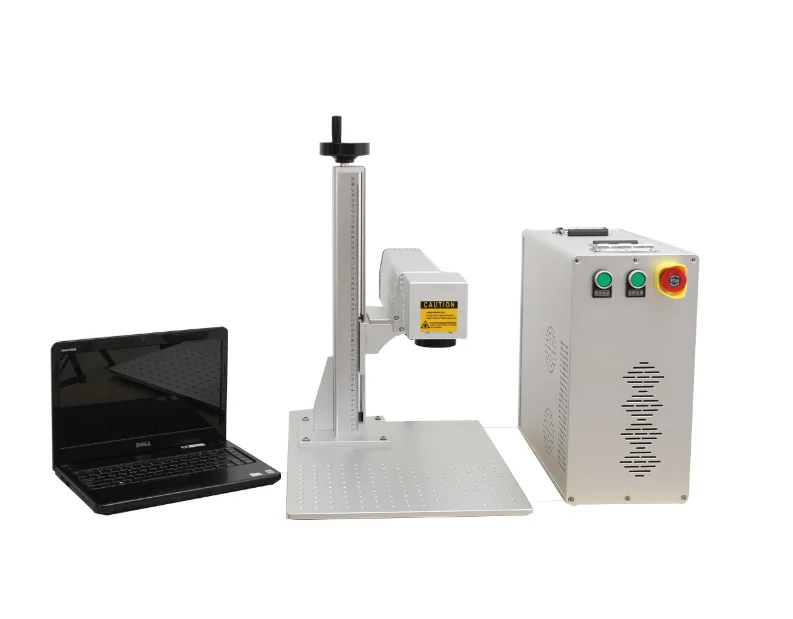

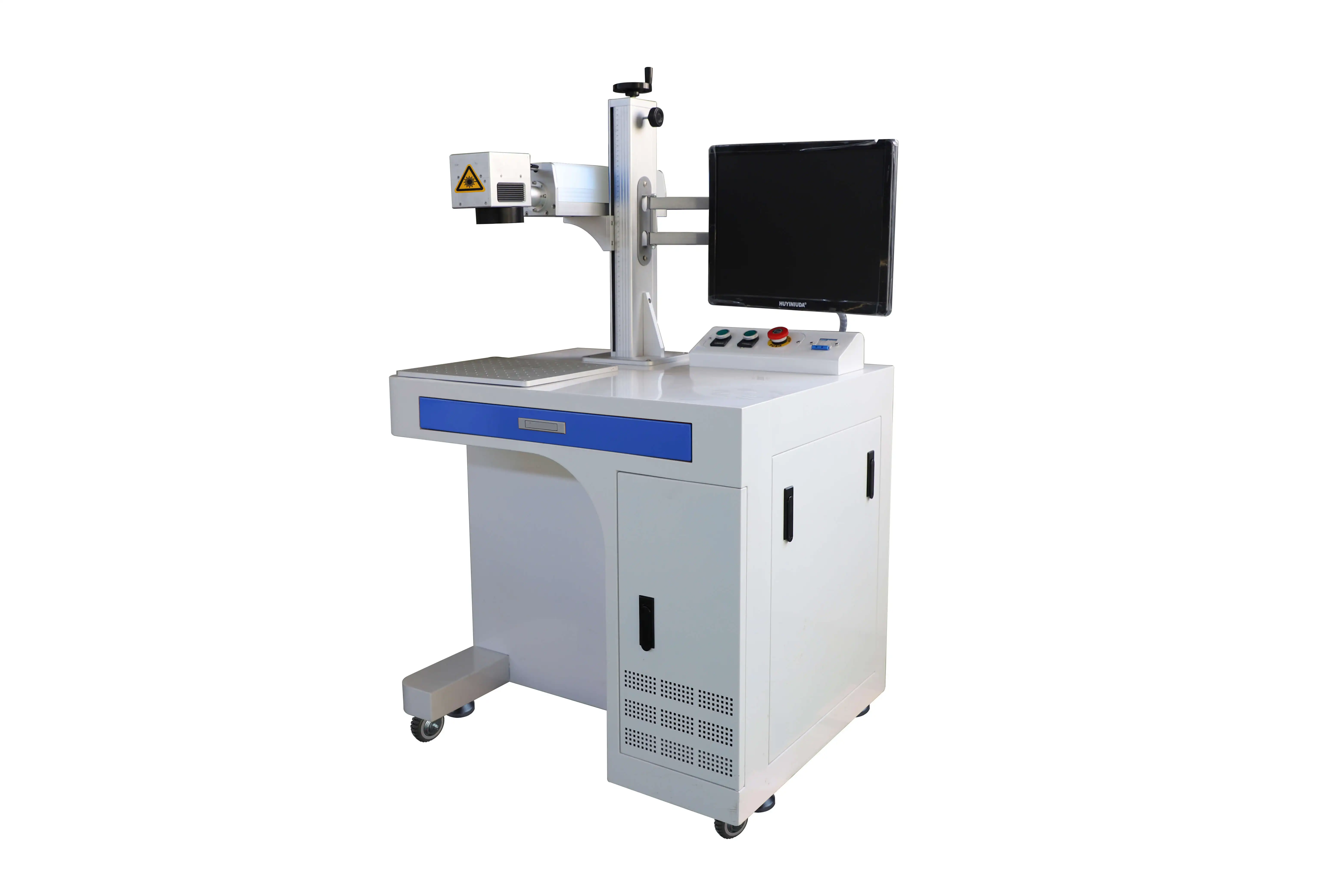

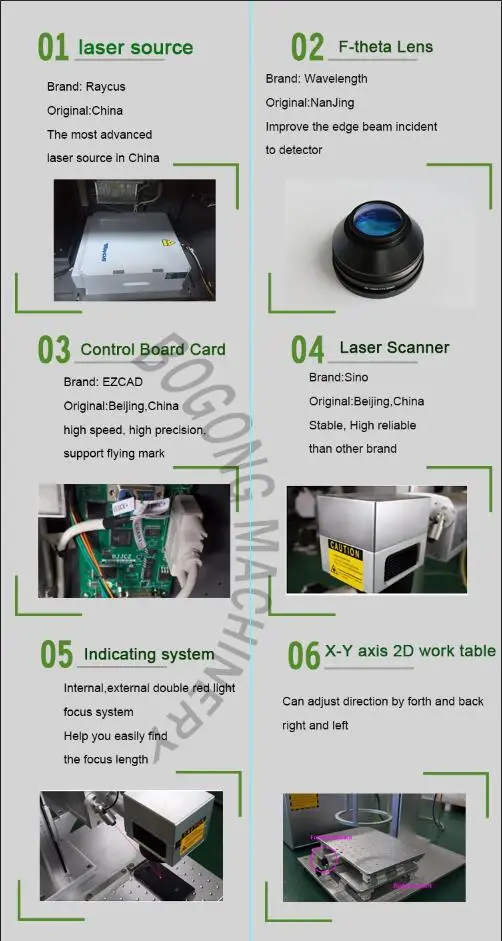

Machine detail

Samples

Packaging & Shipping

You can shipping the laser marking machine by TNT /DHL/FEDEX,Air, Sea

Our Services

> All the machine will be full-checked by BOGONG Laser's QC department before delivery. We can make sure that you will get an excellent and qualified products.
2> All the machines will enjoy 12 months quality guarantee.
3> The User's manual and training video (in English version) will be sent together with the machine, to help you easily understand the operation.
4> We will offer 24 hours online supports by Skype, what-app, email, video, telephone.
5> Engineer door-to-door training service is available.
