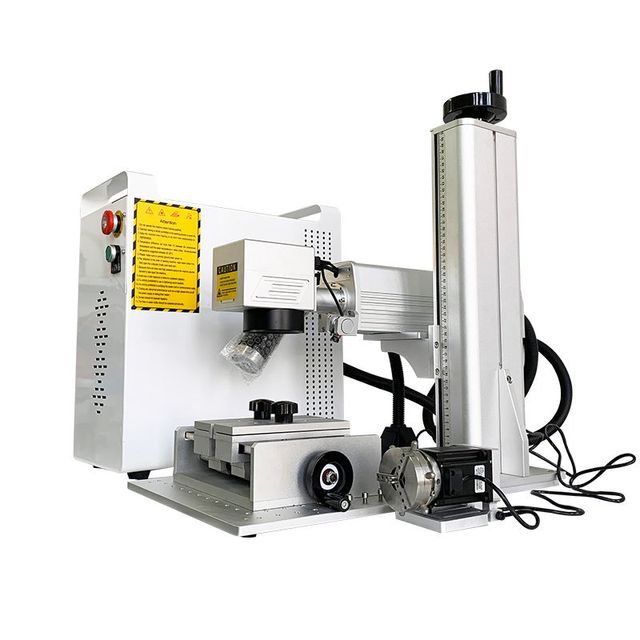

2D 50W Raycus Mini Fiber Laser Cutting Machine for Jewelry Brass Cutting

Supplier: Jinan Bogong Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Cathy Zhang
Price: $3650.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Building materials store, manufacturing plant, machinery repair shop, household, print shop, advertising agency, jewelry, ear tags, guns, polymers, pens	Supply capacity:	200 sets per month
Laser type:	fiber-optic laser	Supported graphic formats:	PLT, DXF
application:	Laser Marking	Core component warranty:	2 years
port:	Qingdao Port	Mechanical test report:	if
Origin:	Shandong	Configuration:	Mini
Laser wavelength:	1064nm	Laser source brand:	Raycus

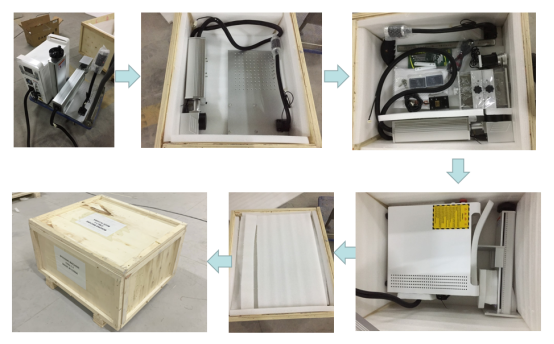

Packaging Details:	Export standard wooden box	Laser source:	IPG Raycus Max JPT
Mark area:	200mm*200mm	Applicable materials:	metallic material
controlling software:	EZCAD software	feature:	air cooled
product name:	laser marking machine	CNC or not:	Yes
Core components:	laser power	Laser head:	Chinese vibrating lens
brand:	Bo Gong Machinery	payment terms:	wire transfer
Warranty:	2 years	cooling method:	air cooled
Health status:	new	Main selling points:	easy to operate
Video shipment inspection:	if	Weight (kg):	75 kg
Working precision:	0.002mm	Operating mode:	Pulse

Company Profile

Bogong Machinery specializes in the research and development of fiber laser cutting, laser marking machines, CO2 laser machines, CNC machine tools, etc., and provides corresponding automation system technology solutions.
The company maintains long-term good cooperative relations with famous laser companies in Germany, the United States, Japan, Italy and other domestic laser research institutes to ensure that Bogong's laser processing system is developed synchronously with the latest international technology.
Bogong products are exported to Singapore, Indonesia, India, Malaysia, Thailand, South Korea, Japan, the United States, Hong Kong, Taiwan, Vietnam, the United Kingdom, France and other countries and regions, and have established a complete technical support and sales service network in many countries 50 countries and regions.

Product Description

Bogong laser marking machine adopts the best fiber laser source in the world. We have 20w, 30w, 50w, 60w and 100w to choose from. The expected lifetime of the laser source is approximately 100,000 hours, which is 10 times longer than a diode laser and 2 times longer than other fiber laser sources.

Fiber laser marking machine can mark logo, serial number, barcode and other exquisite patterns on any metal materials such as stainless steel, titanium, brass, gold, silver, aluminum, etc., as well as various engineering plastic products such as mobile phone cases and chargers. Consumer Electronics Housing, etc.

This portable desktop fiber optic metal laser marking machine is very easy to use, small in size, light in weight and movable. This is your best bet.

Specification

Laser wavelength	1064nm
Laser repetition rate	20kHz~100kHz
laser power	10W / 20W / 30W / 50W / 60W / 100W
Marking range	110110 /150150 /175175/200200/260260/300300mm
laser source	Raycus/ JPT/ IPG

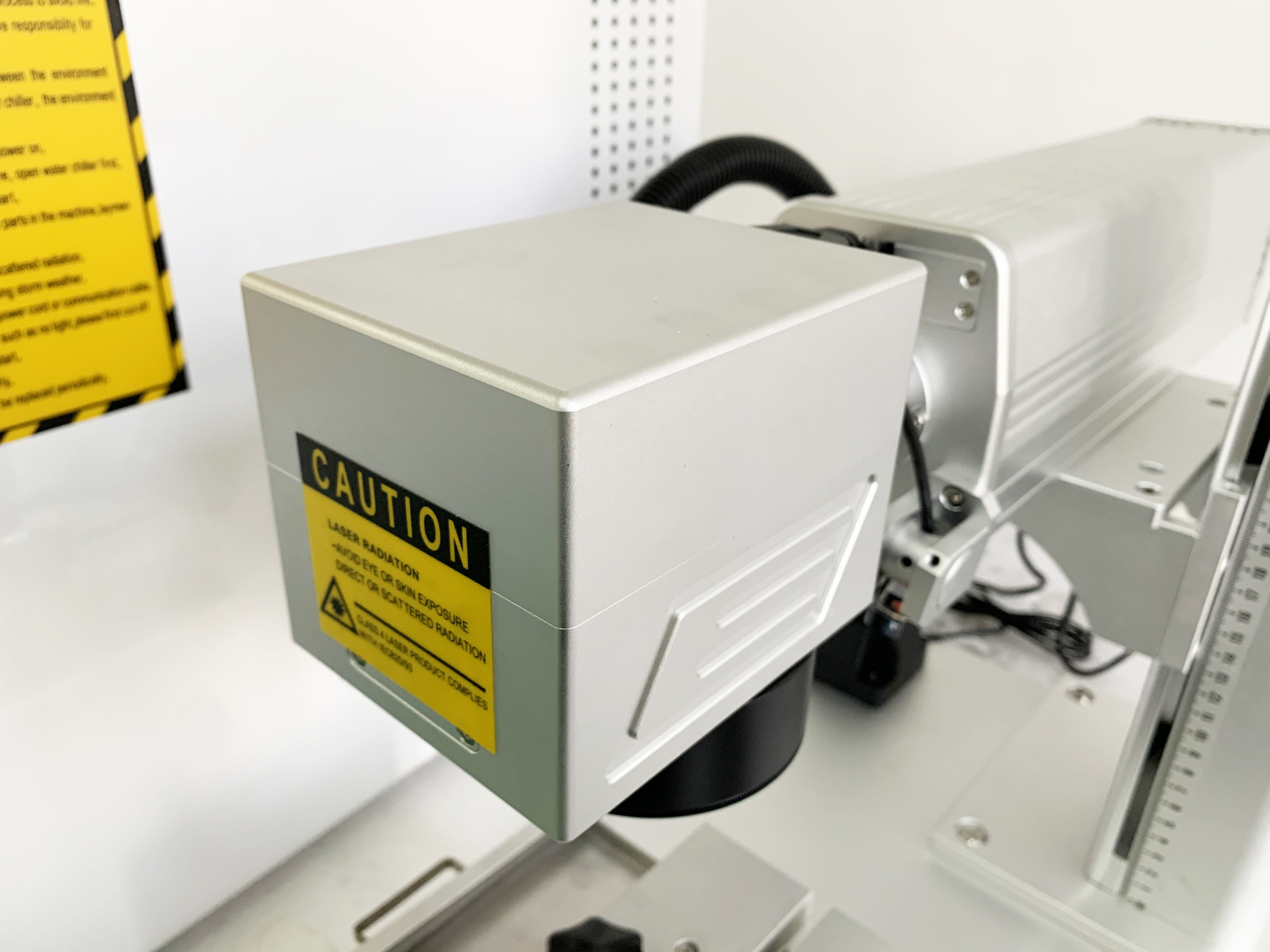

laser head	scan head
Minimum focal spot diameter	20μm
minimum character	0.01mm
Marking speed	≤7000mm/s
Repeatability	0.0025mm
Cooling method	Forced air cooling
power supply	220V/ 50Hz/2kVA
craft material	Various metals and some non-metallic materials
supported format	PLT, BMP, DXF, JPG, TIF, AI, etc.
pack	export standard crate
