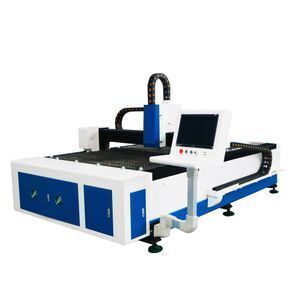

High Quality Small CNC Fiber Laser Cutting Machine Price with 500W 1500W Fiber for Metal

Product details
Driving system:Rack and pinion;Applicable Material:Metal;
Cutting Speed:60M;Package Type:High Quality Small CNC Fiber Laser Cutting Machine Price with 500W 1500W Fiber for Metal will be packaged in one 20GP container which shipping by sea;
Laser Type:Fiber Laser;Working area:1300*2500 1500*3000 cutter;
Condition:New;Single volume:20 cm;
laser type:fiber laser, fiber laser source;Cutting Area:1300*2500 1500*3000 cutter;
Graphic Format Supported:AI,PLT,DXF,BMP,DST,DWG,LAS,DXP;Brand Name:BOGONG MACHINERY;
Laser wavelength:1064nm;Product name:fiber laser cutting machine;
Single gross weight:3,000 KG;Selling Units:Single item;
CNC or Not:Yes;Place of Origin:Shandong China;
Laser tube:Raycus IPG MAX CAS JPT;Control Software:Cypcut for metal sheet;
Cutting Thickness:depending on laser power;Cutting materials:Steel, Stainless steel, brass, aluminium, gold, silver;
Application:Laser Cutting;Certification:CE,ISO,SGS;
Cooling Mode:Water Cooling;After-sales Service Provided:Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Function:Cutting Metal Materials;Laser power:500W / 1000W / 1500W / 2000W;
Warranty:2 Years;

High Quality Small CNC Fiber Laser Cutting Machine Price with 500W 1500W Fiber for Metal

Product Description

Whats the Advantage of Bogong Fiber laser cutting machine?
1. Moving crossbeam, imported high precision racks and linear guide rail, stable transmission, high precision.
2. Machine frame, crossbeam and worktable adopt integral welding structure.
3. X, Y and Z axes use imported Japan servo motor with high precision and speed.
4. Using professional and powerful Shanghai Cypcut fiber cutting controlling system that based on Windows operating system, with good Human Machine Interaction and easy operation.
5. Laser is produced without gas and it could use air to cut sheet metal.



 Whats' the Main feature of fiber laser cutting system?

1. High performance.fiber transmission can make sure the same quality cutting effect in every point of the material.
2. High efficiency,fast cutting speed.photoelectric conversion rate about 35%.
3. Low gas consumption.it has the cutting technology specially for steel board and produce no gas when cutting .
4. Low power consumption

5.Stability and reliability of light path system and control system.
6. Imported original fiber lasers,high and stable,lifespan is over 100000 hours.
7.Higher cutting quality and efficiency,cutting speed is up to 60 m/min.
8. High performance german reducer,gear and rack;Japanese guide and ball scerw.

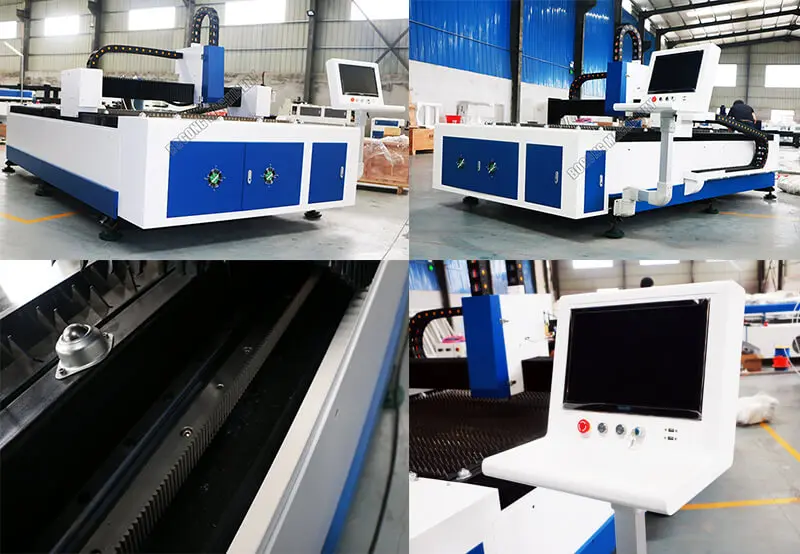

 What's the detail of metal laser cutter

Applicable industries of fiber laser machine:
High precision apparatuses, machinery, electrical apparatuses, metal crate and cabinet, electric appliance shell, metal plate processing, auto spare parts, decorative lighting, bathroom accessories, kitchenware, stainless steel(metal) decoration, mobile communications products, electronic components, instrument and meter, etc.

What's the parameter of fiber laser cutting machine for metal?

Model

1325Fiber laser cutting machine

Working Area

1300*2500mm

Laser Power

500w 750w 1000w 1200W 1500w 2000w 3000w

Laser Wave Length

1064nm

Working Table

Sawtooth

Maximum Idle Running Speed

1200mm/s

Position Accuracy

±0.05mm/m

Position Speed

20m/min

Minimum Line Width

± 0.02mm

Cutting Thickness

≤6mm

Control System

Cypcut

Position Type

red dot

Power Consumption

≤12KW

Working Voltage

380V/50Hz

Auxiliary Gas

oxygen,nitrogen,air

Working life of fiber module

More than 100000 hours

Driver system

servo motor made in Japan

Liner guider system

PMI made in Taiwan , (Option THK made in Japan)

Transmit system

Dual Rack & Pinion type

Warranty time

2years

Delivery time

20 days

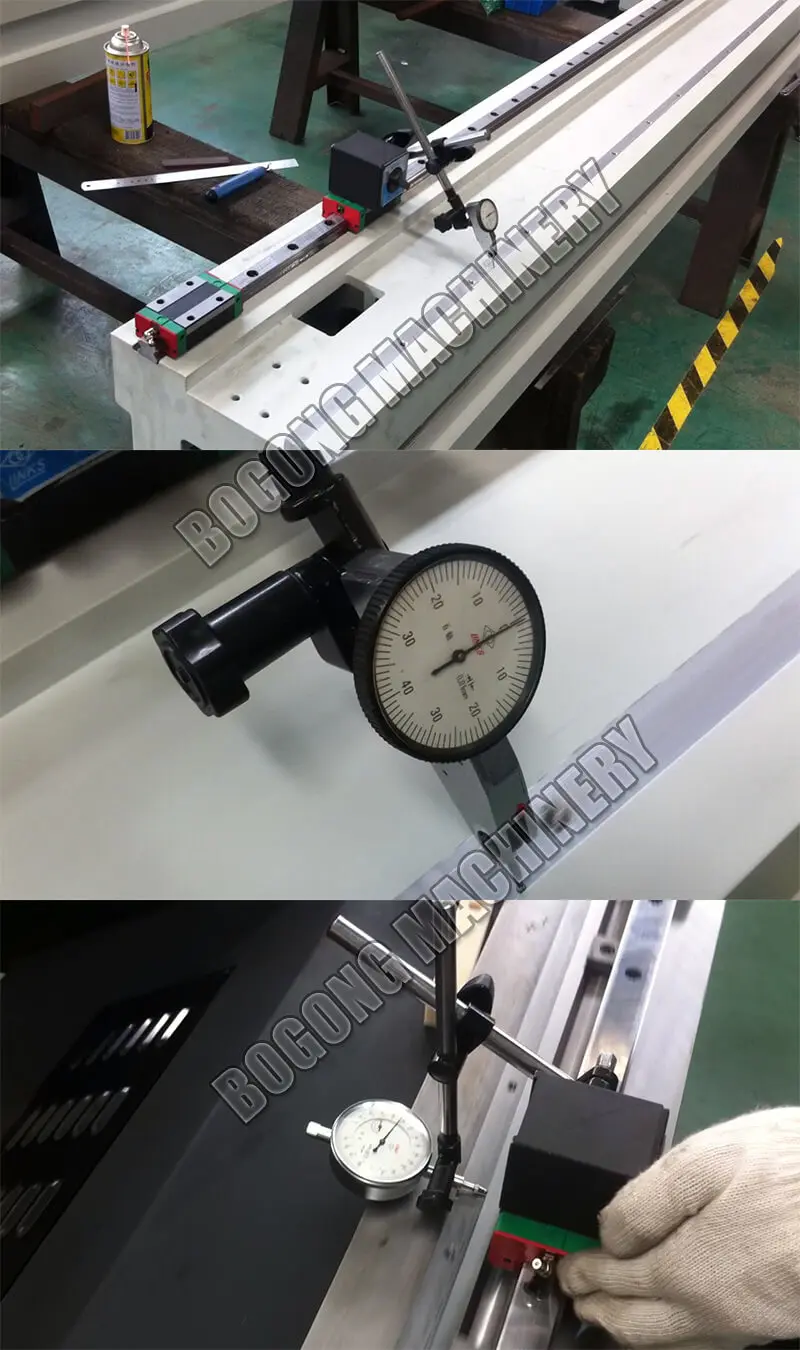

 How can u control fiber laser machine quality during laser machine production?

Packaging & Shipping

 We will make strict QC before packing by professional staff and engineer. Before shipping, they will clean the fiber laser cutting machine price,hot sale fiber laser tube cutting machine tables firstly, then brush oil to linear guide, ballscrew, and all the metal sheet, to make sure it will not rust..



Our Services

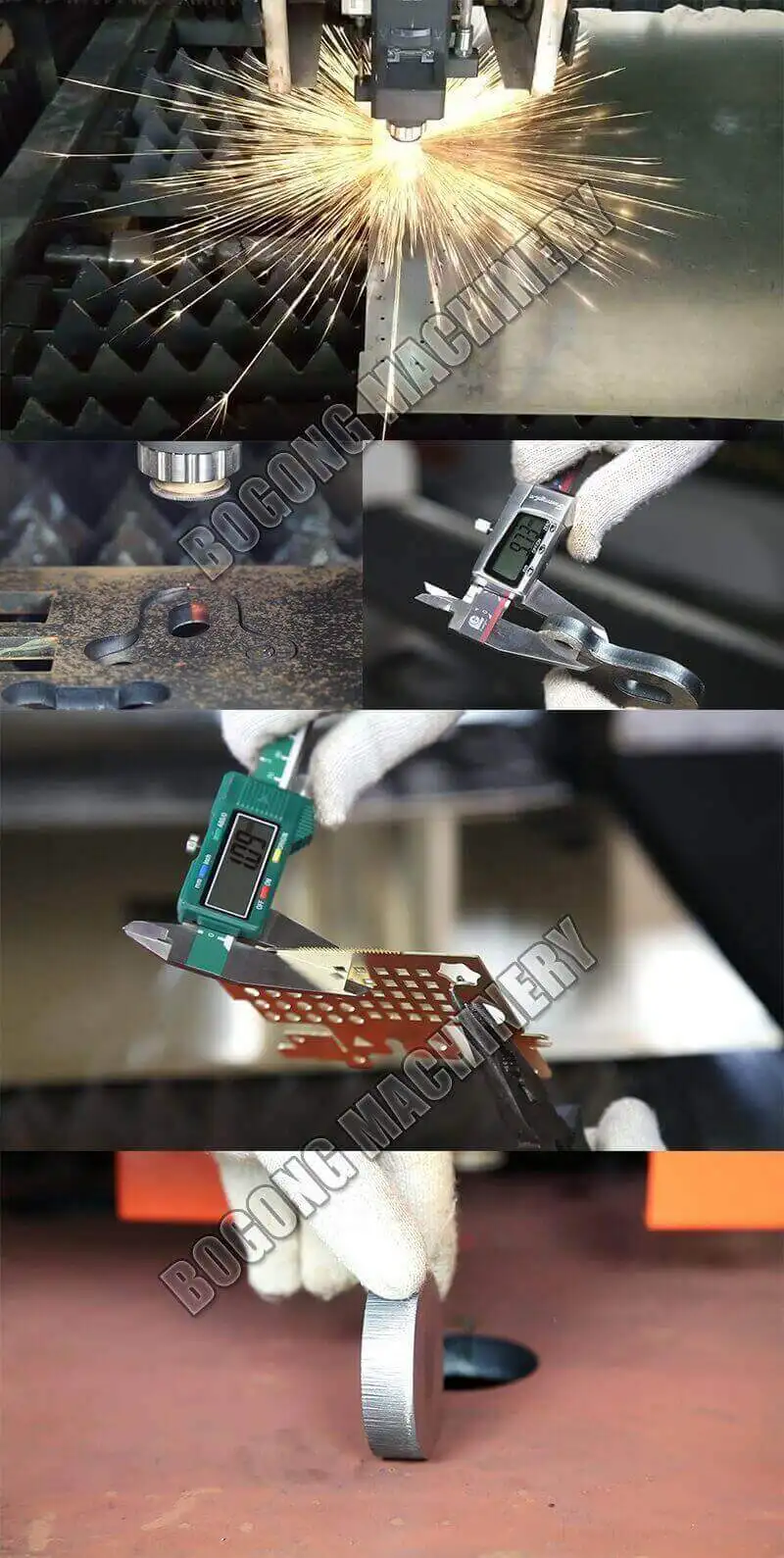

 Cutting work show of fiber laser cutter for metal sheet



Customer feedback and visiting of laser machine

Company Information

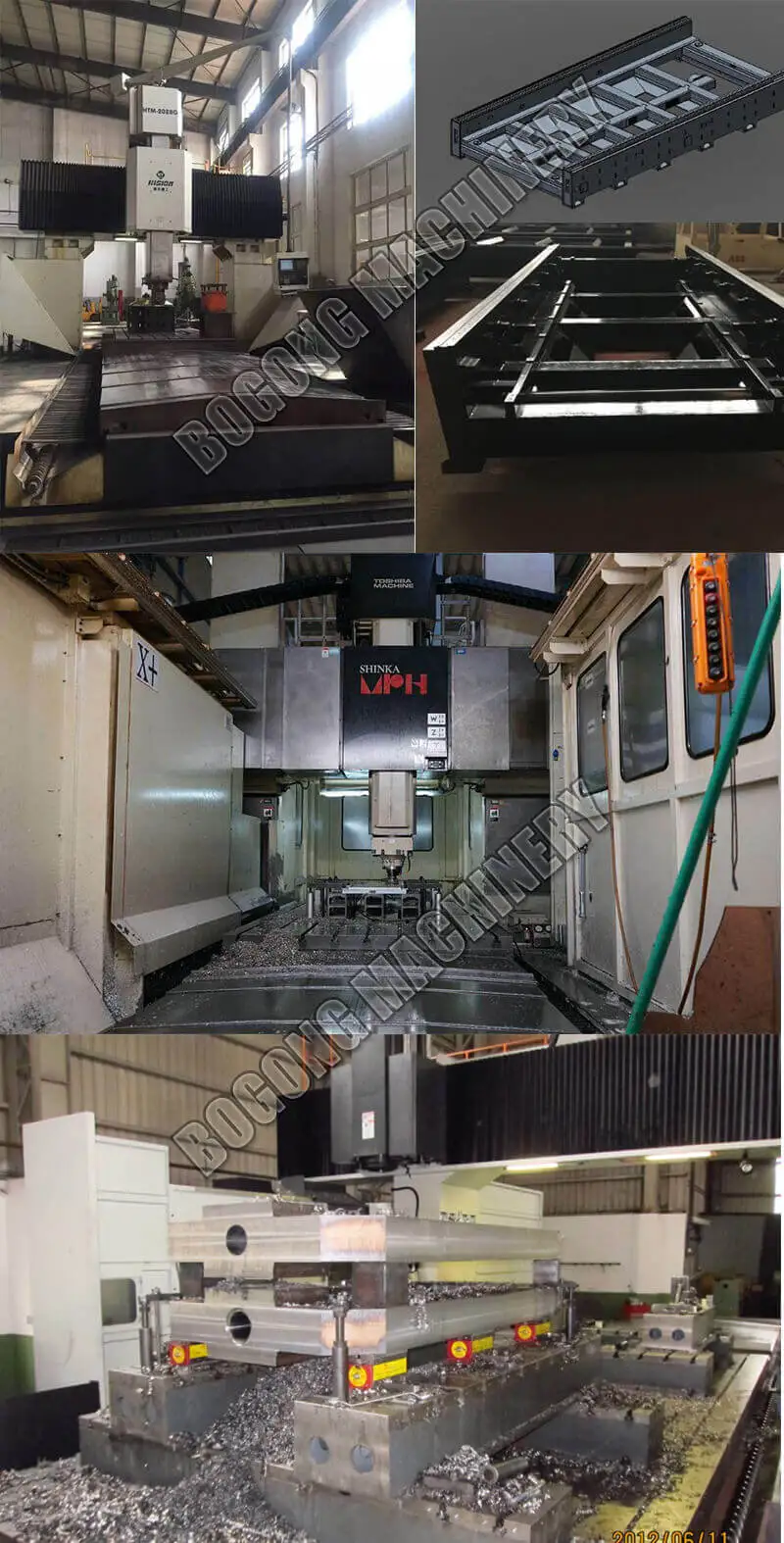

 What's  the process of fiber laser cutter machine body

FAQ

 What's material can hot sale fiber laser tube cutting machine tables can cut?
All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc. With rotary, the china fiber laser cutting machine  can cut metal pipe, metal tube together. It is designed specially for those customers who need one machine to cut both metal sheet and metal pipe, so this hot sale fiber laser cutting machine cost capabilities is the popular model for metal cutting.

How is cutting capacity for hot sale cheap small small-scale  stainless steel fiber metal laser cutting machine and sheet metal cutting machine? Usually for metal pipe, its cutting capacity will be half compared with metal sheet cutting capacity.

Which fiber source does Bogong machinery applied for aluminum stainless steel cable hole pipe cutter
IPG/Nlight - Made in USA/Russia/Germany
Raycus- Made in China
Maxphotonics - Made in China

What's the max. cutting thickness for  hot sale fiber laser tube cutting machine tables?
Cutting thickness is related to laser power and metal sheet materials. For example, for different countires, their steel is different too.
300W: 1.5mm stainless steel, 4mm carbon steel
500W: 3mm stainless steel, 6mm carbon steel
1000W: 5mm stainless steel, 12mm carbon steel
2000W: 10mm stainless steel, 18mm carbon steel
Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.

How to place a order:
1. After confirming order details, we will make Proforma Invoice for you.
2. After receiving 50% deposite will start test machine . Ensure the excellent performance.
3. After tested the machine, will pack and send out.
4. When you received the machine, there have user manual and video guide you install,operate and maintain.At the same tim our engineer will provide online service online



Contact with Cathy from more detail of bogong machinery cnc fiber laser cutting machine for metal sheet cutting
