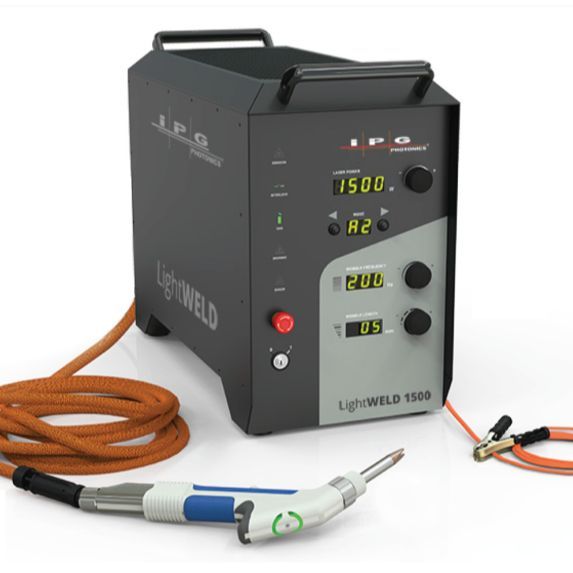

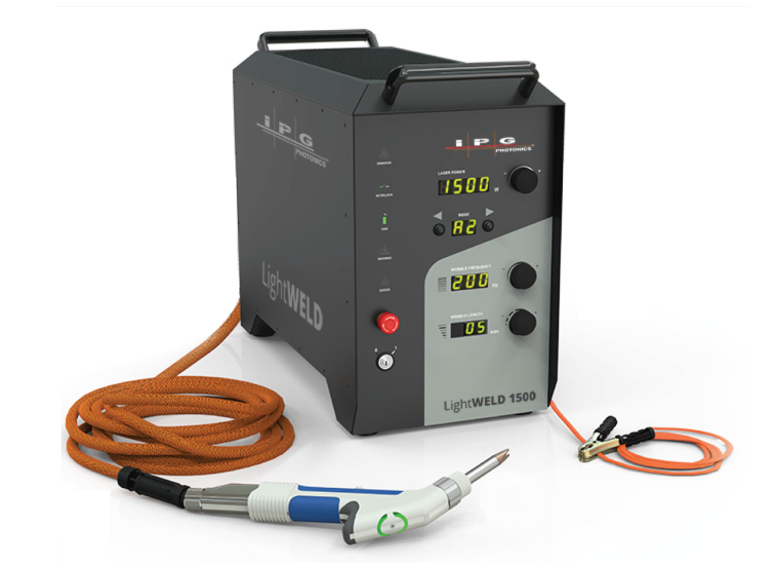

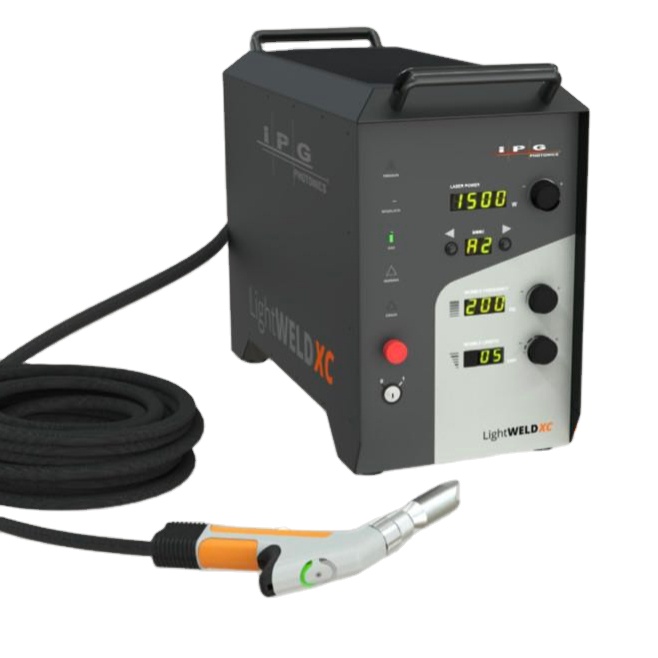

IPG LightWELD 1500XC Mini Air Cooled Handheld Fiber Laser Welding Machine

Supplier: Demark (Wuhan) Technology Co.,Ltd
Region: Hubei, China
Price: $7980.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	Bubble film + carton	Warranty:	1 year
Applicable industries:	Building materials store, manufacturing plant, mechanical repair shop, home use, construction work	Mechanical test report:	not available
brand:	GW	Laser source brand:	GW
Core components:	engine	Supply capacity:	100 boxes per month
After-sales service provided:	online support	Marketing Type:	2020 New Products
payment terms:	L/C, T/T	maximum. Output Power:	1500W
Health status:	new	Core component warranty:	2 years
Laser power:	1500W	Weight (kg):	65 kg
Origin:	Hubei, China	Package preview:
Laser head brand:	GW	wavelength:	1070nm
usage:	metal welding	Video outbound inspection:	not available
Main selling points:	competitive price

about denmark

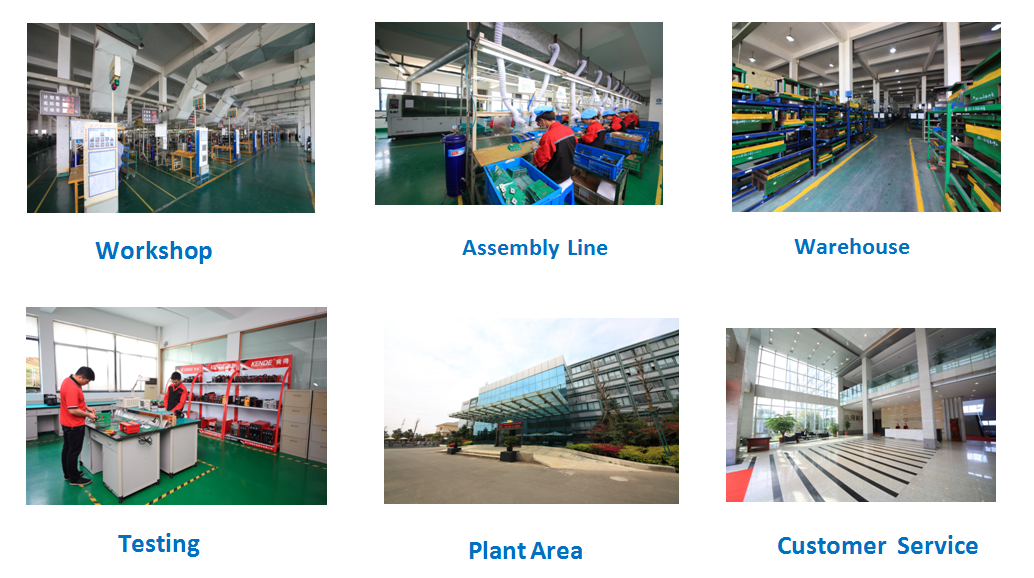

Demark (Wuhan) Technology Co., Ltd. has been focusing on laser technology in China for more than 20 years, including laser marking, laser cleaning, laser welding and laser cutting applications. We started out as a small business, but now we have become one of the leading suppliers in China's laser industry.
Today, Demark (Wuhan) Technology Co., Ltd. has become one of the top manufacturers of laser machines and laser equipment components, such as: laser marking machines, laser cleaning machines, laser welding machines and laser cutting machines.

Product Description

brief introduction

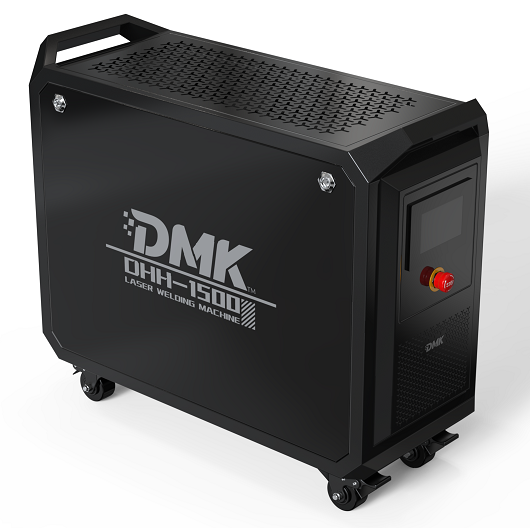

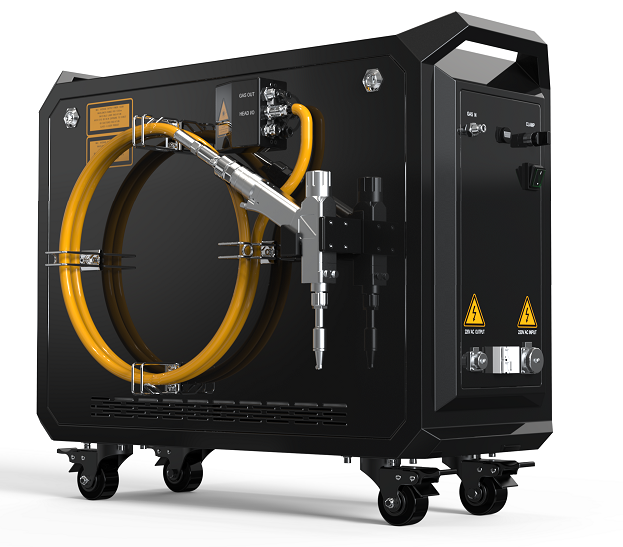

We provide three brands of air-cooled welding machines for you to choose from. (IPG MAX GW ) Please tell me your needs and proceed quickly Penny +8615391557130

At present, the laser welding machine equipment on the market is mainly a water cooling solution, that is, the heat is taken out of the laser through the external circulation of the chiller.

AAir-cooled fabie laser welding machine

Once again leading the technical development direction of fiber lasers.

feature

1. The output power is 1500W, and the welding penetration reaches 4mm

2. High electro-optic conversion efficiency ≥ 60%

3. Single pendulum welding head, adjustable welding width

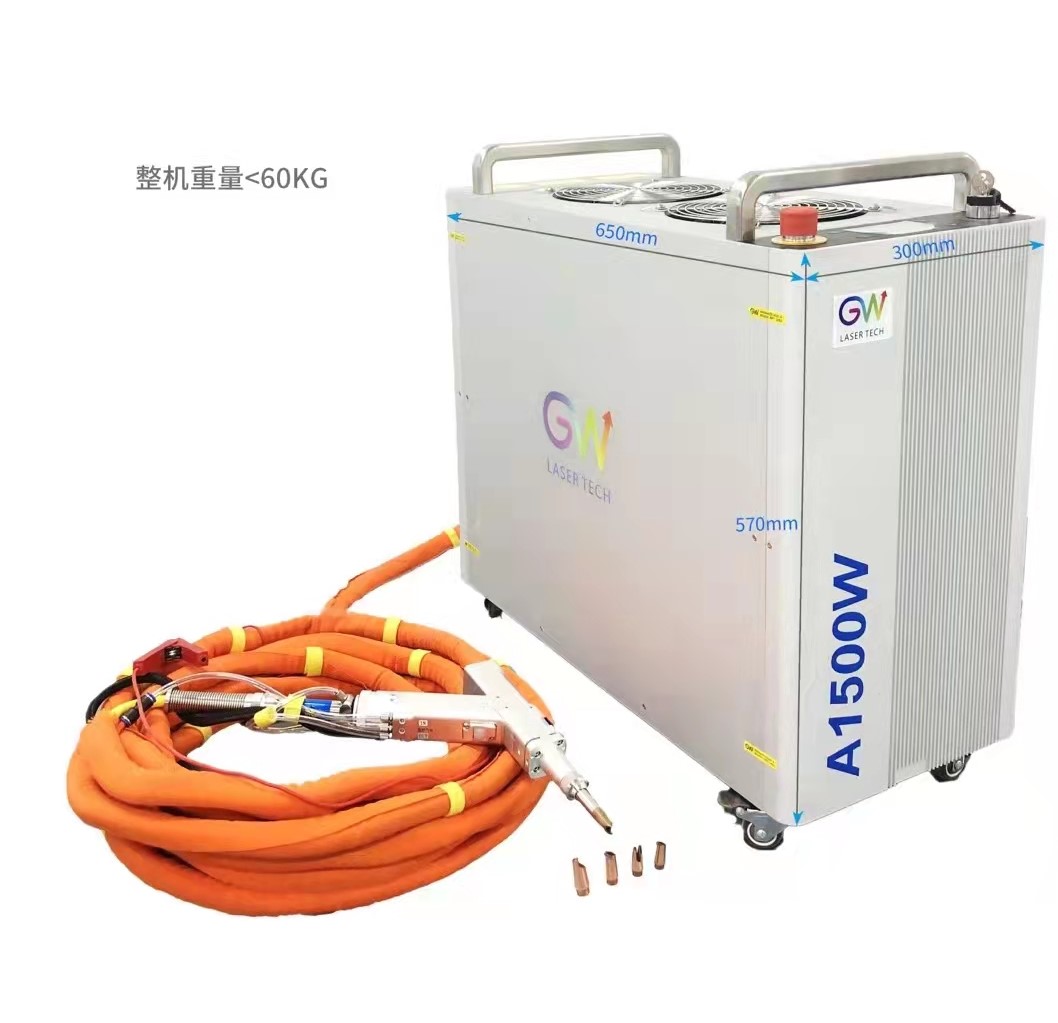

4. The weight of the whole machine is less than 60kg, with compact design and small volume

5. Unique air-cooled design, low power consumption, energy saving and environmental protection, power supply 220VAC-18A

6. Triple protection design, built-in air pressure detection device

Specification

Model	A1000W	A1500W
laser power	1000W	1500W
wavelength	1070nm	1070nm
Output fiber length	50 microns/8 meters	50 microns/8 meters
Spot width	5 mm	5 mm
stainless steel thickness	3 mm	4mm
carbon steel thickness	3 mm	4mm
Aluminum alloy thickness	3 mm	4mm
Brass Thickness	1mm	1mm
electricity demand	220VAC/50Hz/60Hz	220VAC/50Hz/60Hz
total power	4.2 kW	4.8 kW
Weld head size	296 x 39 x 147mm	296 x 39 x 147mm
total measurement	650×300×621mm	650×300×621mm
gross weight	60 kg	62 kg
