Cutting+welding+cleaning machine 1500w fiber laser welding system 3 in 1 metal welding machine

Supplier: Shandong Hengming Intelligent Technology Co., Ltd.
Region: Shandong, China
Contact: Mr tao sun
Price: $5680.00 / 1 - 9 sets
$4900.00 / 10 - 29 sets
$3910.00 / >=30 sets
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	100 plants per month	Focal Spot Diameter:	0.6---3mm
brand:	GH laser	Health status:	new
Applicable industries:	Building material stores, manufacturing plants, machine repair shops, print shops, construction, energy and mining, advertising agencies	product name:	Handheld Laser Welding Machine
Laser source brand:	RECI/MAX/Raike/JPT	Packaging Details:	wooden box
port:	Qingdao Port	wavelength:	1064 nautical miles
Core component warranty:	3 years	Certification:	International Organization for Standardization
Mechanical test report:	if	Video shipment inspection:	if
maximum. Output Power:	5000W	aspect:	1350mm600mm1300mm
Marketing Type:	New Products 2021	Servo motor brand:	harvest
Rail brand:	harvest	usage:	Laser welding
Weight (kg):	145 kg	After-sales service provided:	online support
Single pulse energy:	110J	Package preview:
Warranty:	3 years	Core components:	Pressure vessel, PLC, others
Laser head brand:	harvest	Pulse Width:	0.5-20 milliseconds
Origin:	Shandong China	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Main selling points:	easy to operate	Control system brand:	harvest

Product Description

Three-in-one handheld laser welding machine

One laser machine can perform laser welding, laser cleaning and handheld metal cutting at the same time. There is no need to purchase multiple lasers for these different laser processing operations.

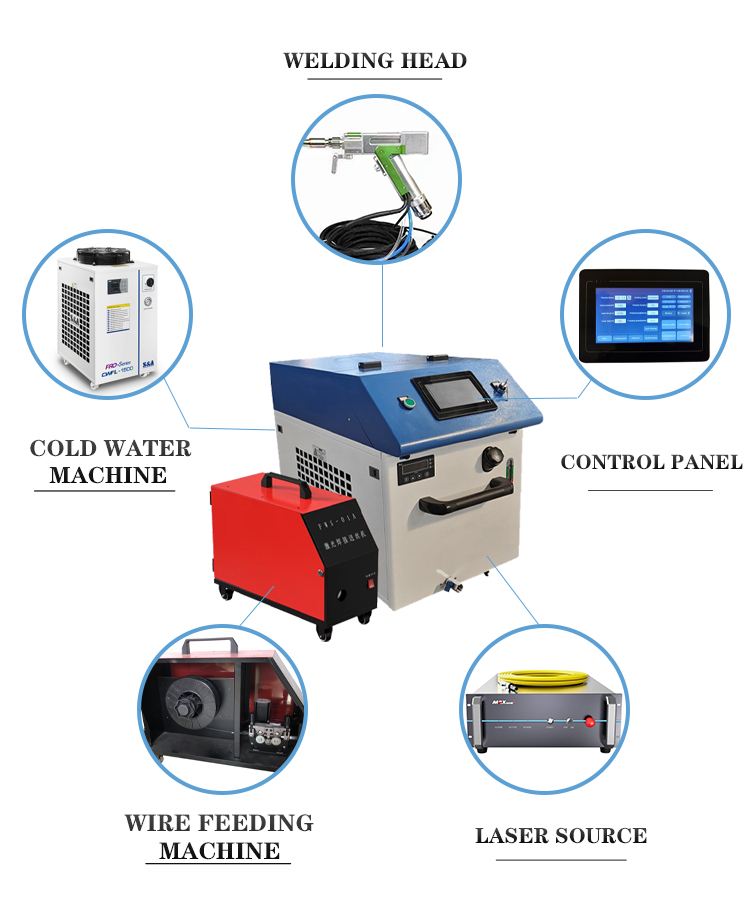

detailed drawing

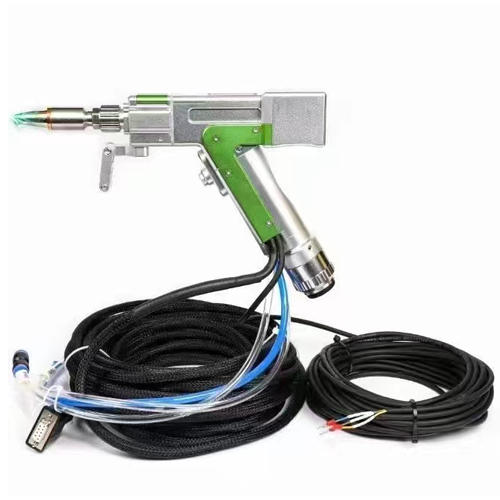

welding torch

The hand-held lightweight laser welding head weighs only 710g, allowing operators to work longer every day. There are double protective lenses and temperature sensors inside the laser head to provide maximum protection.

system

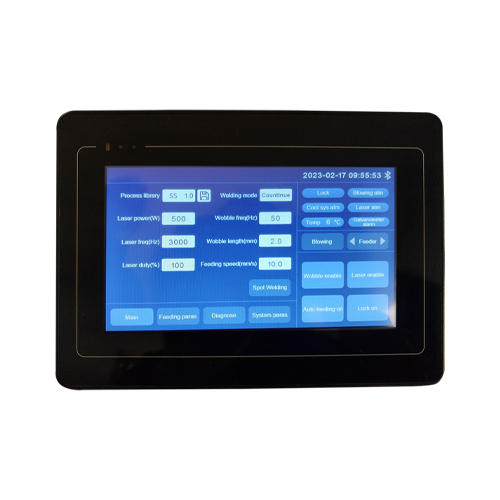

Change welding parameters via touch screen control panel. Users can save the calibration parameters in the system and quickly set them up before work.

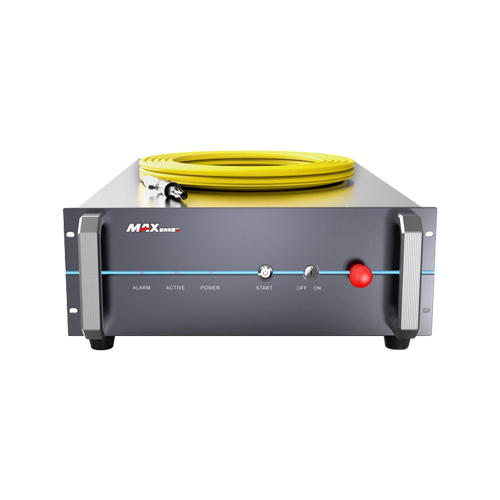

laser

High stability, energy saving, low maintenance cost and improved production efficiency

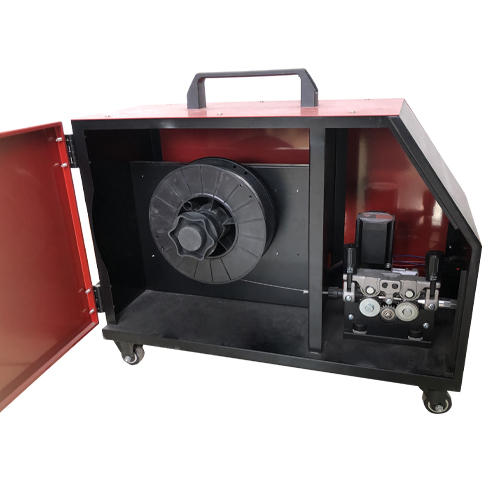

Our wire feeding system supports metal wires with diameters up to 0.8-1.0-1.2-1.6mm, and is equipped with dual motors in the housing to provide more stable support for machine operation.

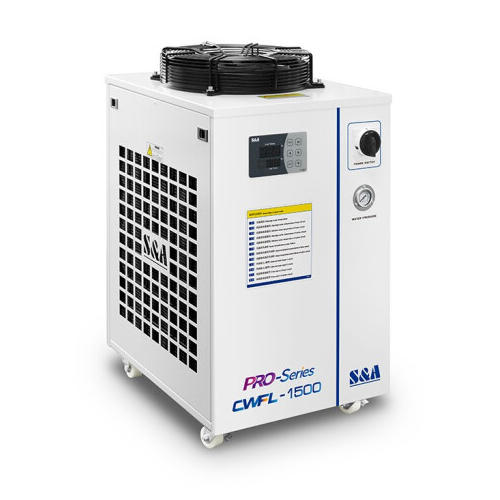

High-precision temperature control system, double temperature control cycle refrigeration function, two independent temperature control systems simultaneously cool the fiber optic core and QBH connector Multiple alarm functions, all-round protection of the laser

Product parameters

Equipment technical parameters
Model	GH-1000W	GH-1500W	GH-2000W	GH-3000W
laser power	1000W	1500W	2000W	3000W
Welding thickness range	0.3-3.5mm	0.3-4.5mm	0.3-6mm	0.3-8mm
laser source	Raycus/Max/IPG/JPT
Three functions	welding+cutting+cleaning
Three functions	220V	220V	220V	380V
laser head	Ruifa/Super Strong
Fiber length	10M

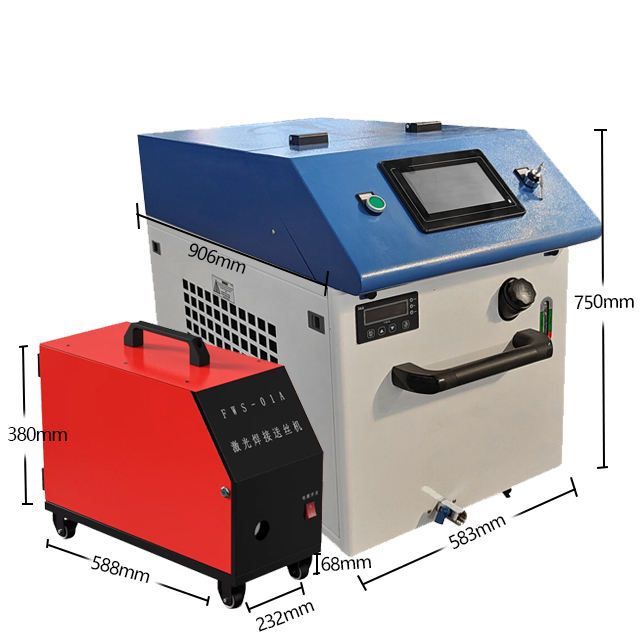

Machine size	906583705 mm	906583705mm	906583705 mm	1105001080mm
machine weight	145KG	145KG	145KG	185KG
Warranty time	The whole machine is guaranteed for 3 years, free maintenance for life
Welding method	Spot welding/continuous welding/fish scale welding
Welding method	Inner corner/outer corner/right angle/wired or wireless
Welding materials	Stainless steel/iron/aluminum/galvanized sheet/copper
head weight	Gun head 0.71KG
It supports 15 languages	The system supports Chinese, English, Russian, German, French, Korean, Japanese, Spanish, Portuguese, Arabic, Polish, Czech, Thai, and turkish
