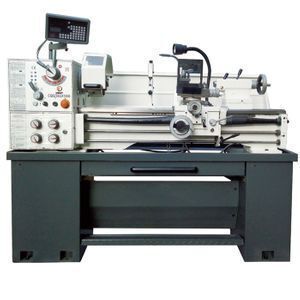

Bench lathe C0636A precision metal lathe machine with CE Standard

Click here to contact
Product details
Selling Units:Single item;Automatic Grade:Manual;
Model Number:C0636A;Spindle bore:38mm;
Power (kW):1.5;Cross slide travel:118mm;
Key Selling Points:High Productivity;Type:Horizontal;
Voltage:110V 220V 380V;Single package size:194X75X151 cm;
Max. Length of Workpiece (mm):1000;Max. Swing Diameter:360mm;
Dimension(L*W*H):1940x760x760mm;Warranty:1 Year;
Place of Origin:Anhui China;Weight:565 KGS;
Width of bed (mm):187;CNC or Not:Normal;
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Construction works ;
Certification:CE,ISO;Swing over bed:360mm;
Max. Swing Diameter (mm):360;Distance between centers:1000mm;
Single gross weight:700 KG;Brand Name:WMT;
Weight (KG):650;Package Type:Lathe machine with Plywood case in carton, international package standard.;
logo printing:OEM service;Power(W):1.5kw;
Condition:New;Range of Spindle Speed(r.p.m):2000;

Features:

Precision ground and hardened bed ways.

The spindle is supported with precision roller bearings.

Headstock gears are made of high quality steel ground and hardened.

Easy operating speed change levers.

Removable gap is provided for larger diameter work.

Easy operating gear box has various feeds and thread cutting function.



SpecificationsC0632A×750/1000mmC0636A×750/1000mm
C0632B×750/1000mmC0636B×750/1000mm
Swing over bedΦ330mm(13")Φ360mm(14")
Swing over cross slideΦ198mm(7-25/32")Φ212mm(8-1/6")
Swing over gapΦ476mm(18-3/4")Φ491mm(9-1/3")
Distance between centers750mm(30")/1000mm(40")
Bed width187mm(7-3/8")
Spindle bore and nose        A: Φ38mm(1-1/2") / D1-4 camlock
B: Φ52mm(2")/D1-5 camlock
Taper in noseMT5
Speeds number8 or 16(pole changeable motor:optional)
Speeds range70-2000rpm or 35-2000 rpm(2 speed motor)
Leadscrew thread8 TPI or 3mm pitch
Cutting tool max section16×16mm(5/8"×5/8")
Threads imperial pitches36 Nos. 8-112TPI or (34 Nos. 4-56TPI)
Thread metric pitches28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)
Longitudinal feeds imperial36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev)
Longitudinal feeds metric36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev)
Cross feeds imperial36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev)
Cross feeds metric36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev)
Tailstock barrel taper and travelMT3 100mm (3-15/16")
Main motor1.5KW/3 PH or 1 PH
Cross slide travel 160mm(6-5/16")118mm(4-5/16")
Compoud rest travel 68mm(2-11/16")
Net /Gross weight570/620kg  620/670kg610/660kg  650/700kg
Packing size1890/1940 X 750 X 1510mm



Machine details

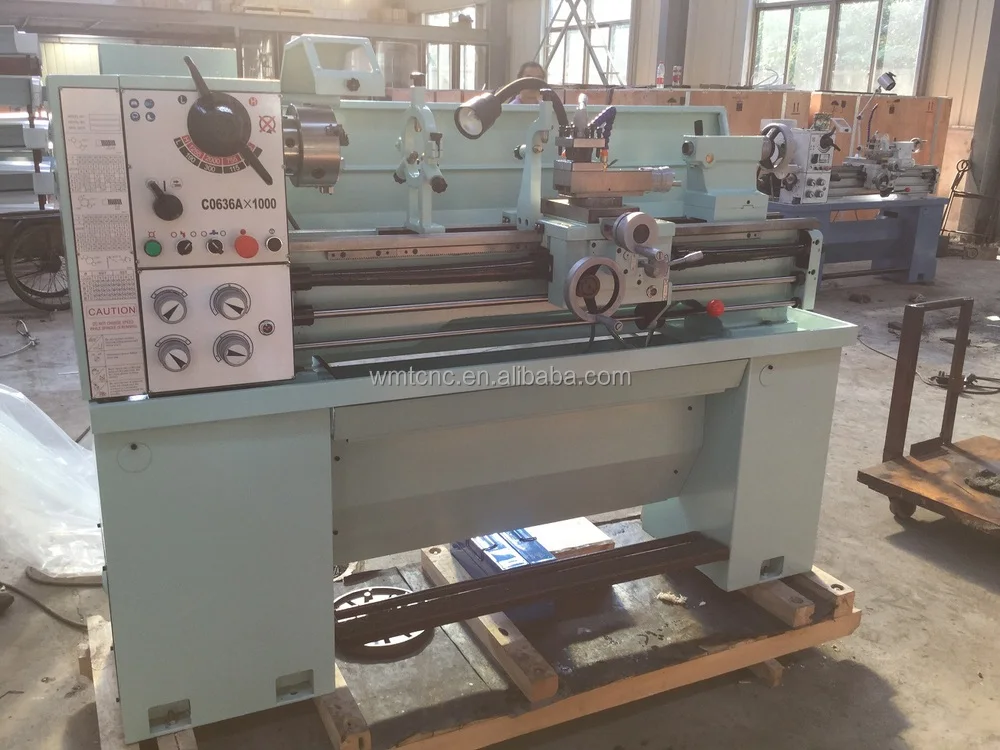

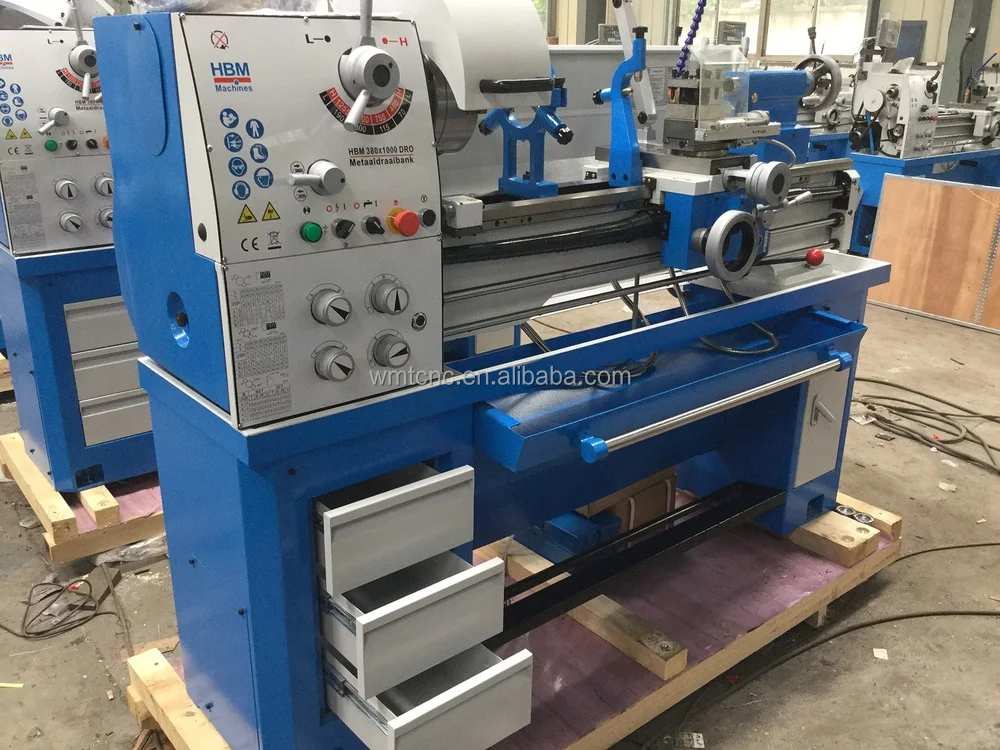

1) C0636A (spindle is 38mm) with old style machin stan

2) we also have new style machine stand and circle type headstock

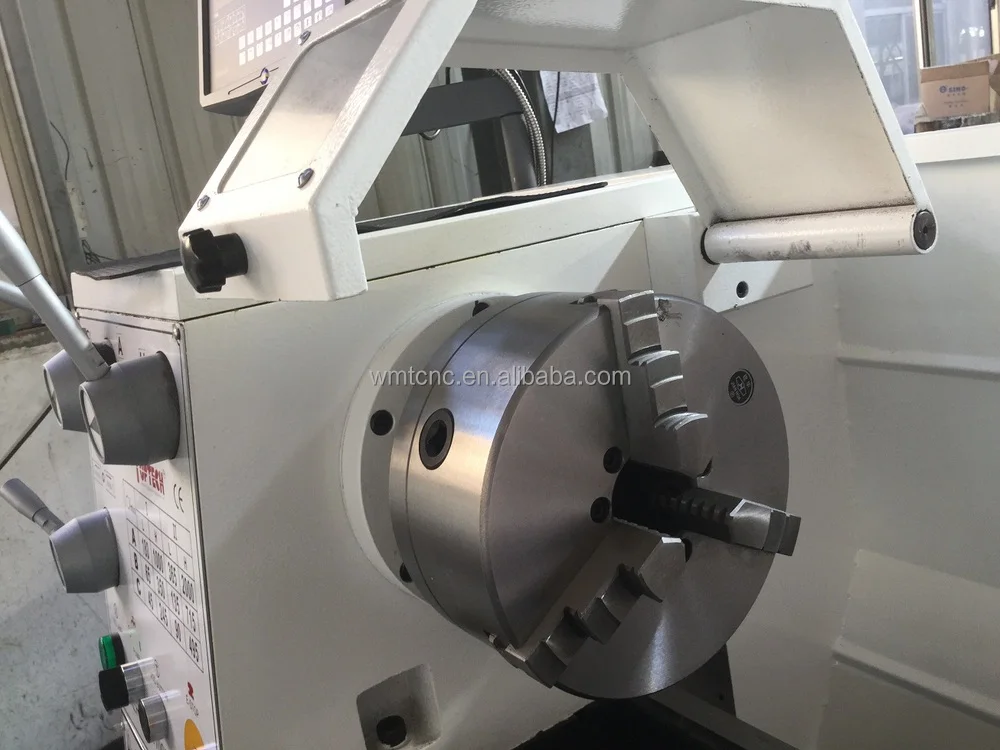

 3) 3-jaw chuck clear pic.

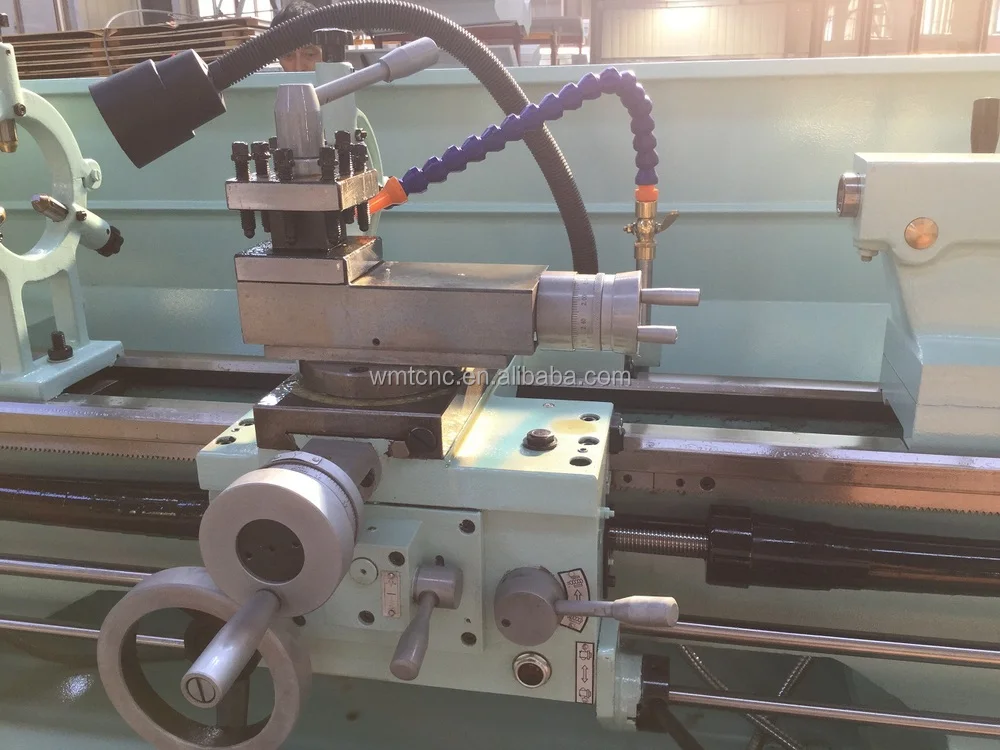

4) 4-Station toolpost

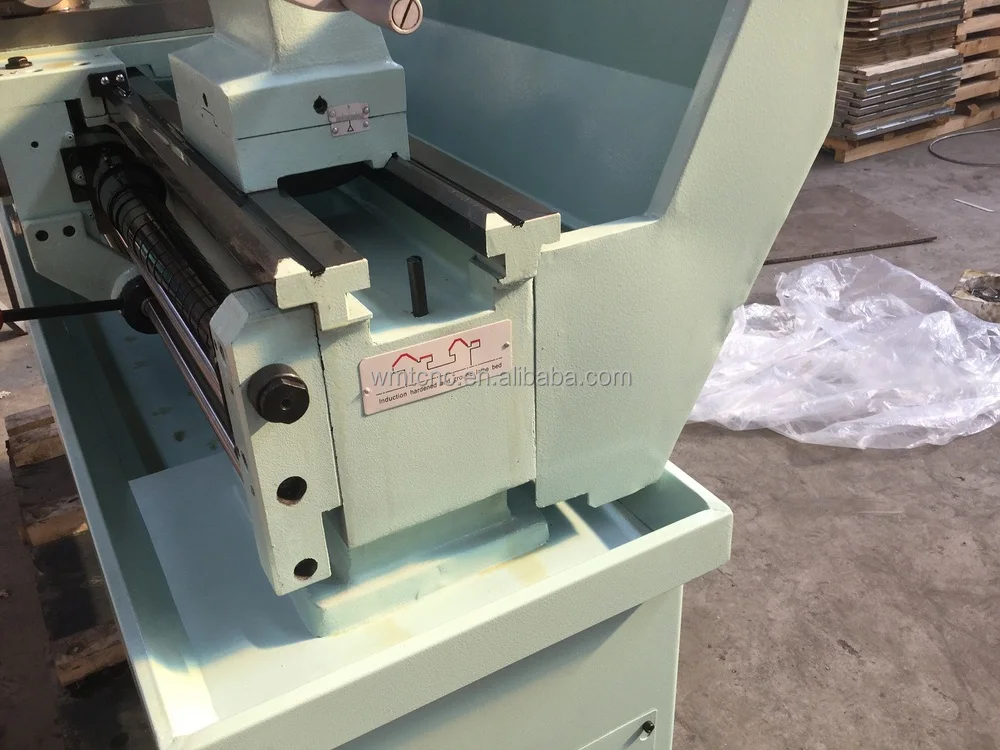

5) Hardened bed

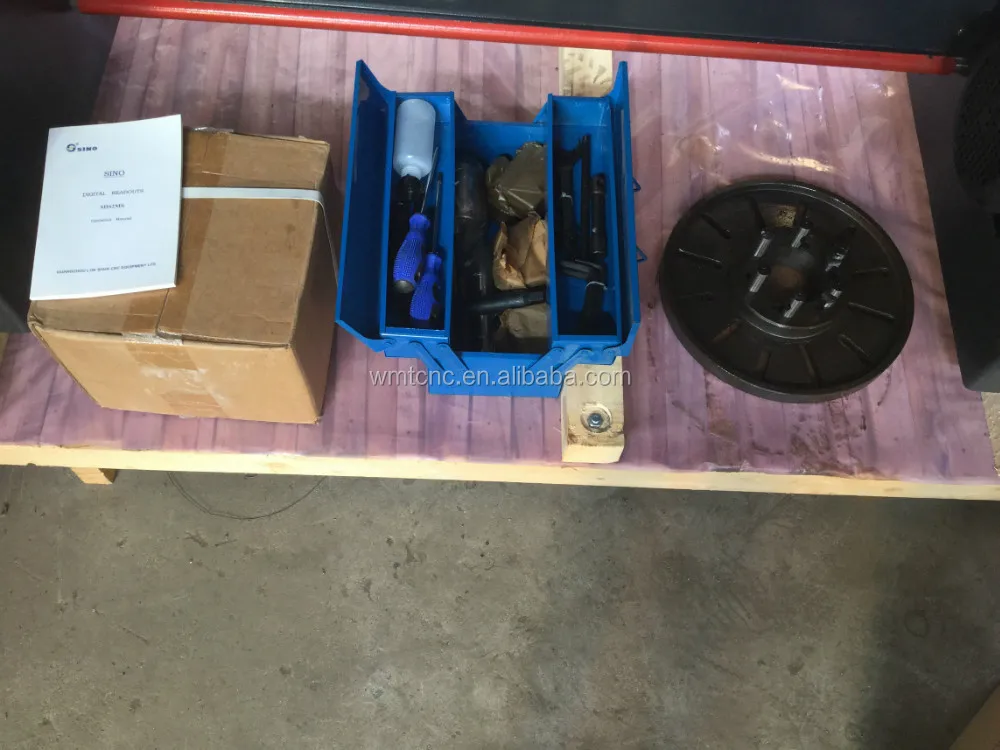

6) tool box with acessories

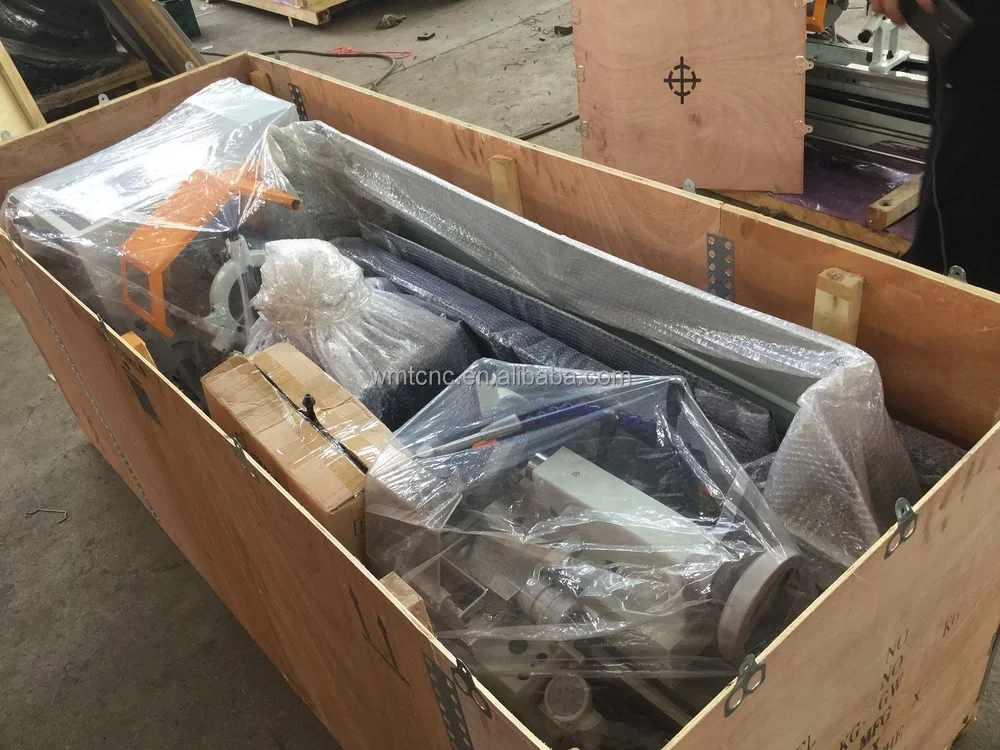

7) careful an safe package



Standard accessories

3-jaw chuck, 4-jaw chuck

coolant system, working light

foot brake, steady rest

follow rest, chasing dial indicator

change gears set, tool box and tool.

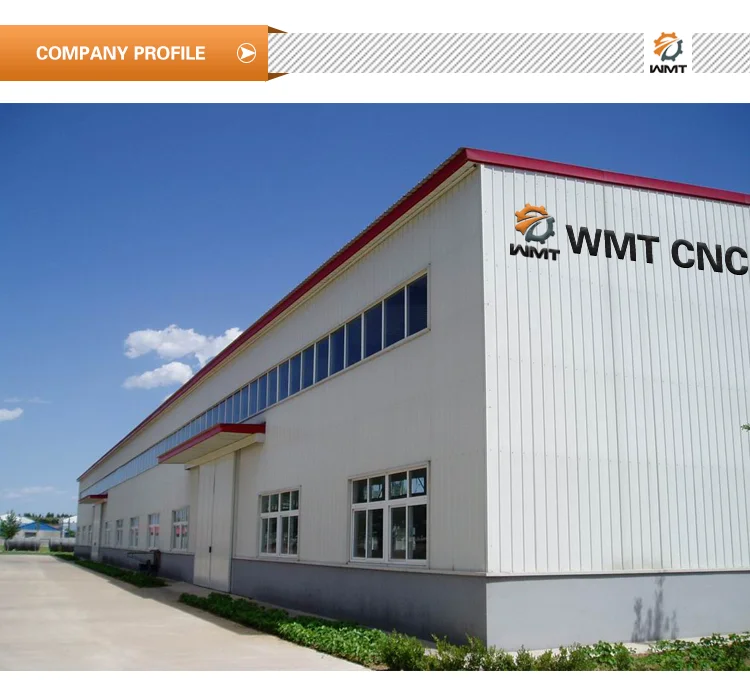

Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
