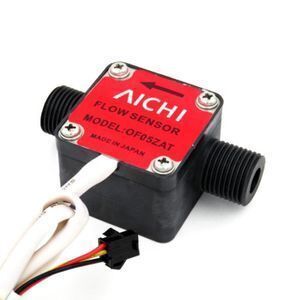

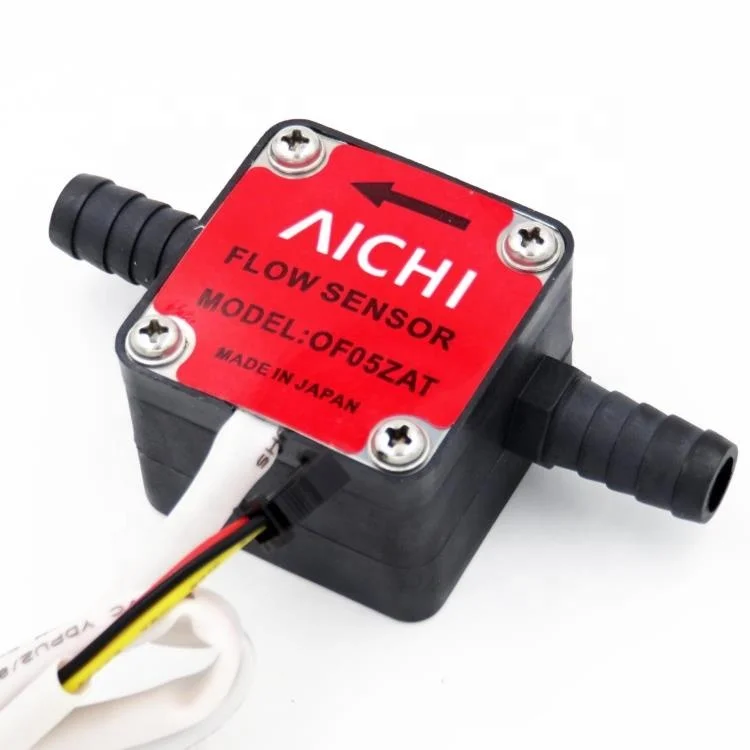

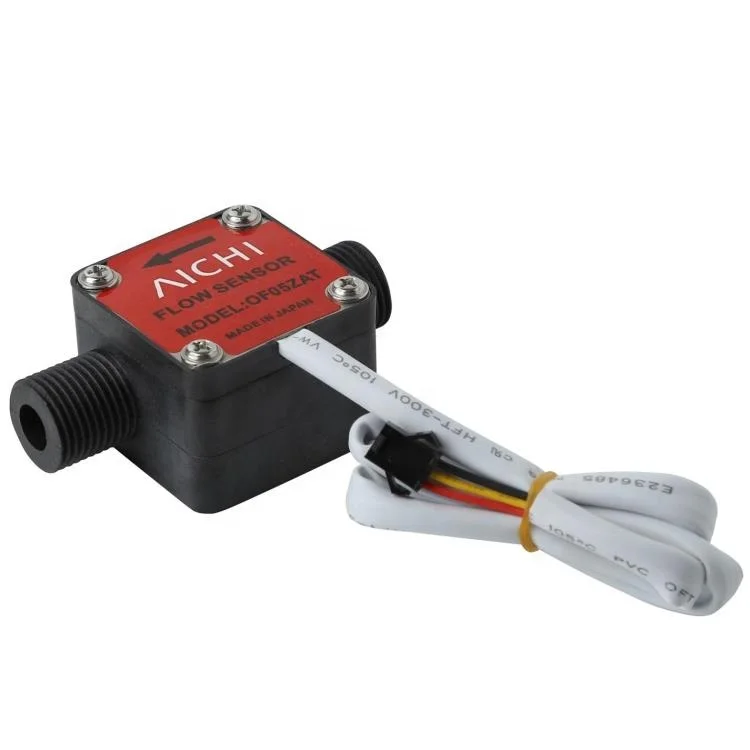

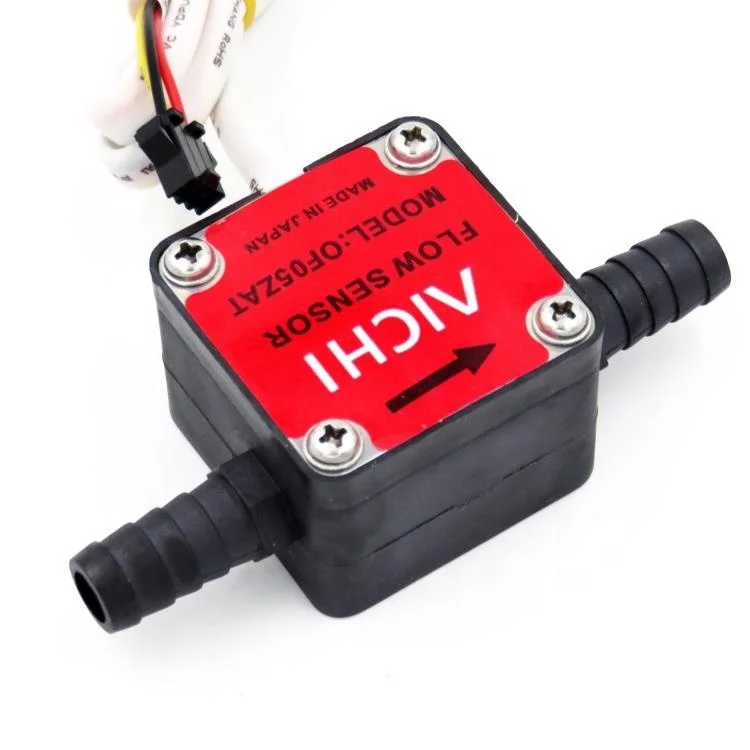

Elliptical gear flowmeter for lubrication milk Honey High precision flow sensor 4 in charge For viscous liquids

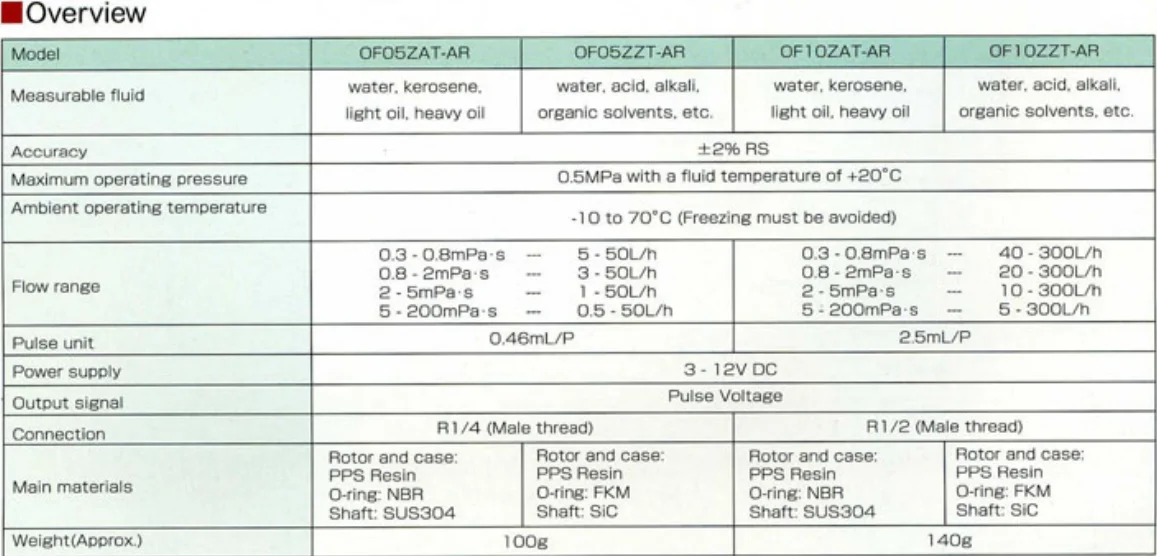

Model

OF05ZAT

OF05ZZT

OF10ZAT

OF10ZZT

Liquid viscosity

0.3 - 0.8 mPa.s

0.085~0.85 L/min

0.7 ~5 L/min

0.8 - 2 mPa.s

0.05 ~0.85 L/min

0.35 ~5 L/min

2 - 5 mPa.s

0.017~0.85 L/min

0.17 ~5 L/min

5 - 200 mPa.s

0.0085~0.85 L/min

0.085~5 L/min

Measurement Medium (liquid)

Water/hot water/kerosene/light oil/heavy oil

Weak acid, weak alkali

Water/hot water/kerosene/light oil/heavy oil

Weak acid, weak alkali

Accurate values

±2% RS (Standard installation)

Pulse value

0.46 mL/p

2.5 mL/p

Pressure loss

lower 4 kPa

lower10 kPa

Maximum operating pressure

0.5 MPa at 20°C

Medium temperature

-10 ~ 70 °C

Ambient temperature/Humidity

-20~80°C / 35~85%RH(No condensation)

Output signal

Voltage Pulse Output(OF*****-AR)

Voltage Pulse 3Wire type, wire length approx.480

Voltage Pulse ratio 2/8<8/2

Applied Voltage 12VDC ,High:10 VDC/ Low :1 VDC

Open Pole Set output(OF*****-MR)

Capacity: 6mADC (4-Wire System),Wire length approx.600mm

Supplying power supply

3-12 V DC

Receiving Liquid End

R1/4"(5 mm)

R1/2"(10 mm)
