Lab Scale Two Roll Mill Machine Price

Product details
Place of Origin:Guangdong China;Condition:New;
Port:shenzhen;Drum revolutions ratio:Standard revolutions ratio 1:1.25;
After-sales Service Provided:Free spare parts,Field maintenance and repair service,Video technical support,Field installation, commissioning and training,Online support;model:Lab Scale Two Roll Mill Machine Price;
Power source:AC380V, 15A;Weight:380kg;
Voltage:380V;Applicable Industries:Rubber And Plastic Industry;
Mixed capacity:0.5-1kgs / 2-3kgs / 5-7 kgs;Packaging Detail:Lab Scale Two Roll Mill Machine is packed in a polybag, then packed as export safety wooden case;
Temperature:room temperature ~ 300 ℃;Roller dimensions:diameter 3.9 "* L13.7";
Warranty:2 Years;Brand Name:ZL;
Roller hardness:HRC 50 ~ 60;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Lab Scale Two Roll Mill Machine suitable any payment way;
Dimension(L*W*H):960*550*1150 mm;Warm-up time:room temperature ~ 150 ℃ about 20min;
Key Selling Points:Multifunctional;Year:custom;
Power(W):2800W;Temperature accuracy:± 3 ℃;
Supply Ability:100 Set/Sets per Month Lab Scale Two Roll Mill Machine in stock;Certification:CE/ISO;

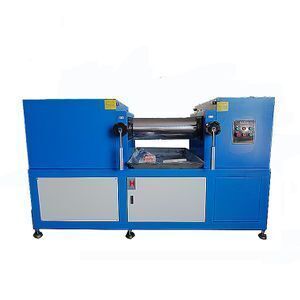

Lab Scale Two Roll Mill Machine Price

Product Description



Introduction:

Two roll mixing machine are engineered to provide unmatched performance for masticating and kneading natural

rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,

hot mill and mixing mill of natural and synthetic rubber for rubber product factory



Application:

Plastic open two roll mixing mill. It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.



Feature:

1. Construction of mill rolls: drilled roll, bored roll, grooved roll

2. We can design speed ratio as per customers' formula and processing requirements.

3. Frame, frame cap and base are welded and treated by annealing for stress relieving.

4. Rolls material is chilled cast alloy iron which hardness is reach to 70HB.

5 Brake and emergency stop device can ensure the safety of personnel and equipment.

6 Auto feeding oil or grease lubrication, it is easy to maintain and protect machine.

7 Human nature designed controlling system ensure labor safety.

8. . Methods of adjusting roll nip: manual or electric



Intelligent control panel and PLC control system:

1. Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code.

2. The control system can be set up to 20 mixing steps, save 20 recipe spaces.

3. The control system is capable of remote import of the process recipe and data monitoring, communicating with MES via Ethernet communication interface.

4. An Ethernet communication interface and 20% of the control points are reserved. Touch screen is provided.



Technical parameters:

Model



ZL-3018-76

ZL-3018-120

Zl-3018-160

ZL-3018-200

Zl-3018-230

Zl-3018-300

ZL-3018-400

Diameter of roll

mm

76

120

160

200

230

300

400

Length of roller face

mm

300

350

350

500

650

650

900

Mixing Capacity

kg

0.002-0.6

0.002-2

0.002-2.8

0.002-5

0.005-10

1-15

5-30

Front roll surface speed

rpm

19

19

19

19

19

19

19

Friction ratio



1:1.30

1:1.35

1:1.35

1:1.35

1:1.27

1:1.27

1:1.27

Roll gap range

mm

0-3

0-6

0-6

0-8

0-12

0-12

0-15

Driving Power

KW

1

1.5

2.2

7.5

11

30

37

Heating Mode

Electricity heating , Oil Heating ( option)

Cooling Mode

Water Cooling ( option)

Roll Temperature

Room temperature -- 300℃

Roll Hardness

HRC 50 ~ 60

Temperature Accuracy

± 2 ℃ (we adopt the high accuracy PID micro computer controller)

Safety device

It have 6 safety buttons and safety guard is option

Machine weight

kg

160

460

660

860

1960

2960

3800

Overall dimension

mm

1100x400x1180

1100x550x1380

1200x650x1380

2200x750x1380

2200x950x1580

2600x950x1580

5295x1789

x170

Power

380V 3 phase 50-60hz
