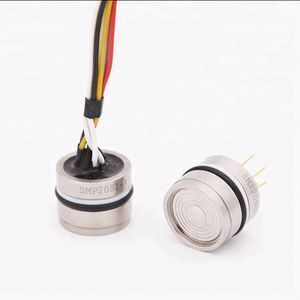

OEM low cost water pressure sensor
- 12.00 >=100 pieces
| Measuring Range: | -100kPa...0kPa~20kPa...70MPa; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; |
| Port: | Xi'an; | Product name: | Temperature and Pressure dual output pressure sensor; |
| Brand Name: | XI'AN SENSORS; | Packaging Detail: | standard carton for sensor to export; |
| Volume: | 19mm*15mm; | Model Number: | SMP2081; |
| Place of Origin: | Shaanxi China; | Material: | SS 316L; |
| Supply Ability: | 30000 Piece/Pieces per Month; |
Features
n Range: -100kPa…0kPa~20kPa…70MPa
n Temperature and pressure dual output
n Imported chip, laser trim
n General size: Φ19mm×15mm
Application
n Industrial Process Control
n Hydraulic system
n Gas, liquid and vapor pressure detection
n Hydrological monitoring
Outline construction (unit: mm)
Range<20MPa Range≥20MPa
Parameter
Construction Condition | |
Diaphragm material | SS 316L |
Housing material | SS 316L |
Pin Wire | Kovar/100mm silicone rubber wire |
Back pressure tube | SS 316L (gauge and negative pressure only) |
Seal ring | Nitrile rubber |
Electrical Condition | |
Power supply | 1.5mADC |
Impedance input | 2.5kΩ~5kΩ |
Impedance output | 2.5kΩ~5kΩ |
Response | (10%~90%):<1ms |
Insulation resistance | 100MΩ,100V DC |
Overpressure | 2 times FS |
Environmental Condition | |
Media applicability | Fluid which has no corrosion on stainless steel and nitrile rubber |
Shock | No change at 10gRMS,(20~2000)Hz |
Impact | 100g,11ms |
Position | Deviate 90° from any direction, zero change≤±0.05%FS |
Basic Condition | |
Environment temperature | (25±1)℃ |
Humidity | (50%±10%)RH |
Atmospheric pressure | (86~106) kPa |
Power supply | (1.5±0.0015)mA DC |
Company Profile of Xi’an Sensors Co., Ltd
Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor. Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.
Q1: Are you manufacturer or trading company?
A: We are manufacturer, we have R&D team with more than 20 years of experience. We are located in NO 56, ZhangBa Road, High-tech Zone, Xi’an, China. Welcome to visit our company!
Q2: Do you have any certification?
A: Yes, we have RoHS, ISO 2015, we can offer certificates.
Q3: Can we use our logo on the products?
A: Yes. We can provide OEM products for you.
Q4: What is the warranty of your products?
A: Our service is free exchange within three months and one year maintenance guaranteed for non-man-made damages.
Q5: How to place an order?
A: We’d like to know the following information: application, medium, working temperature, testing range, output signal, Process connection, electrical connection, and other related parameters.
Q6: What is your MOQ?
A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.
Q7:Could I get samples?
A: Yes, we have materials in stock to help you to get the samples as soon as we can.
