Hot sale mems China oil pressure transmitter with excellent quality
- 29.00 >=50 pieces
| Brand Name: | XI'AN SENSORS; | Pressure type: | Gauge Pressure Absolute Pressure Sealed Pressure; |
| Packaging Detail: | standard carton for export, 190*130*70mm; 310*210*180mm;; | Port: | Xi'an; |
| Power supply: | 9~30V DC (current model), 12~30V DC (voltage type); | Pressure range: | -0.1MPa...0~0.01MPa...100MPa; |
| Place of Origin: | Shaanxi China; | Supply Ability: | 30000 Piece/Pieces per Month; |
| Model Number: | SMP4014; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Accuracy: | ±0.5%FS; |
Overview

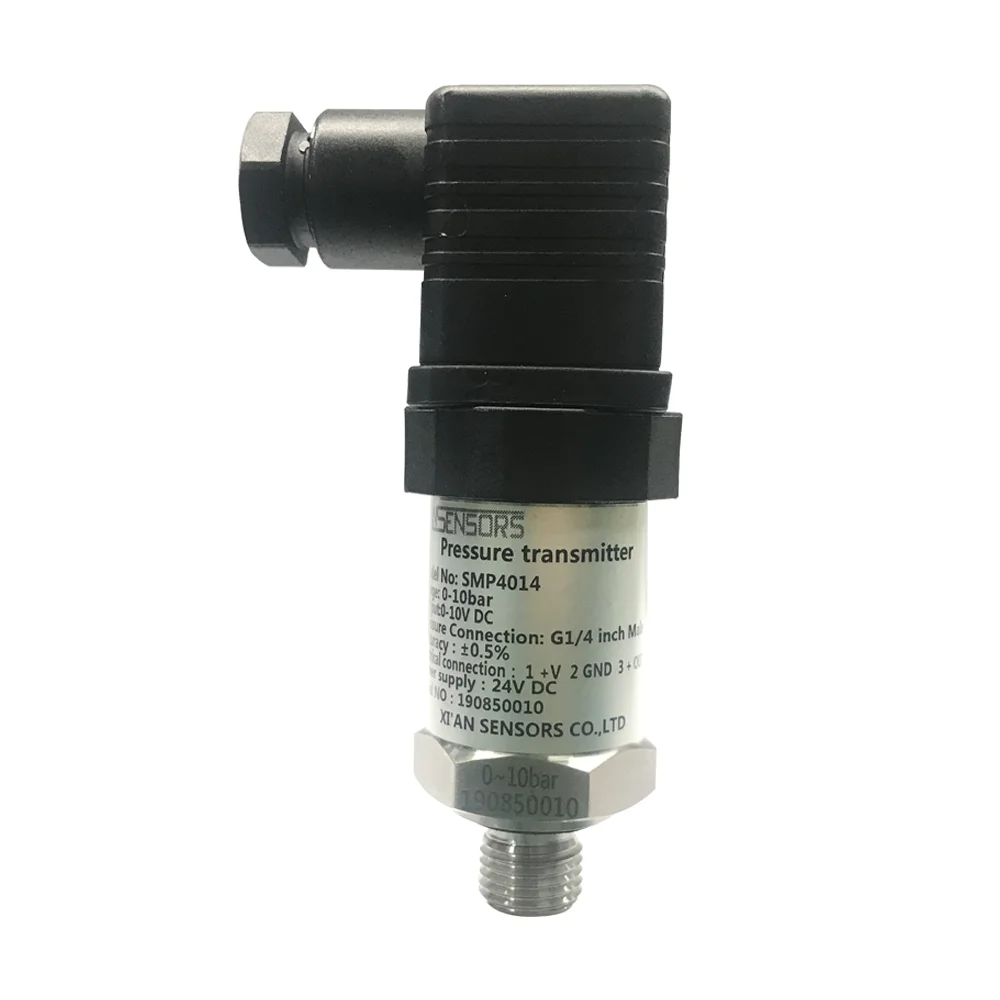

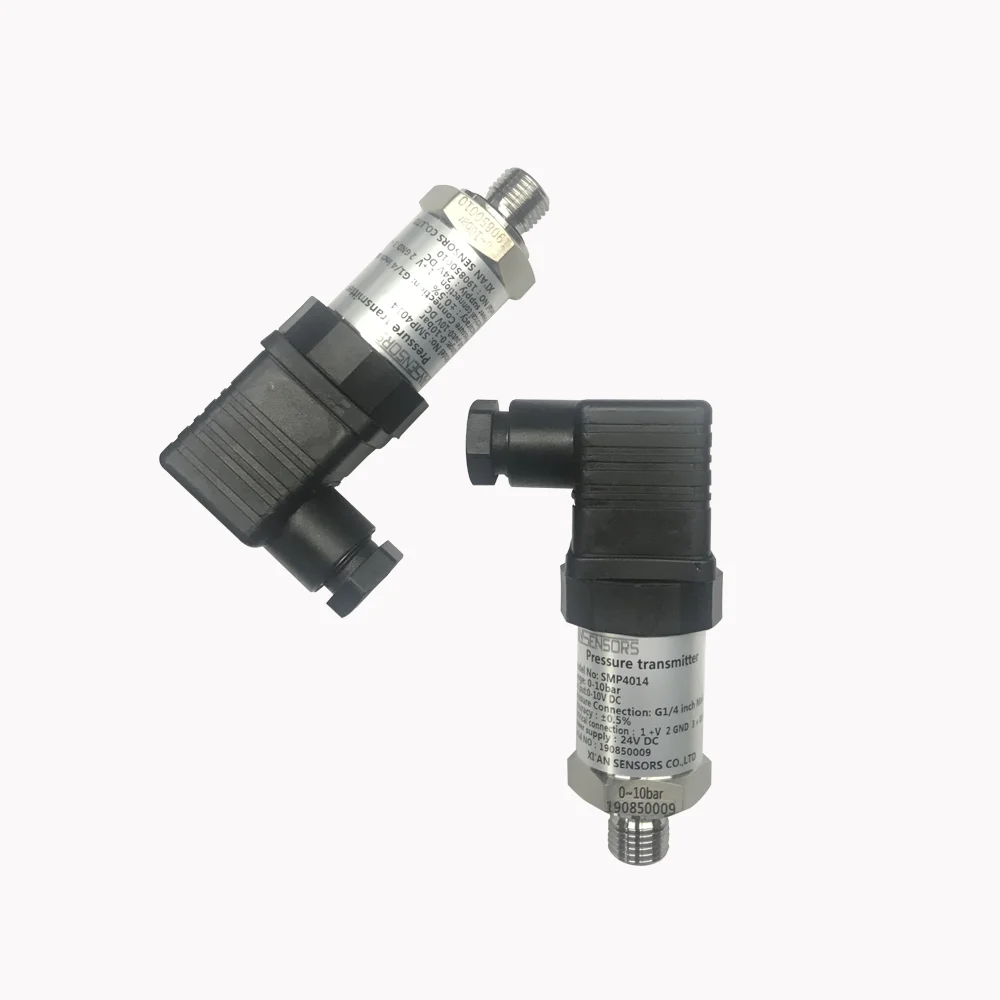

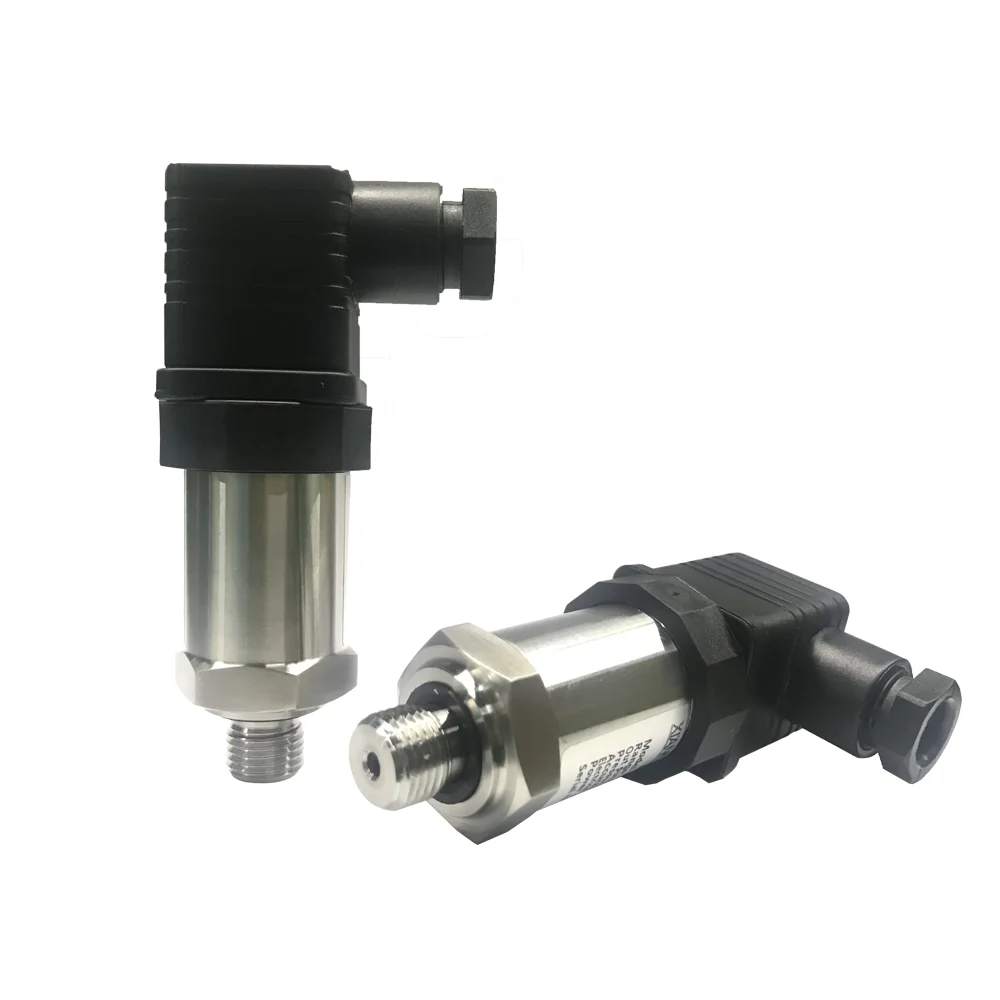

SMP4014 is an economical, high-stability, small-volume, fluid-hydraulic pressure transmitter developed and manufactured by our company. It uses high-stability and high-reliability piezo-resistive pressure sensors and high-performance transmitter-specific circuits to provide stable and reliable overall performance.
Features
n Small size, light weight, easy to install
n SS 316L diffused silicon pressure sensor
n Temperature compensated and aged, stable and reliable performance
n Multi-circuit protection, high reliability, and meet EMC requirements
n High precision, high stability
Applications
n Oil, chemical, electricity
n Urban water supply, hydrological exploration, geology
n Fluid pressure detection and control industries
Outline structure ( Unit: mm)
Parameters
Pressure parameter | ||
Range | 0MPa~10MPa…100MPa | |
Overload | 2times FS | |
Pressure type | Gauge ,Absolute, Sealed gauge | |
Electric parameter | ||
Output Type | Current | Voltage |
Power supply | 9~32V DC | 5V DC |
Output signal | 4mA~20mA DC (2 wire) | 0.5V~4.5/0~5V DC (3 wire) |
Load resistance | ≤(U-9)/0.02 | ≥10k |
Insulation resistance | 100MΩ,100V DC | |
Structural parameters | ||
Housing | Stainless steel | |
Protection class | IP65 | |
Ambient parameter | ||
Media applicability | Fluid which has no corrosion to Stainless steel 316L and Viton | |
Compensation temperature | -10℃~80℃ | |
Operating temperature | -30℃~+80℃ | |
Storage temperature | -40℃~125℃ | |
Performance | ||
Accuracy | ±0.5%FS(Max.) | ±0.25%FS(Min.) |
TCZ | 0.03%FS/℃(≤100kPa) ;0.02%FS/℃(>100kPa) | |
TCS | 0.03%FS/℃(≤100kPa) ;0.02%FS/℃(>100kPa) | |
Long term stability | ±0.3%FS/year (Max.) | |

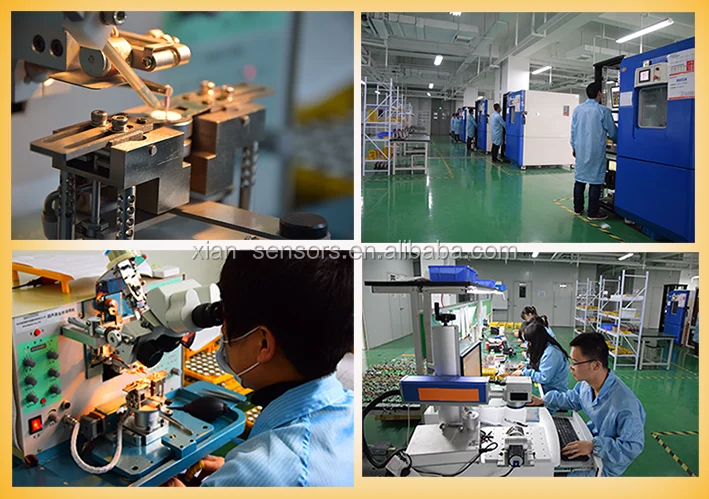

Company Profile of Xi’an Sensors Co., Ltd
Xi’an Sensors Co., Ltd is a high-tech enterprise absorbed in providing customers with all kinds of pressure detection solution, design and produce pressure sensor.Our series of sensors have a wide range of applications including detection and automatic process control in transportation, energy, chemicals, shipbuilding, aviation, mechanical engineering, hydrology, medical and household appliances.
Q1: Are you manufacturer or trading company?
A: We are manufacturer, we have R&D team with more than 20 years of experience. We are located in NO 56, ZhangBa Road, High-tech Zone, Xi’an, China. Welcome to visit our company!
Q2: Do you have any certification?

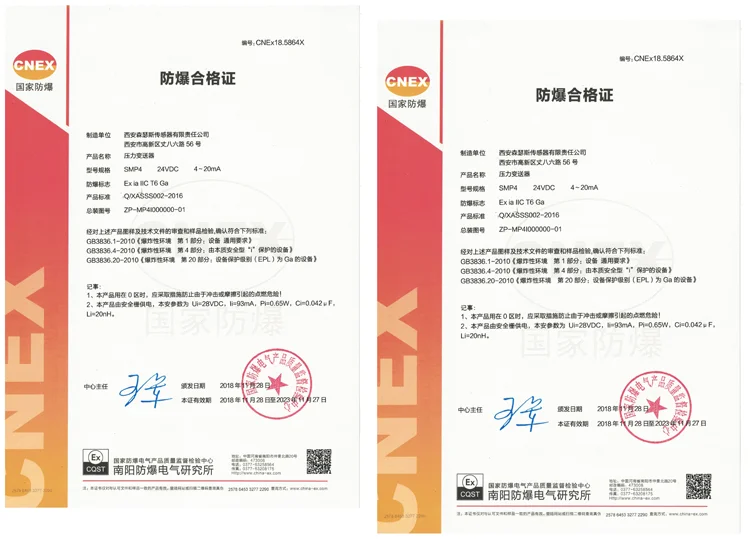

A: Yes, we have RoHS, ISO 2015, we can offer certificates.
Q3: Can we use our logo on the products?
A: Yes. We can provide OEM products for you.
Q4: What is the warranty of your products?
A: Our service is free exchange within three months and one year maintenance guaranteed for non-man-made damages.
Q5: How to place an order?
A: We’d like to know the following information: application, medium, working temperature, testing range, output signal, Process connection, electrical connection, and other related parameters.
Q6: What is your MOQ?
A: We have no MOQ limits, 1 piece for test purpose at first is acceptable.
