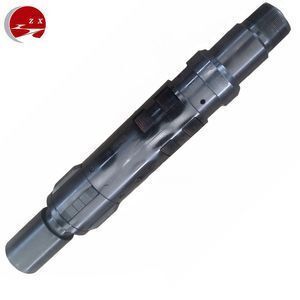

Drag Block tubing anchor catcher
- 500.00 piece
| Port: | Qingdao/Tianjin; | Connection Thread1: | 2-7/8EU; |
| Standard: | API; | Payment Terms: | L/C,T/T,Western Union; |
| Connection Thread2: | 3-1/2EU; | Working Temapreture: | 180 degrees Celsius; |
| Packaging Detail: | wooden case or as client's request; | Max OD: | 114-198; |
| MIn ID: | 62-90; | Suitable Casing: | 5-1/2,6-5/8,7,9-5/8; |
| Model Number: | 7; | Type: | tubing anchor; |
| Type: | TAC; | Size: | 5-1/2,6-5/8,7,9-5/8; |
| Supply Ability: | 100 Piece/Pieces per Month; | Material: | 4140; |
Drag Block tubing anchor catcher
The Tubing Catcher is a retrievable double grip tubing anchor designed to anchor the tubing string in tension or in compression.
Anchor the tubing string in tension or compression in wells of any depth. This prevents movement of the tubing string during pumping operation, thus increasing pump efficiency and decreasing rod wear. This Anchor Catcher may also be used for progressive cavity pumps to prevent rotation or, tubing strings from dropping due to tubing failure
Running & Setting of Tubing Catcher
1.Install the Catcher in the tubing string, above or below the pump. Rotate the tubing to the left to set the anchor catcher
2.Lower the tubing to release tension and rotate to the right while working the tubing up and down slightly.
Casing OD(inch) | Setting Range | Tool OD(inch) | Tool ID(inch) | Connection Thread | |
Min ID(mm) | Max ID(mm) | ||||
4 1/2 | 3.920 | 4.090 | 3.75 | 1.93 | 2-3/8" EU |
5 | 4.276 | 4.494 | 4.00 | ||
5 1/2 | 4.670 | 5.044 | 4.50 | 2.00 | |
5 1/2 | 4.670 | 5.044 | 4.50 | 2.37 | 2-7/8" EU |
6 5/8 | 5.938 | 6.135 | 5.50 | ||
6 5/8 | 5.920 | 6.456 | 5.50 | ||
7 | 6.413 | 7.125 | 5.50 | ||
A: Your inquiry related to our products or prices will be replied in 24 hours.
B: Protection of your sales area, ideas of design and all your private information.
C: Best quality and competitive price.
Dongying Zhaoxin Industry and Trade Co.,Ltd is a company that manufactures different oilfield down hole tools and accessories such as tubing anchor,torque anchor,packer,centralizer,sucker rod guide,downhole gas separator,couplings.
Dongying Zhaoxin Industry and Trade Co.,Ltd with perfect attitude, product and service, is going to make further development together with customers at home and abroad .
