Rotary broach kit of tools factory direct sales details
Size:Custom-made;Port:Ningbo or Shanghai;
Certificate:ISO9001;Packaging Detail:Carton;
Supply Ability:500 Piece/Pieces per Month rotary broach set of tools;Model Number:KC-CX;
MOQ:1;Brand Name:Jingchi tools;
Packing:Customers' Request;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
OEM:Accept;Product Name:rotary broach set of tools;
Usage:Finish Machining;Application:Machining;
Place of Origin:Zhejiang China;Material:HSS;

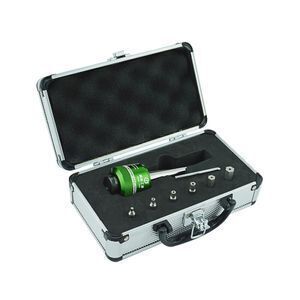

Rotary broach kit of tools



Product Description



KC-CX SERIES ROTARY BROACH TOOL

Rotary broach tool works by rotating the cutting force.It is most suitable for geneal machines,CNC automatic lathe,drilling machine.It can be used to make blind holes,through holes or regular/irregular polygons.Apart from standard hexagon and square holes,special shapes such as star shape and spline can also be cstomized.

1.Product performace and features

      1.No need to malke Punch head or electrode,reduce the cost,quaity is good, improve efficiency,has strong generality.

     2.One step of lathe work,reduce process and processing time.Use this tool can make square hole and hexagonal hole etc.Only need 30s to process a hexagonal hole which is 10mm width and 15mm depth.

     3.Suitable to process parts which hardness less than HRC30.

2.Method of use

      1.Use rotary broach tool,you can rotate the tool or the parts.It means you can use on lathe,milling machine,drill machine and CNC machine.In order to make sure the working accuracy,you must calibrat center.

      2.Working speed:800-2000R.P.M,Feed:0.02-0.1mm/rev,Increase 2-3times for copper/aluminum parts

KC-CX INTERNAL ROTARY BROACH TOOL

Product Data

Model

Size

Broach Head

Shank

D1

d

L

C

KC-CX08AM2

MT2

45

8

70

18

KC-CT08A-***

KC-CX08AM3

MT3

KC-CX08AM4

MT4

KC-CX08A12

Φ12×40

KC-CX08A16

Φ16×40

KC-CX08A20

Φ20×50

KC-CX08A25

Φ25×50

KC-CX08A32

Φ32×80

KC-CX16(A/B)M2

MT2

62

16

112/
152

A=40
B=80

KC-CT16(A/B)-***

KC-CX16(A/B)M3

MT3

KC-CX16(A/B)M4

MT4

KC-CX16(A/B)A16

Φ16×40

KC-CX16(A/B)A20

Φ20×50

KC-CX16(A/B)A25

Φ25×50

KC-CX16(A/B)A32

Φ32×80

Company Information

TaiZhou KeChi machinery Co.,Ltd is a company specialising in the production of mirror roller burnishing tools, rotary broach tools, knurling tools, combined skive-burnishing tool, diamond burnishing tool.And setting research and development production,sales in one integrated manufacturers.The company has its own R & D  team and after-sales service team,.It focus on the mirror roller burnishing, rotary broach, knurling and other technical areas. During the past ten years, it has provided perfect solutions for thousands of customers in auto parts, aerospace, hydraulic, military, cylinder, ship, construction machinery, medical, agricultural machinery, air conditioning,motor and so on.

Our certificate

Workshop



Test equipment

Exhibition

Our Services

1. Feedback within 24 hours

2. Good english communication;

3. Professional suggestion on product;

4. Good training export sales person;

5. Could issue the C/O(certificate of origin)to customer to reduce the tax;

6. Could accept payment terms of T/T,  L/C, western union, paypal and etc.

Packaging & Shipping



FAQ



1.You are traders or manufacturers?

A: We are a factory. you are most welcomed to visit us
2.Q:What is the material of your products?
A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customer requirements.
3.What is the artwork of your products,can print our logo?
A: Yes,we can provide your logo.
4.Q: What is your MOQ ?
A: 1 set per style.
5.Q: What is the lead time?
A: It depends on your order quantity.
6.Q: What are your payment terms?
A: 30% deposit and balance T/T before shippment or L/C at sight.

contact us

rotary broach set of tools, high quality
above is detail introduction of Rotary broach kit of tools factory direct sales, include price, model, picture and supplier of Rotary broach kit of tools factory direct sales.
