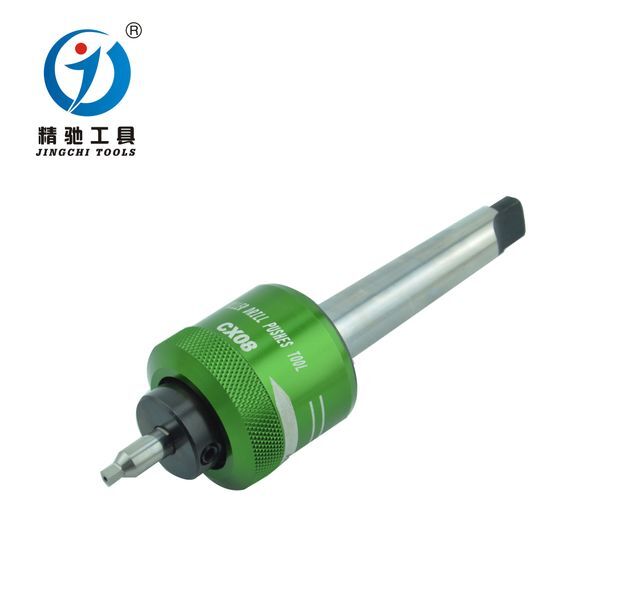

KC-CX08AM2 Hexagon Rotary Broach/Machine Tool Post Broach

Supplier: Taizhou Ke Chi Machinery Co., Ltd.
Region: Zhejiang, China
Price: $300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

application:	processing	Supply capacity:	500 Rotary Broaches with Straight Shank per month
brand:	Precision tools	Certificate:	ISO9001
model:	KC-CX08AM2	Package:	customer request
port:	Ningbo or Shanghai	product name:	Rotary broach
place of origin; place of origin:	Zhejiang, China	type:	Rotary broach
Material:	high speed steel	Minimum order quantity:	1
Packaging Details:	carton	hardness:	Suitable for below HRC30

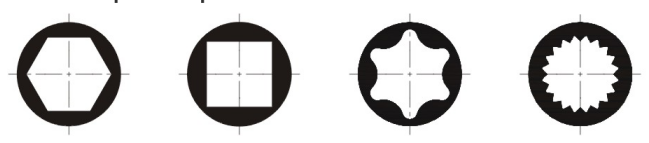

handle:	Morse taper	Broach shape:	Hex/Square/Spline/Plum
Original Equipment Manufacturer:	accept	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal

KC-CX08AM2 Hexagon Rotary Broach/Machine Tool Post Broach

Product Description

KC-CX series rotary broach

Rotary broaches work by rotating cutting forces. Most suitable for general-purpose machine tools, CNC automatic lathes, drilling machines. Can be used to make blind holes, through holes or regular/irregular polygons. In addition to standard hexagonal holes and square holes, special shapes such as stars and splines can also be customized.

1. Product performance and characteristics

1. No need to replace the punch or electrode, reduce cost, good quality, improve efficiency and strong versatility.

2. One-step lathe processing, reducing the process and processing time. Use this tool to make square and hexagonal holes, etc. It only takes 30s to machine a hexagonal hole 10mm wide and 15mm deep.

3. Suitable for machining parts with hardness less than HRC30.

2. How to use

1. With the rotary broach, you can rotate the tool or part. This means you can use it on lathes, mills, drills and CNC machines. To ensure working accuracy, you must calibrate the center.

2. Working speed: 800-2000R.PM, feed: 0.02-0.1mm/rev, 2-3 times higher for copper/aluminum parts

KC-CX Internal broach

product data

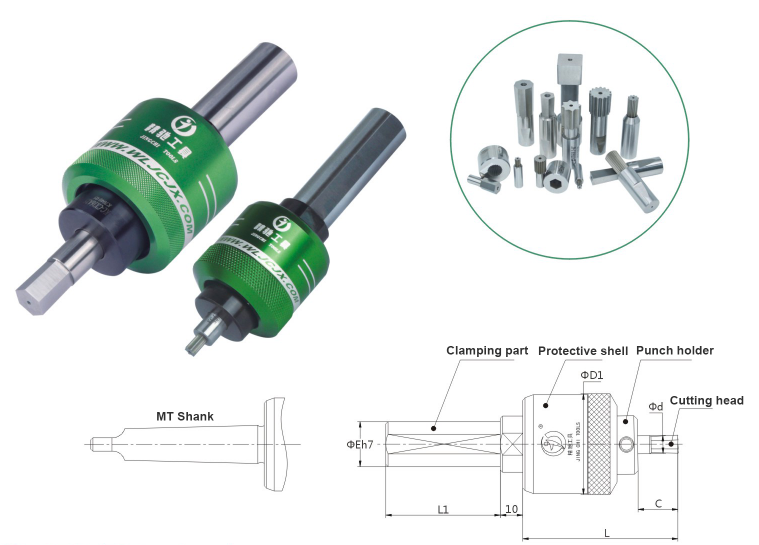

Model	size					broach head
	size
	handle	D1	d	large	C
KC-CX08AM2	MT2	45	8	70	18	KC-CT08A-***
KC-CX08AM3	MT3
KC-CX08AM4	MT4
KC-CX08A12	Φ12×40
KC-CX08A16	Φ16×50
KC-CX08A20	Φ20×60
KC-CX08A25	Φ25×60
KC-CX08A32	Φ32×80
KC-CX16(A/B)M2	MT2	62	16	112/ 152	A=40 B=80	KC-CT16(A/B)-***
KC-CX16(A/B)M3	MT3
KC-CX16(A/B)M4	MT4
KC-CX16(A/B)A16	Φ16×50
KC-CX16(A/B)A20	Φ20×60
KC-CX16(A/B)A25	Φ25×60
KC-CX16(A/B)A32	Φ32×80
