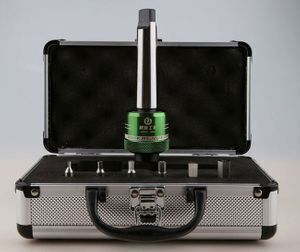

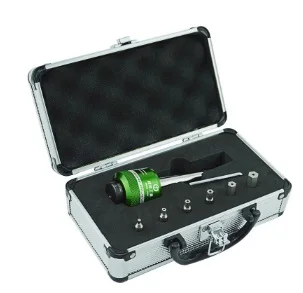

KC-CX internal square/hex/spline hss rotary broach/broaching tool holder

Supplier: Taizhou Ke Chi Machinery Co., Ltd.
Region: Zhejiang, China
Price: $365.60 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Application:	Cutting Machine;	Single package size:	20X15X10 cm;
Package Type:	carton box;	Place of Origin:	Zhejiang China;
Single gross weight:	1.5 KG;	Product Name:	Rotary broach tool holder kit;
Usage:	Finish Machining;	Selling Units:	Single item;
Packing:	Customers' Request;	Material:	High Speed Steel;
OEM:	Accept;	Hardness:	Suit less than HRC30;
Broach punch shape:	Hexagon;	Brand Name:	Jingchi;
Shank Size:	MT shank/Straight shank;	Certificate:	ISO9001;
Material:	HIGH SPEED STEEL;	Package Preview:	https://sc02.alicdn.com/kf/HTB1dmX_X6fguuRjSspkq6xchpXa9.jpg_640x640.jpg;

KC-CX internal square/hex/spline hss rotary broach/broaching tool holder

Product Description

KC-CX SERIES ROTARY BROACH TOOL

Rotary broach tool works by rotating the cutting force.It is most suitable for geneal machines,CNC automatic lathe,drilling machine.It can be used to make blind holes,through holes or regular/irregular polygons.Apart from standard hexagon and square holes,special shapes such as star shape and spline can also be cstomized.

1.Product performace and features

1.No need to malke Punch head or electrode,reduce the cost,quaity is good, improve efficiency,has strong generality.

2.One step of lathe work,reduce process and processing time.Use this tool can make square hole and hexagonal hole etc.Only need 30s to process a hexagonal hole which is 10mm width and 15mm depth.

3.Suitable to process parts which hardness less than HRC30.

2.Method of use

1.Use rotary broach tool,you can rotate the tool or the parts.It means you can use on lathe,milling machine,drill machine and CNC machine.In order to make sure the working accuracy,you must calibrat center.

2.Working speed:800-2000R.P.M,Feed:0.02-0.1mm/rev,Increase 2-3times for copper/aluminum parts

KC-CX INTERNAL ROTARY BROACH TOOL

Product Data

Model	Size					Broach Head
	Size
	Shank	D1	d	L	C
KC-CX08AM2	MT2	45	8	70	18	KC-CT08A-***
KC-CX08AM3	MT3
KC-CX08AM4	MT4
KC-CX08A12	Φ12×40
KC-CX08A16	Φ16×50
KC-CX08A20	Φ20×60
KC-CX08A25	Φ25×60
KC-CX08A32	Φ32×80
KC-CX16(A/B)M2	MT2	62	16	112/ 152	A=40 B=80	KC-CT16(A/B)-***
KC-CX16(A/B)M3	MT3
KC-CX16(A/B)M4	MT4
KC-CX16(A/B)A16	Φ16×50
KC-CX16(A/B)A20	Φ20×60
KC-CX16(A/B)A25	Φ25×60
KC-CX16(A/B)A32	Φ32×80

Parameters of internal broach cutters

Hex cutter Model	Size
Hex cutter Model	S	L1	L	D
KC-CT08-602	2	3	30	8
KC-CT08-602.5	2.5	4
KC-CT08-603	3	4.5
KC-CT08-604	4	6
KC-CT08-605	5	7
KC-CT08-606	6	9
KC-CT08-608	8	12
KC-CT08-610	10	18
KC-CT16-610	10	15	65	16
KC-CT16-612	12	18
KC-CT16-614	14	21
KC-CT16-617	17	40
KC-CT16-619	19	40
