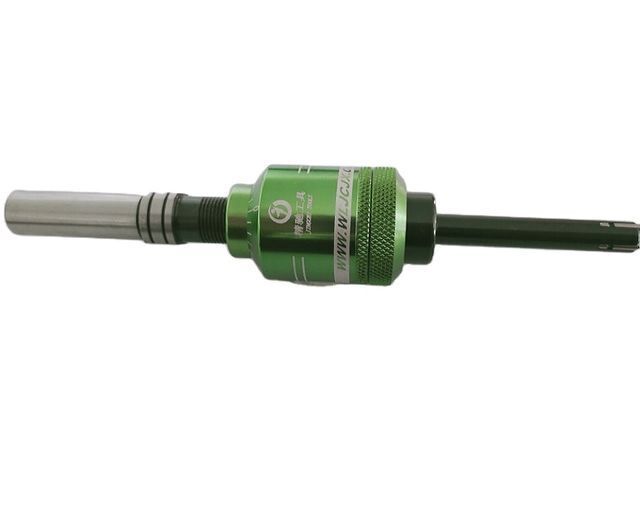

Blind hole mirror finish surface cnc lathe roller burnishing tool

Product details
Packaging Detail:Carton;Port:Ningbo or Shanghai;
Brand Name:Jingchi;OEM:Accept;
Model:JC-MK25.4A12;Supply Ability:500 Pieces per Month Blind hole mirror finish surface cnc lathe roller burnishingtool;
Diameter:25.4mm;Size:Custom-made;
Place of Origin:Zhejiang, China;Finish:Bright(Uncoated);
Material:HIGH SPEED STEEL;MOQ:1;
Product Name:Blind hole mirror finish surface cnc lathe roller burnishing tool;Hardness:Less than HRC30;
Certificate:ISO9001;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Application:Machining;Packing:Carton;

Blind hole mirror finish surface cnc lathe roller burnishing tool

Product Description



Introduction

The roller burnishing tool can utilize the plastic deformation of the metal at normal temperature to smooth the micro roughness of the workpiece surface so as to change the surface structure, mechanical characteristics, shape and size. No matter what metal processing tool, leaving marks fine uneven on the surface of parts will appear, the phenomenon of peak valley goes ups and downs. The Roller burnishing tool is a mechanical, non cutting, plastic processing method that uses mechanical extrusion to obtain a smooth, mirror like surface of a metal.

It is a kind of pressure finishing, to use the old plastic of metal at room temperature, put some pressure on the surface of the workpiece by the burnishing tool, so that the workpiece surface of metal plastic flow, fill in the original residual indentation trough, and reach the surface roughness value reduction. Due to the burnish surface of metal plastic deformation, so that the surface microstructure of cold hardening and grain refinement, forming a dense fibrous, and the formation of residual stress, hardness and strength increase, thereby improving the wear resistance of the workpiece surface. Corrosion resistance and compatibility. Rolling is a non cutting plastic processing method, so this method can achieve simultaneous finishing and strengthening two purposes, grinding and turning can not be achieved.

JC-MK Blind hole roller burnishing tool

Application cases: cylinder block, motor stator, connecting rod, valve body, rocker arm, etc

Optional Parameters(mm)

Model

Regulating component, Diameter and adjustment range

Effective Length/L

Shank/H

ΦD

ΦG

Through hole/ Blind hole

A

B

C

D

Round shank

H

Taper shank

H

Φ4.5-Φ5
No blind hole

HA0
30

-0.05/+0.15
No blind hole

50

80

_

_

Φ12*40

Φ16*40

78

MT2

 68

Φ6-Φ8

-0.05/+0.25
-0.05/+0.25

100

_

Φ9-Φ11

-0.05/+0.4
-0.05/+0.4

130

Φ12-Φ16

HA1
35

-0.1/+0.5
-0.05/+0.5

Φ17-Φ19

60

90

110

140

Φ20-Φ25

HA2
39

-0.1/+0.5

70

100

120

150

88

 78

Φ26-Φ39

80

130

180

230

Φ12*40
Φ16*40
Φ20*50

MT2
MT3
MT4

Φ40-Φ45

0/+0.5

150

200

250

300

Φ46-Φ68

HA3/45

160

210

260

310

100

 88

Φ70-Φ200



-0.1/+0.5
0/+0.5

_

_

MT3/4/5

 95

Aperture 26mm-68mm of the rolling knife, effective processing length from the beginning of B files, shank standard MT3.If you need other models, specifications to be customized. Because the outer diameter of the adjusting component is smaller than that of the machining aperture, the processing length can be increased by lengthening the size of the handle part of the 40mm.

Accessory(Roller pin and Spindle)

Jingchi tool is the only special surface treatment for roller pin and spindle In china. The surface roughness of the roller pin and spindle produced is 1~2 higher than that of the same kind of products, which makes the tool less friction loss and longer service life. It has international quality and high performance price ratio.

Company Information

TaiZhou KeChi machinery Co.,Ltd is a company specialising in the production of mirror roller burnishing tools, rotary broach tools, knurling tools, combined skive-burnishing tool, diamond burnishing tool.And setting research and development production,sales in one integrated manufacturers.The company has its own R & D  team and after-sales service team,.It focus on the mirror roller burnishing, rotary broach, knurling and other technical areas. During the past ten years, it has provided perfect solutions for thousands of customers in auto parts, aerospace, hydraulic, military, cylinder, ship, construction machinery, medical, agricultural machinery, air conditioning,motor and so on.

Our certificate

Workshop



Test equipment

Exhibition

Our Services

1. Feedback within 24 hours

2. Good english communication;

3. Professional suggestion on product;

4. Good training export sales person;

5. Could issue the C/O(certificate of origin)to customer to reduce the tax;

6. Could accept payment terms of T/T,  L/C, western union, paypal and etc.

Packaging & Shipping

FAQ



1.You are traders or manufacturers?

A: We are manufacturer. You are most welcomed to visit us.
2.Q:What is the material of your products?
A: The material is high speed steel.
3.What is the artwork of your products,can print our logo?
A: No,usually we use our logo.
4.Q: What is your MOQ ?
A: 1 set per style.
5.Q: What is the lead time?
A: It depends on your order quantity.
6.Q: What are your payment terms?
A: 100% payment at first,pay on alibaba.
