HSS No.70 Metric/Imperial Keyway Broaching Tool Set with Bushing and Spacer

Supplier: Chongqing Yuqing Machine Tools Co., Ltd.
Region: Chongqing, China
Contact: Ms Sabrina Tang
Price: $69.00 / >=3 sets
Min. Order: 3 sets

Click here to contact

Product details

Broach shape:	keyway	Packaging Preview:
place of origin; place of origin:	Chongqing, China	port:	Shenzhen

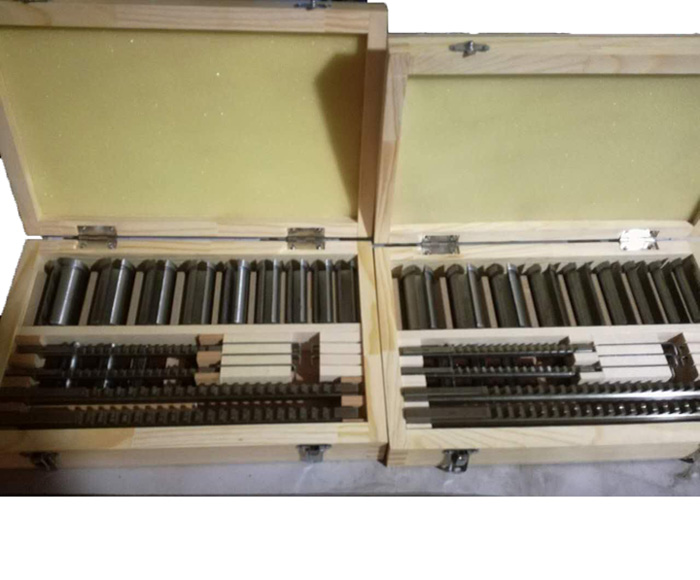

Packaging Details:	HSS Metric 70 Keyway Broach Set with Bushing and Spacer: Oil Paper + Wooden Case	Accessories:	Gaskets and Bushings
brand:	YQ	Supply capacity:	2000 sets per month
Material:	high speed steel	Item Number:	395-0822
Broach style:	A,B1,C,D,E	model:	395-0822
payment terms:	L/C,D/P,T/T,Western Union,MoneyGram,Paypal

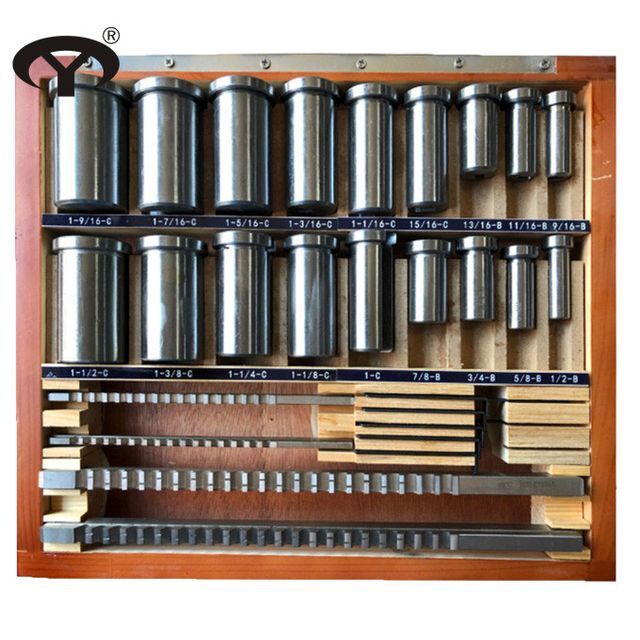

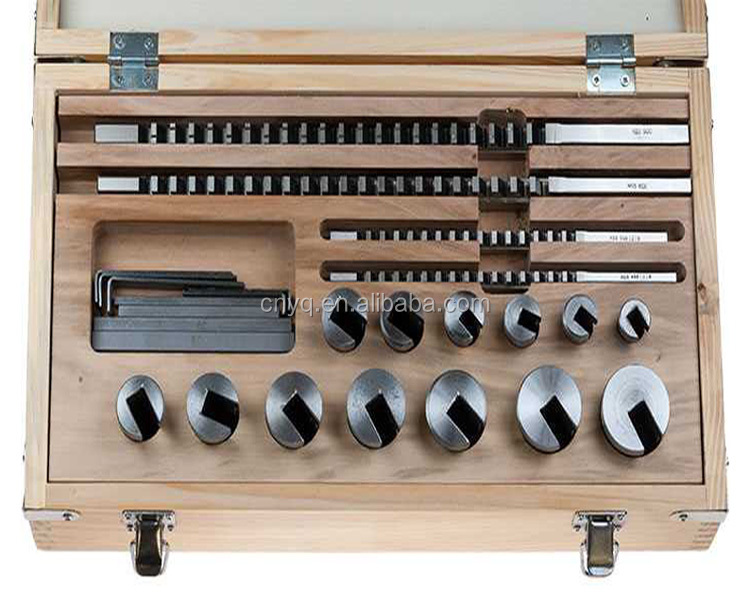

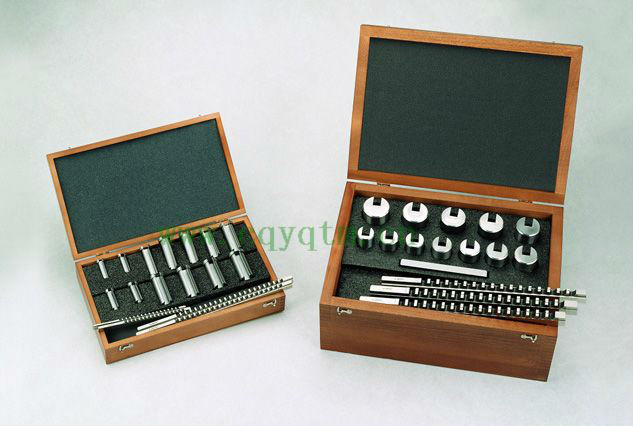

HSS No.70 Metric/Imperial Keyway Broaching Tool Set with Bushing and Spacer

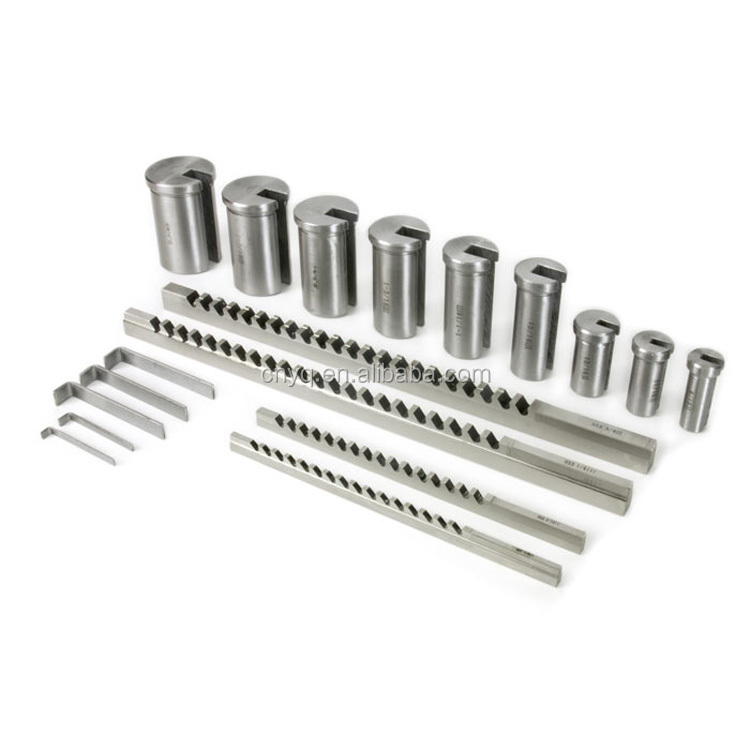

Our broach sets feature the most common metric keyway broach (2mm-18mm) and bushing (6mm-65mm) combinations

No. 60 Metric SetEDP No. 44497	keyway size	Broach style	Bushing diameter (bore diameter)
The most common metric keyway combination for small keyways and holes. 2 broaches and 3 bushings = 6 keyway combinations. Collar A Bushing
	twenty three	One	6, 8, 10

No. 70 Metric SetEDP No. 44498	keyway size	Broach style	Bushing diameter (bore diameter)
Our most popular metric broach set. 4 broaches and 13 bushings = 26 keyway combinations. With ring B1 and C bushing
	4 , 5	B1	12, 14, 15, 16
	6 , 8	C	18, 19, 20, 22, 24, 25, 26, 28, 30

No. 80 Metric SetEDP No. 44499	keyway size	Broach style	Bushing diameter (bore diameter)
The most common metric keyway combination for medium keyways and holes. 3 broaches and 12 bushings = 36 keyway combinations. Ordinary D bushing
	10 , 12 , 14	D	32, 34, 35, 36, 38, 40, 42, 44, 45, 46, 48, 50

No. 90 Metric SetEDP No. 44500	keyway size	Broach style	Bushing diameter (bore diameter)
The most common metric keyway combination for large keyways and holes. 2 broaches and 8 bushings = 16 keyway combinations. Plain E bushing
	16 , 18	E	52, 54, 55, 56, 58, 60, 62, 65

Material introduction:

A. W6Mo5Cr4V2 (GB) M2(ASTM), S6-5-2(DIN), SKH51(JIS)
Chemical composition: C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.00, Mo 4.80 V 1.85
Main use: widely used to make various knives and durable cold work molds

B. W6Mo5Cr4V2Co5 (GB), M35 (ASTM), 1.3243 (DIN), SKH55 (JIS)
Chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
Main use: good wear resistance, often used to make high-speed and difficult cutting blades

W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
