HSS M2/M35 DP Involute Spline Broach Cutter with PA30

Supplier: Chongqing Yuqing Machine Tools Co., Ltd.
Region: Chongqing, China
Contact: Ms Sabrina Tang
Price: $38.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Machine type:	Broaching machine;	Pressure angle:	PA30;
Model Number:	Customized;	No. of teeth:	11~40;
Material:	M2/M35;	Supply Ability:	3000 Piece/Pieces per Month;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram,Paypal;	Brand Name:	YQ;
Delivery Detail:	within 25 days;	Color:	Silvery;
Module:	1~5;	Port:	Shenzhen;
Place of Origin:	Chongqing China;	Packaging Detail:	Package of involute spline broach cutter : oiled paper+wooden case or as requirement;

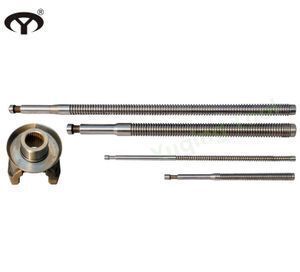

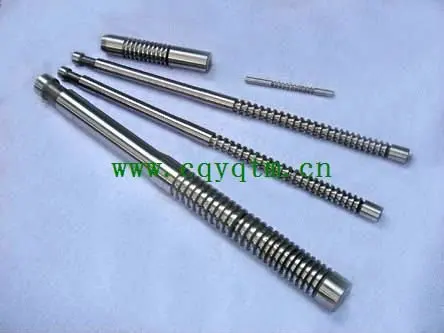

HSS M2/M35 DP Involute Spline Broach Cutter with PA30

Type 1 Spline Broaches

Type 2 Chamfer-Spline Combination Broaches

Type 3 Round-Spline Combination Broaches

1 and 2

Key Amount	Nominal Dia.	Key Width	Overall Length	Broaching
4	15~22	4~8	425~745	10~80
6	16~90	4~20	400~1635	10~120
8	36~72	6~12	500~1580
10	26~125	3~18	560~1690
16	38~82	3.5~7	750~1635	30~180
20	92~102	6~7	1125~1635	30~120

Key Amount	Nominal Dia.	Key Width	Overall Length	Pre-Broaching Hole Dia.
6	25~50	6~12	550~1400	10~120
8	36~50	6~9	570~1190	10~120

Involute spline broaches with standard pressure angle 30

Fine pitch involute broaches of m0.5~m0.8 , base circle dia.more than 6mm can be ordered

Involute serration broaches with standard PA45 , m0.5~m2.5 can be ordered also

Material Introduction:

A. W6Mo5Cr4V2 (GB) M2( ASTM), S6-5-2(DIN), SKH51(JIS)
chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.00, Mo 4.80 V 1.85
main application:It is widely used for making all kinds of cutters and durability cold-work die

B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
main application:It is often used for making blades with high-speed and great cutting difficulty as it’s good abrasive resistance

W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
