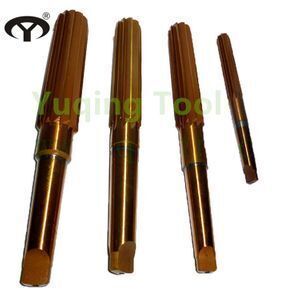

HSS M2 butt welded Machine Reamer with Morse Taper Shank

Product details
Material:HSS+C45;Brand Name:YQ;
Supply Ability:3000 Piece/Pieces per Month;Flute type:Straight flute , spiral flute;
Port:Shenzhen;Packaging Detail:Package of HSS M2 butt welded machine reamer with TIN: oiled paper+carton+wooden case or as requirement .;
Type:Chucking Reamer;Coating:TIN;
Flute diameter:10~70mm;Machine Type:Drilling Machine;
Place of Origin:Chongqing China;Model Number:Customized;
Payment Terms:L/C,D/P,T/T,Western Union,Paypal;Shank:Morse Taper Shank;
Material:HSS,C45;

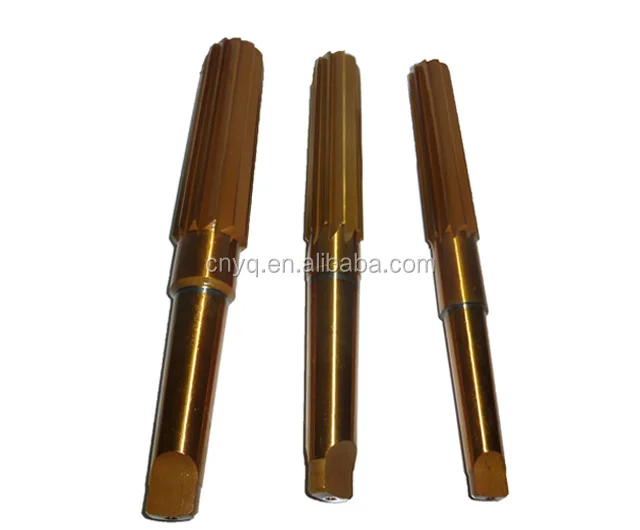

HSS M2 butt welded Machine Reamer with Morse Taper Shank



1.Material :M2/M35



2.Accuracy Class : H7 ,H8  ,H9



3.Type of front end with edge angle of in clination are ordered according to non-standard .



4.Specification table of machine reamer :



Outside Dia.

Overall Length

Flute Length

No.

10

140

22

1

11

140

22

1

12

105

25

1

13

105

25

1

14

160

25

1

15

160

25

2

16

170

25

2

17

170

25

2

18

180

28

2

19

180

28

2

20

190

28

2

21

190

28

2

22

200

28

2

23

200

28

2

24

220

28

3

25

220

28

3

26

230

30

3

27

230

30

3

28

240

30

3

30

240

30

3

32

240

30

3

























Reamer series : Taper shank , straight shank machine reamer , taper pin reamer , taper reamer, complex reamer.



Production process of HSS M2 butt welded morse taper shank reamer :





Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
