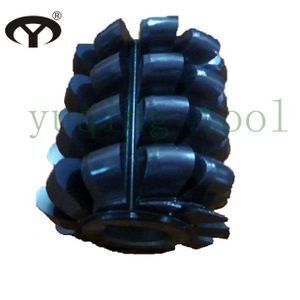

HSS M2/M35 ASA RS100 sprocket hobbing tool , sprocket gear hob with TIALN

  • 38.00 >=3 pieces
Min. Order: 3 pieces FOB PRICE
Contact Supplier View Company
Registered Supplier Direct Contact Inquiry via Message
Product Details
Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram,Paypal;Model Number:Standard Size;
Brand Name:YQ;Supply Ability:3000 Piece/Pieces per Month;
Coating:TIN/TIALN;Standard:GB/ASA/JIS;
Machine Type:Hobbing Machine;Mateiral:M2/M35;
Module:12.7*8.51;Packaging Detail:Package of sprocket hobbing cutter: oiled paper+carton+wooden case or as your requirement.;
Delivery Detail:within 25 days;Usage:Gear Hob;
Material:HSS;Place of Origin:Chongqing China;
Port:Shenzhen;Model Number:12.7*8.51;

HSS M2/M35 ASA RS100 sprocket hobbing tool , sprocket gear hob with TIALN



 Specification table of chain sprocket hob :(mm)



Specification

(Pitch ×Roller Dia.)

Outside Dia.

Overall Length

Hole Dia.

9.525×6.35

70

60

27

12.7×8.51

80

70

15.875×10.16

90

85

32

19.05×11.91

100

100

25.4×15.875

115

115

31.75×19.05

140

140

40

38.1×22.23

140

150

44.45×25.4

150

180

50.8×28.58

160

200

63.5×39.68

180

240































Tooth profile of sprocket hob cutter :









Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.



The production process of sprocket gear hob :
