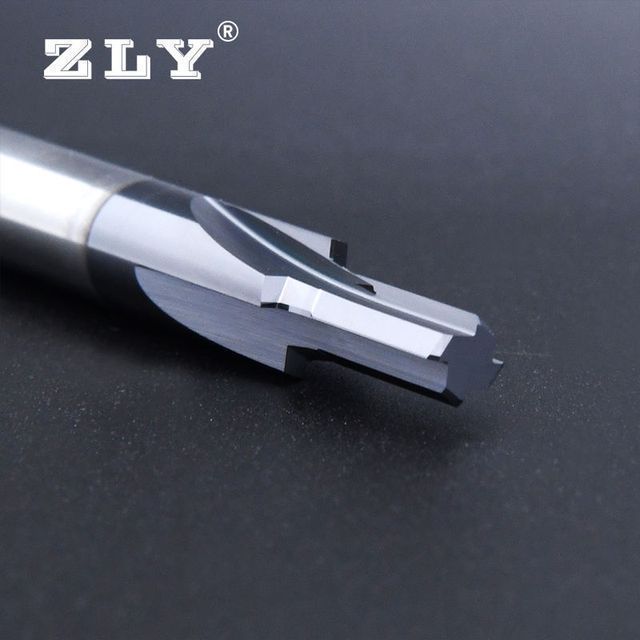

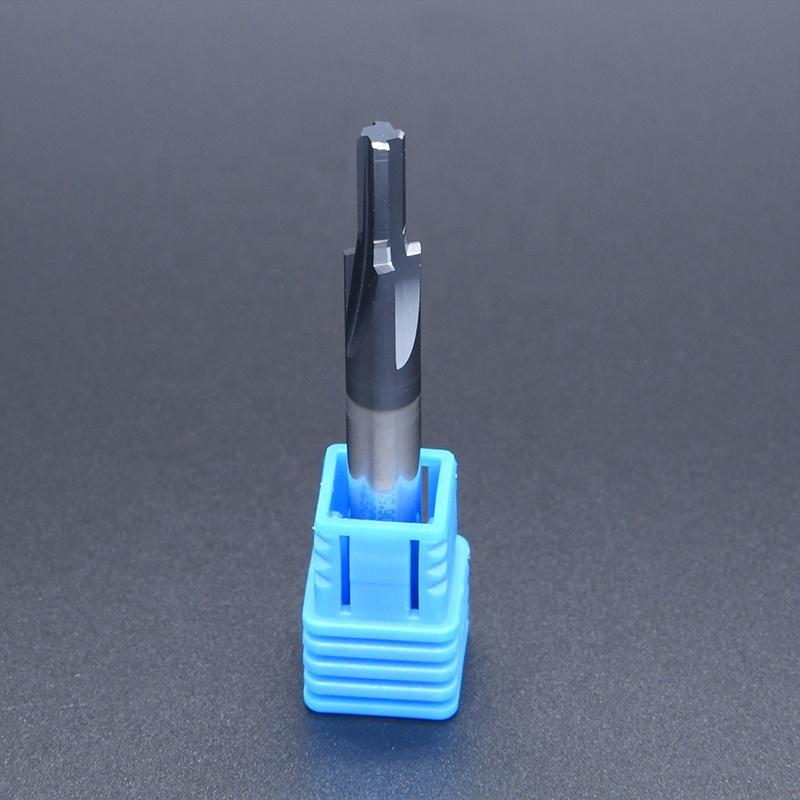

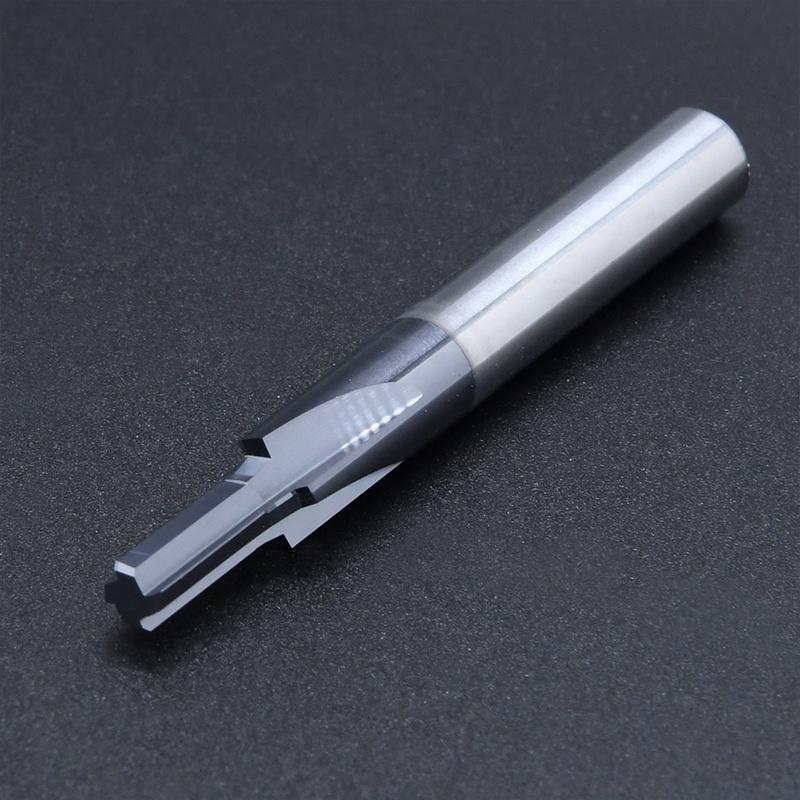

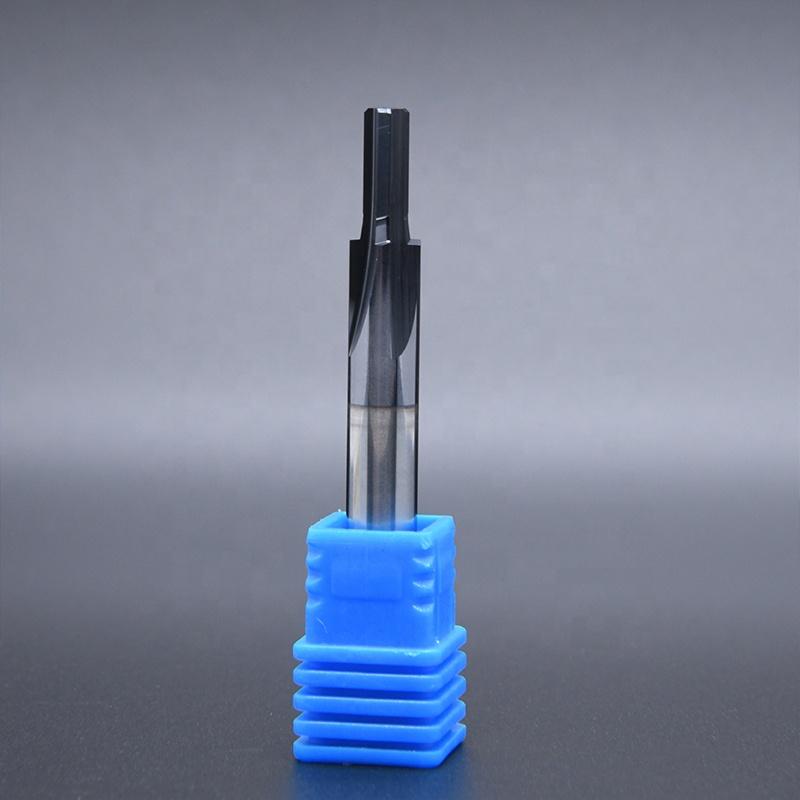

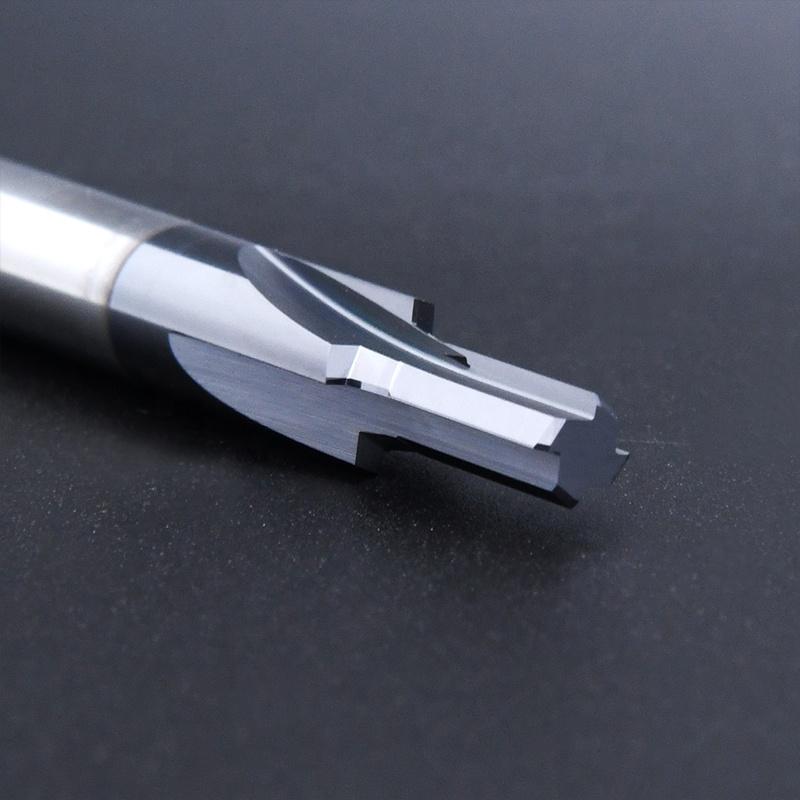

High quality CNC 4 flute Reamer Solid Carbide Reamer Spiral Reamer

Supplier: Shenzhen Zhuoluoyu Precision Tool Co., Ltd.
Region: Guangdong, China
Contact: Mr Jay Wang
Price: $20.00 / 2 - 99 pieces
$12.00 / 100 - 999 pieces
$7.00 / >=1000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

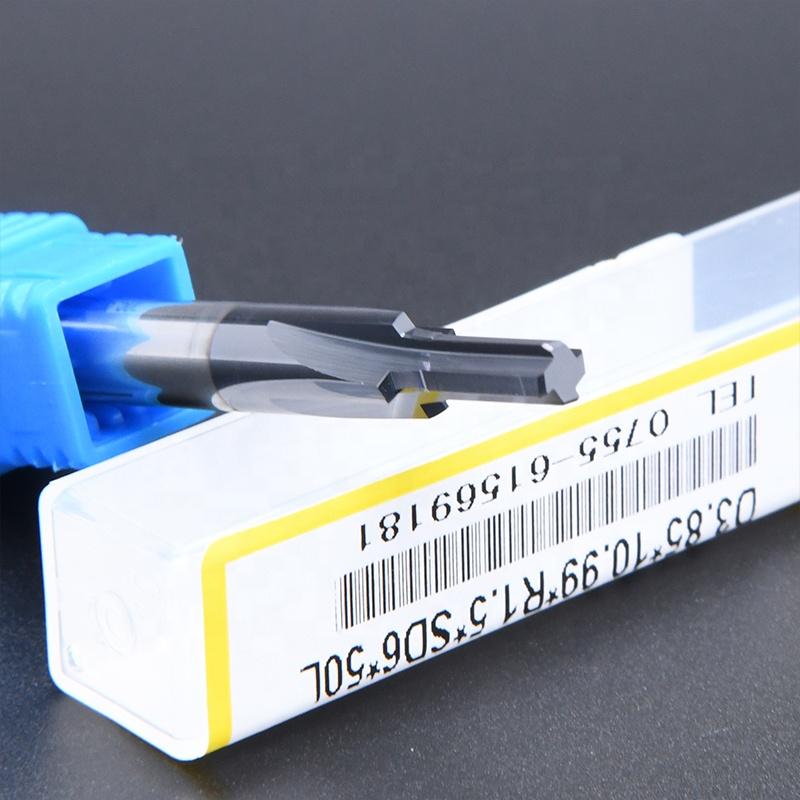

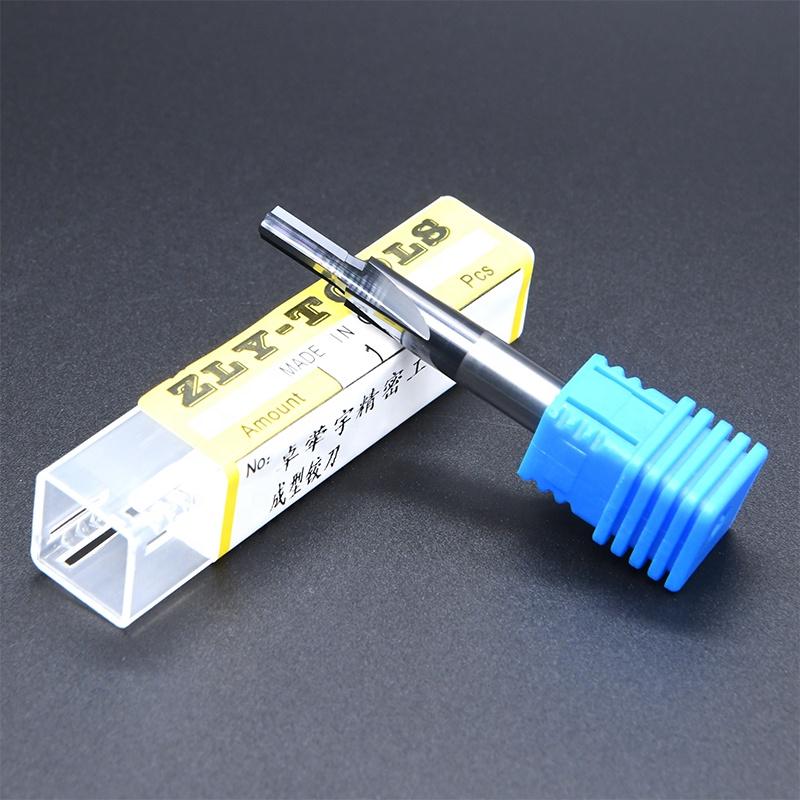

Processing:	warm welcome	Packaging Details:	Our standard packing: 1. Each tungsten carbide drill bit with plastic tube, 10 pcs per set 2. Packed in carton with bubble sheet Other packing is available upon your request
brand:	ZLY	Package preview:
Workpiece material:	For steel, stainless steel, cast iron	coating:	TiAlN coating
tolerant:	+/-0.001 can be obtained	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal
Warranty:	3 years	Cutter Type:	Solid carbide spiral reamer
Material:	Alloy steel, tungsten steel, hard alloy	Number of slots:	4F
Customization support:	OEM,ODM,OBM	model:	As required
place of origin; place of origin:	Guangdong, China	Process 2:	Get good roundness and surface finish for blind or through holes
Handling one:	Hole Superfinishing	port:	Shenzhen Port, Guangzhou Port, Hong Kong Port
Helix angle:	Left hand 15°	MOQ:	2 pieces
Supply capacity:	10000 pieces per month

Product Description

Specification

brand	ZLY®Tools
Tool type	Solid carbide reamer
Custom support	OEM, ODM, OBM
Material	Carbide
Helix angle	Left hand 15°
Number of slots	4F
flute type	Spiral groove* for through holes * Radial cooling holes * Left-handed screw * Chips are pushed forward
Shank Tolerance	h6
coating	TiAlN coating
tolerant	+/-0.001 can be obtained
Diameter range	3.97-20mm
Workpiece material	General machining for steel, stainless steel, cast iron, aluminum alloys, copper alloys, brass
processing	Hole Superfinishing, for good roundness and surface finish, for blind or through holes
Material Classification Level 1 (TMC1ISO)	PKN
Cutting diameter (DC)	12.03mm
Achievable Hole Tolerance (TCHA)	H7
Lower achievable hole tolerances (TCHAL)	0 mm
Upper Hole Tolerance Achievable (TCHAU)	0.018mm
Pre-machined hole diameter (PHD)	11.8mm
Usable length (LU)	75mm
Connection Diameter Tolerance (TCDCON)	h6
Connection diameter (DCON)	12mm
Full length (OAL)	120mm
Functional length (LF)	118.19mm
Plug Length (PLGL)	1.81mm
Cutting edge length (L)	20mm
flute length	26mm
Item Weight (WT)	0.152 kg
apply to	All industry sectors such as general machining, tooling, automotive, energy and power generation
