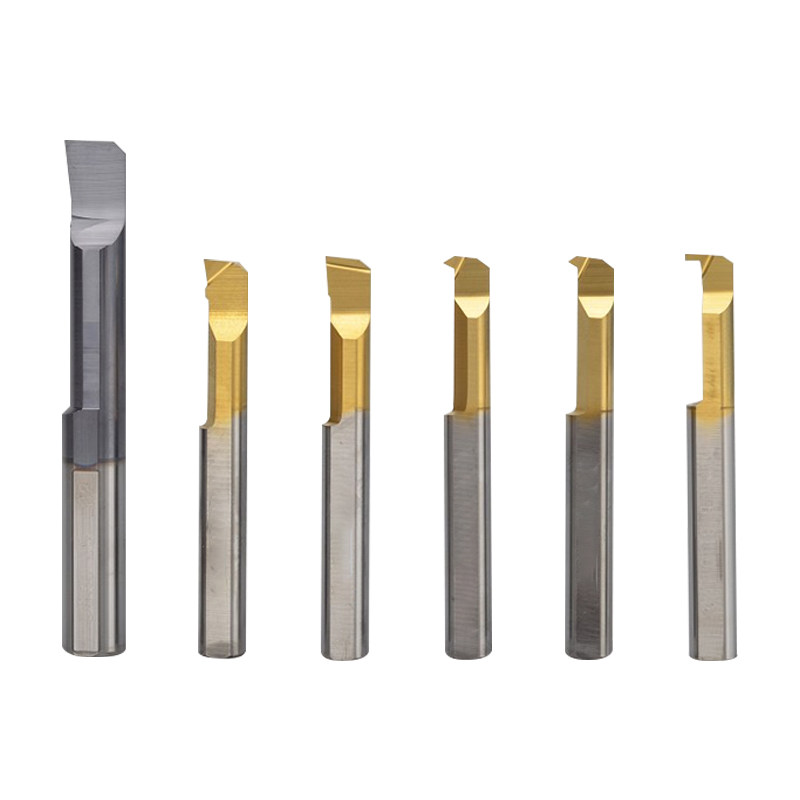

OEM Factory Solid Carbide Boring Bar Kit Small Bore CNC Internal Turning Tool
- 5.00 >=5 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Key words: | Boring bar | Material: | Solid carbide, tungsten carbide |
| Origin: | Guangdong, China | diameter: | 0.15-16mm |
| Type of machine: | lathe | Face Grooving: | usable |
| Cut length: | 0.2-80mm | payment terms: | L/C, Western Union, D/P, T/T, MoneyGram, Paypal |
| Warranty: | other | Cutting diameter: | 0.15-16mm |
| Package preview: | brand: | ZLY tool | |
| Supply capacity: | 10000 pieces per month | Customization support: | OEM production |
| Processing type: | Internal steps, profiles, threads, grooves | port: | Shenzhen Port, Guangzhou Port, Hong Kong Port |
| Packaging Details: | Our standard packing: 1. Each tungsten carbide drill bit with plastic tube, 10 pcs per set 2. Packed in carton with bubble sheet Other packing is available upon your request | Processing: | warm welcome |
| coating: | with or without coating | MOQ: | 10pcs |
| type: | Carbide Boring Bar |
Product Description
brand | ZLY tool |
type | tailor-made |
product name | Micro boring tool, small boring tool, micro boring tool |
Material | Tungsten carbide |
Material Classification Level 1 (TMC1ISO) | neutral nervous system |
Tool cutting edge angle (KAPR) | 98 degrees |
Tool entering angle (PSIR) | -8 degrees |
Corner Radius (RE) | 0.15 mm |
Maximum depth of cut (APMX) | 0.3 mm |
Maximum slope angle (RMPX) | 17 degrees |
Minimum aperture (DMINI) | 4.2mm |
Maximum Overhang (OHX) | 18 mm |
Usable length (LU) | 15 mm |
hand | R |
Substrate (substrate) | hydrocarbon |
Coating (COATING) | PVD TIAIN+TIN or uncoated |
Coolant inlet method | no coolant |
Coolant outlet form | no coolant outlet |
Connection diameter (DCON) | 4 mm |
overall length | 40-75mm |
Item Weight (WT) | 0.015 kg |
diameter | 0.15-12 |
Features | Virtually any cutting edge geometry can be specified |
cutting diameter | 0.15-16mm |
type of machine | lathe |
processing type | Internal steps, profiles, threads, grooves |
Face Grooving | usable |
cutting length | 0.2-80 mm |
You are welcome to customize solid carbide rods for chamfering, profiling, and boring.
