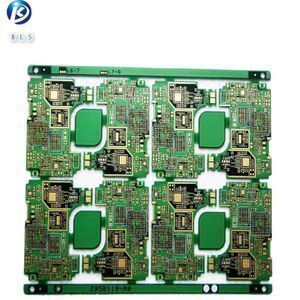

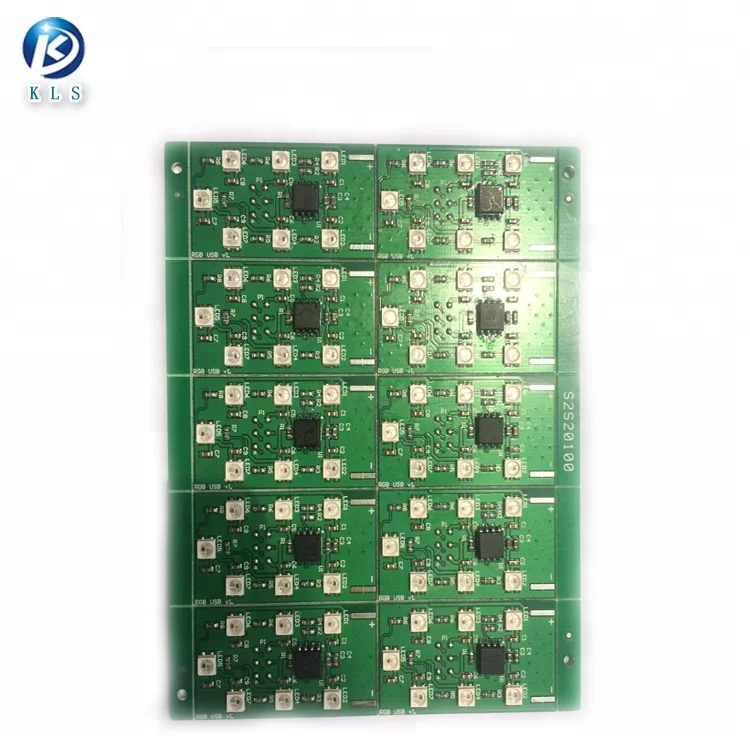

PCB /PCBA design,bom list & gerber files, multilayer ,prototype PCB Customs Data Experienced Factory

Supplier: Kinglisheng(Shenzhen) Electronics& Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Essie Mei
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Selling Units:	Single item;	Usage:	Audio;
Type:	Electronic Board;	Testing Service:	Fly-probe;
Min. Line Spacing:	4/4mil(0.1/0.1mm);	Product name:	Industrial PCBA;
Min. Line Width:	0.1mm/4mi;	Model Number:	Customized;
Base Material:	FR-4;	Min. Hole Size:	0.2mm;
Copper Thickness:	1oz;	Single gross weight:	2 KG;
Item:	Custom Circuit Board;	Application:	Electronics Device;
Layer:	1-32layer;	Brand Name:	KLS;
Certificate:	ISO9001;	Surface Finishing:	HASL;
Solder mask:	Green.Black.Red.Yellow.White.Blue;	Board Thickness:	1.6mm;
Single package size:	20X20X20 cm;	Place of Origin:	Guangdong China;

Product Description

Company Information

PCBA
Specifications		Capability
Single and double sided SMT/PTH		Yes
Large parts on both sides, BGA on both sides		Yes
Smallest Chips size		0201
Min BGA and Micro BGA pitch and ball counts		0.008 in. (0.2mm) pitch ball count greater than 1000
Min Leaded parts pitch		0.008 in. (0.2 mm)
Max Parts size assembly by machine		2.2 in. x 2.2 in. x 0.6 in.
Assembly surface mount connectors		Yes
Odd form parts: LED Resistor and capacitor networks Electrolytic capacitors Variable resistors and capacitors (pots) Sockets		Yes,Assembly by hands
Wave soldering		Yes
Max PCB size		14.5 in. x 19.5 in.
Min PCB Thickness		0.02
Fiducial Marks		Preferred but not required
PCB Finish:		1.SMOBC/HASL 2.Electrolytic gold 3.Electroless gold 4.Electroless silver 5.Immersion gold 6.Immersion tin 7.OSP
PCB Shape		Any
Panelized PCB		1.Tab routed 2.Breakaway tabs 3.V-Scored 4.Routed+ V scored
Inspection		1.X-ray analysis 2.Microscope to 20X
Rework		1.BGA removal and replacement station 2.SMT IR rework station 3.Thru-hole rework station

Kinglisheng (Shenzhen) Electronics & Technology Co., Limited has a professional technical team with 10 years of experience in PCB manufacturing,constantly enhance the level of PCB technology and production capacity. As a PCB supplier, Jinglisheng is not only offering one-stop service as PCB design, PCB production, and PCB Assembly, but also taking great advantages on prompt delivery time and competitive price with no quality compromise.

Our main service:
1. PCB development and design;
2. PCB manufacturing from 1 to 32 layers;
3. Component sourcing;
4. PCB Assembly;
5. Write program for customers;
6. PCB/ PCBA Test.

We understand that bringing a product to market in a timely and cost effective manner can mean everything in business. Our quality, experience, service and pricing combine to become your efficient and reliable electronic supplier.

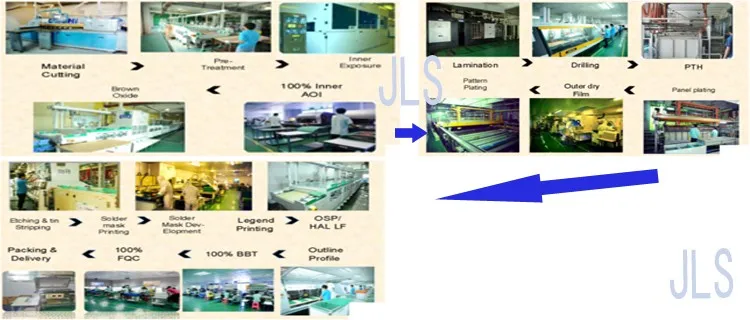

We have a standard and high quality control Manufacturing Flow.

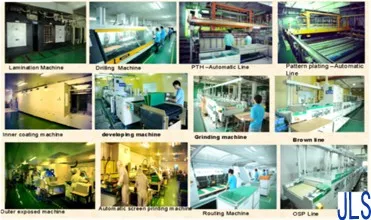

Manufacturing Machine Show

SCHMOLL and V-cut machine from German, POSALUX from Switzerland, laminated yarn from Italy, the AOI of brand Camtek from Israel, the Developing line and advanced test machine CMI900 from Japan, etc.

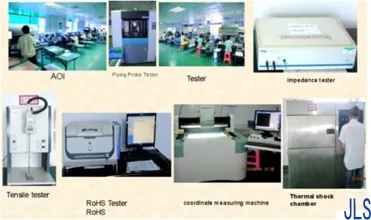

Major Testing Equipment

AOI, Flying probe tester, Tester, Impedance tester, Tensile tester, ROHS tester, coordinate measuring machine, Thermal shock chamber, all just for to make the high quality!

Packing

Vacuum packing and outer cartons

FAQ

Q1:Are you a factory or trade company?
A: JLS is a manufacturer of PCB.Professinal on PCB Board and PCB Assembly.

Q2:What kind of PCB file format can you accept for production?
A:Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, GCCAM, ODB+(.TGZ)

Q3:Are my PCB files safe when I submit them to you for manufacturing?
A:We respect customer's copyright and will never manufacture PCB for someone else with your files unless we receive written. Permission from you, nor we'll share these files with any other 3rd parties.

Q4:No PCB file/Gbr file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q5:What is Chuante lead time?
A:Sample:

1-2 Layers: 5 to 7working days
4-8 Layers: 12 working days
Mass production:
1-2 Layers:7 to 15 working days
4-8 Layers:10 to 18 working days
The leadtime is depends on your final confirmed quantity.

Q6:What payment do you accept ?
A:-Wire Transfer(T/T)
-Western Union
-Letter of Credit(L/C)

-Paypal

Q7:How to get the PCBs?
A:For small packages, we will ship the boards to you by DHL,UPS,FedEx,EMS. Door to door service! You will get your PCBs at your home.
For heavy goods more than 300kg, we may ship your PC boards by ship or by air to save freight cost. Of course, if you have your own forwarder, we may contact them for dealing with your shipment.

Q8:What is your minimum order quantity?
A:Our MOQ is 1 PCS.

Q9:How about your factory production capacity?
A:we can provide 100000 square meter/month.

Q10:Which countries have you worked with?
A:US,Mexico,Korea,Vitnam,Italy,Iran,Bengal and so on we all supplied.
