DAI1 1A 3A 6A 10A single phase AC power line EMI noise filter
- 1.60 >=10 pieces
| Type: | EMI Filter; | Stopband Attenuation: | 30-100dB; |
| Characteristics: | Low Pass; | Nominal Center Frequency: | 150K-30(MHz); |
| Type of Company: | Factory; | Input Impedance: | 50MOhm@500VDC; |
| Transfer Function: | Low Pass; | Supply Ability: | 10000 Piece/Pieces per Day; |
| Company Name: | Tong Yue Xin Commercial And Trading CO.,LTD (Chengdu); | Trade terms: | EXW,FOB,CFR...; |
| Product name: | Single Phase AC EMI Filter; | Brand Name: | Bonens; |
| Delivery Detail: | Shipped in 7 days after payment; | Certification: | ISO9001 CE CQC ROHS UL; |
| Key words 1: | EMI Filter; | 3dB Bandwidth: | 25MHz; |
| Place of Origin: | Chengdu, China (Mainland); | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; |
| OEM: | yes; | Insertion Loss: | 60-90dB; |
| Place of Origin: | Sichuan China; | Packaging Detail: | 32pcs to a tape 96pcs to a carton; |
| Key words 2: | Noise Filter; | Package Type: | Throught Hole; |
| Port: | shenzhen; | Model Number: | DAI1; |
DAI1 1A 3A 6A 10A single phase AC power line EMI noise filter

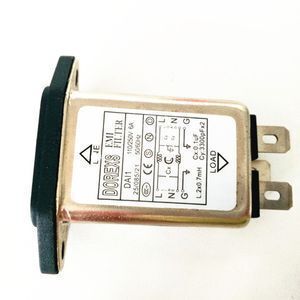

Products picture
Outline drawing
Electrical Schematics

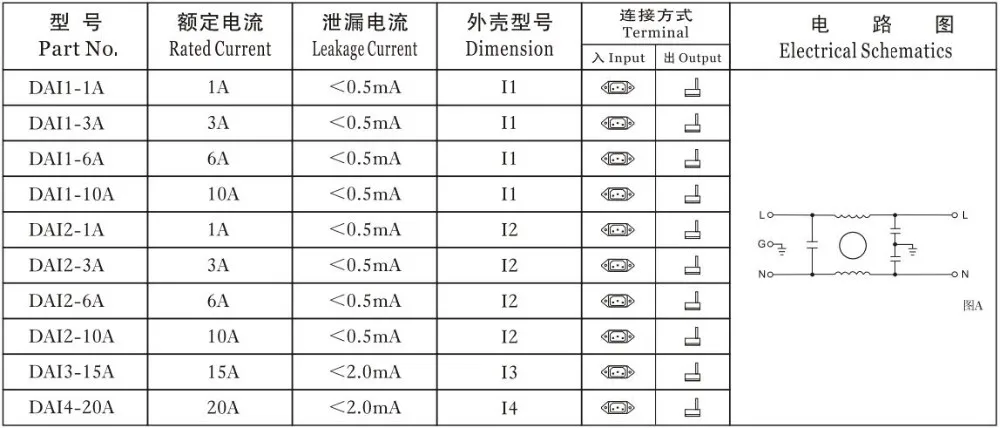

List of General products
Technical parameters:
Rated voltage ................................................................................. 110/250VAC
Operating frequency ....................................................................................... 50/60Hz
Rated Current ....................................................................................... 1A ~ 20A
Pressure test ................................................ line - Line: 1500VDC line - ground: 1500VAC
Insulation resistance ........................................................................> 50MΩ @ 500VDC
Temperature rise .......................................................................................... <30 ° C
Climatic category .................................................................................... 25/085/21
Feature:
Single Phase AC filter
General Purpose filter with ICE connector
High ration of performance to cost moke
Available for mini-electronic equipments and instruments

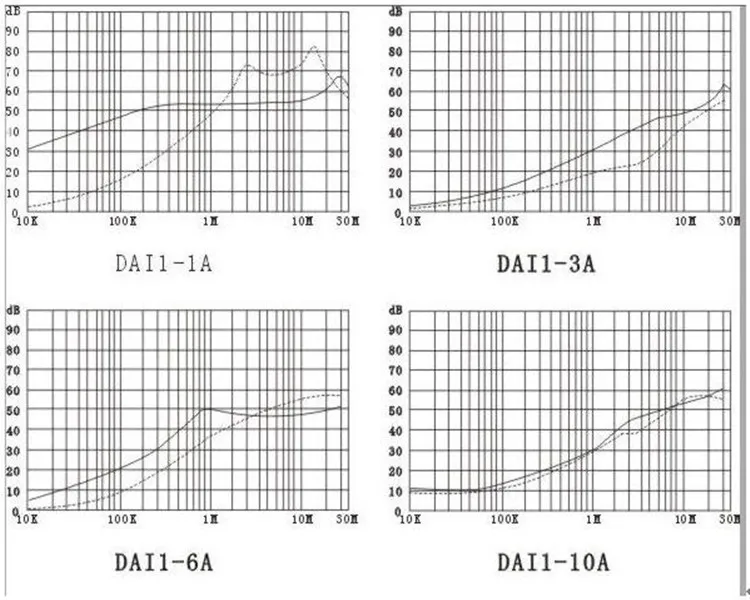

Insertion Loss
Other main products
Trimming Poten
Rotary potentiometer
Resistor
Production line
♦Package::
Factory information
Certificates
Shipping&payments
♦For Informations,Please contact us:
Att:Gina zhou
Skype:Gina.zhou12
QQ:512351005
Pone/Whattsapp:+86-18010662198
look forward your inquiry............................
