Similar to Darda Hydraulic Rock Splitter for Mining,HW rock splitting machine price

Supplier: Jining Hengwang Mining Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Aggy Li
Price: $512.00 /set
Min. Order: 1 set

Click here to contact

Product details

Drilling Dia(mm):	38-40MM;	Application:	splitting machine;
After-sales Service Provided:	Free spare parts,Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;	Type:	Rock Splitter;
Theory breaking forcing(Tons):	700;	Real breaking force:	660;
After-sales Service Provided:	Engineers available to service machinery overseas;	Splite Width(mm):	10-40 splitting machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Packaging Detail:	export standard package rock spiltter gun;
Type:	Rock Splitter;	Piston inner Dia(mm):	70/180;
Splitter Length(mm):	200;	Dimension(LWH):	Rock Splitter;
Condition:	New;	Place of Origin:	Shandong China;
Certification:	ISO;	Drilling deepth(mm):	400 splitting machine;
Port:	Qingdao Tianjin Shanghai;	Brand Name:	HengWang splitting machine;
Warranty:	1 Year;	Supply Ability:	2000 Set/Sets per Month rock splitter;
Motor Type:	Diesel or Electric;

Rock splitter

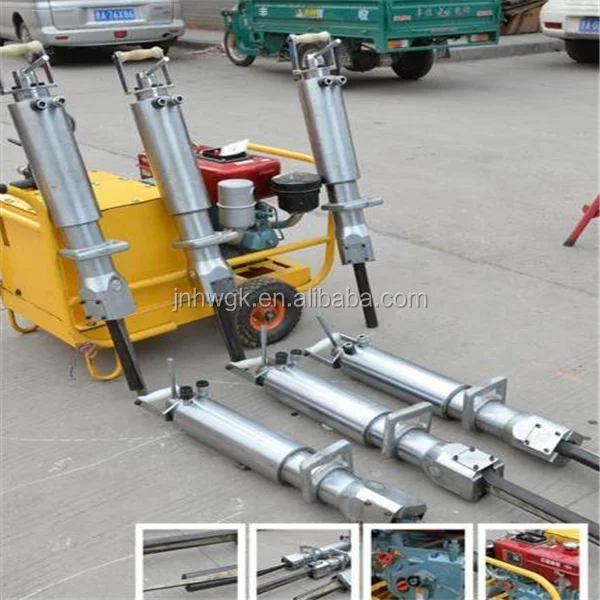

Hydraulic rock splitter , rock splitter wedge for sale

Rock splitting machine, also known as rock splitting machine, is a machine for splitting rocks. It is used in construction, decoration, engineering construction, ore mining.
Splitting machine|The structure of the splitter is mainly composed of hydraulic station, oil pipeline, splitting gun and decoupling. According to the type of power station, it can be divided into four types: electric type, diesel type, gasoline type and air motor. According to the split gun material can be divided into: steel split gun and aluminum split gun. It can also be classified according to the size of the split gun power.

Electric power Diesel power

Models

Model	HW90-250-1	HW90-250-2	HW90-250-3	HW90-250-4
piston diameter	90mm	90mm	90mm	90mm
drilling diameter	Φ50mm	Φ42mm	Φ45mm	Φ50mm
drilling depth	≧600mm	≧500mm	≧500mm	≧600mm
cheese block length	10~40mm	10~40mm	10~40mm	10~40mm
weight	30Kg	31Kg	32Kg	33Kg
Hydraulic rock splitter
Engine	Electricity engine		Gaoline engine /diesel engine
weight	60kg	100kg /150kg	100kg	130kg/150kg
capacity of tank	15L	40L /88L	45L	65L/90L
motor power	1.5KW	4KW/7.5KW	4Hp	7Hp/7.5Hp
working pressure(Mpa)	55-60	55-60	55-60	55-60
working flow(L/min)	2-13	2-13	2-13	2-13
configurable splitting machine number	1-5	2-7/2-10	1-3	3-8/3-10
