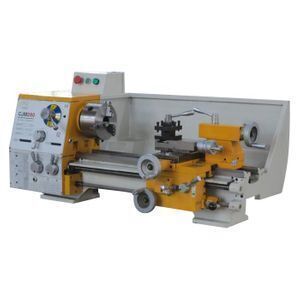

CJM280 mini and small lathe machine for metal work with CE standard

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Sunny Huang
Price: $1445.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	delivery to Shanghai port;	Automatic Grade:	Manual;
Key Selling Points:	Flexible Manufacturing;	Max. Swing Diameter:	280mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Center distance:	500mm or 750mm;
Voltage:	110V 220V;	Packaging Detail:	lathe machine is well packed with plywood case.;
Year:	new;	Logo printing:	OEM service;
Model Number:	CJM280/750;	After-sales Service Provided:	Engineers available to service machinery overseas;
Machinery:	DIY lathe machine;	Power(W):	750W;
CNC or Not:	Normal;	lathe machine Color:	customer appoint;
Dimension(LWH):	1160x640x580mm;	Place of Origin:	Anhui China;
Range of Spindle Speed(r.p.m):	90-1800rpm;	high speed:	low cost;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training;	Supply Ability:	50 Set/Sets per Month;
Warranty:	1 Year;	Type:	Horizontal;
Brand Name:	WMT;	Weight (KG):	250;
Condition:	New;	Applicable Industries:	Building Material Shops,Machinery Repair Shops;
Certification:	CE,ISO;

Product Description

Features:

Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 80-1600rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.

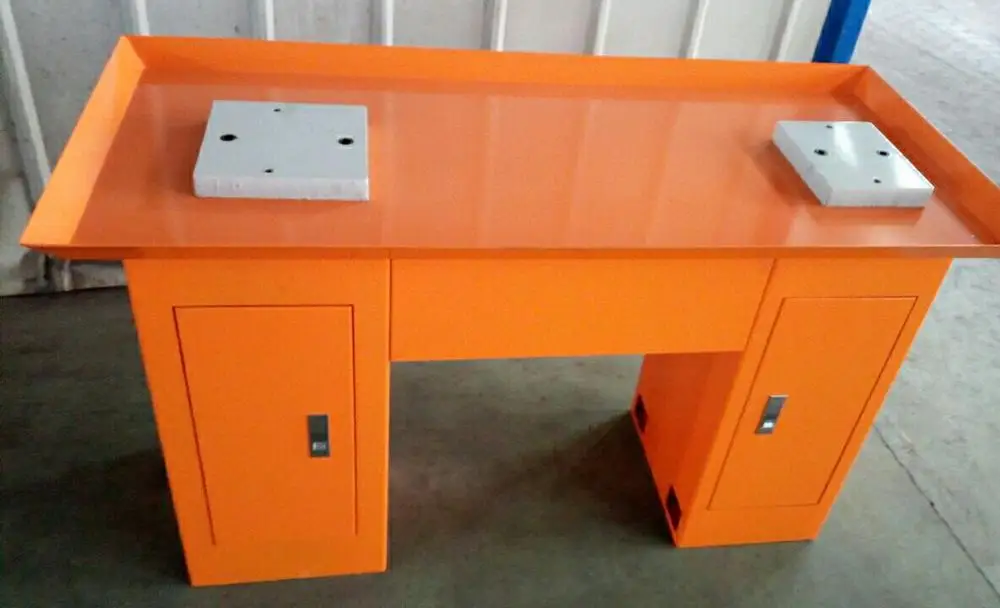

Machine stand(Optional accessory)

Specification of machines

Model	CJM280
Swing over bed	280 mm
Center distance	500 mm	750mm
Swing over carriage	160 mm
Spindle bore	38 mm
Spindle taper	MT.5#
Swing over toolpost	140 mm
Longitudinal travel over toolpost	75 mm
Metric thread available	18
Metric thread range	0.20~3.5 mm
Inch thread available	34
Inch thread range	41/2~48 1/n″
Module thread available	16
Module thread range	0.20~1.75
Pitch thread available	24
Pitch thread range	16~120 /DP
Longitudinal feed on spindle toolpost	0.08~0.56 mm/r
Cross feed on spindle toolpost	0.04~0.28 mm/r
Tailstock sleeve travel	60 mm
Tailstock sleeve taper	MT.3#
Spindle speed step	8
Spindle speed range	90~1800 r/mim
Motor	750W 380V 50HZ (220V 50HZ)
Packing size	1450×650×1200	1200×650×1200

You may also like:

Our Services

Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
