RF pyramidal microwave absorbers for anechoic chamber

Supplier: Seattle Electronics Manufacturing (Shenzhen) Co., Ltd.
Region: Guangdong, China
Contact: Mr. Harvey Cheng
Price: $14.90 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Input Impedance:	No;	Standard Height:	20-1000mm;
Model Number:	SA-150;	Transfer Function:	All Pass;
Base size:	500x500mm/Customized accept;	basic composition:	carbon and retardant chemicals loaded polyurethane foam;
Nominal Center Frequency:	1MHz-40GHz;	working temperature:	-50°C ~ + 80°C or -85°F ~ 176°F;
Absorber type:	Pyramidal absorber;	Single package size:	50X50X15 cm;
Application:	EMC chamber, Anechoic chamber, EMC box, RF cabinet;	Place of Origin:	Guangdong China;
Package Type:	standard packaging;	Insertion Loss:	No;
Type:	EMC Filter;	Selling Units:	Single item;
3dB Bandwidth:	No;	Color:	Light blueor according to to customers' demand;
Brand Name:	SEMG;	Single gross weight:	4.8 KG;
Package Type:	Surface Mount;	Reflectivity:	-17 to -50dB;

Product Description

Microwave anechoic chamber material is a pyramidal shaped, carbon loaded elastic polyurethane foam EM absorber material. This material may be applied for covering of anechoic chambers, and for construction of test equipment for antenna measurements. Absorber is made in form of panel.

Applications

Broadband absorbers suitable for in-door measurements.
Below 100mm thickness, used for small shielding room
Above 100mm thickness, used for huge shielding room or dark room
It is available in other sizes and customer specified configurations upon request
Used in making microwave anechoic chambers for performing measurements like RCS,
antenna Measurements etc.

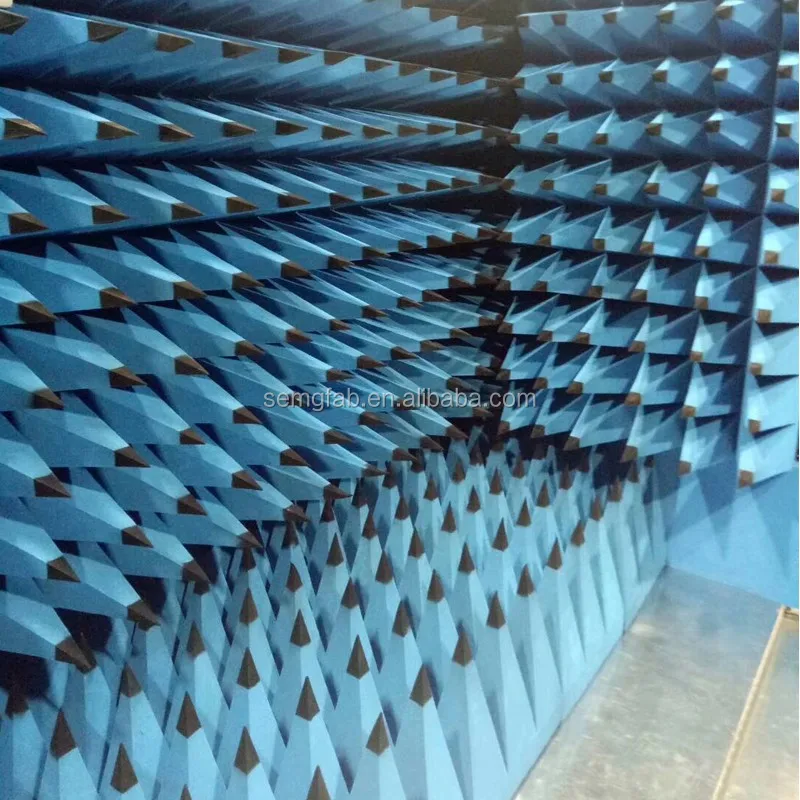

Detailed Images

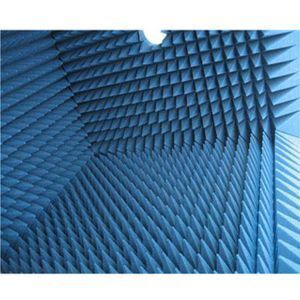

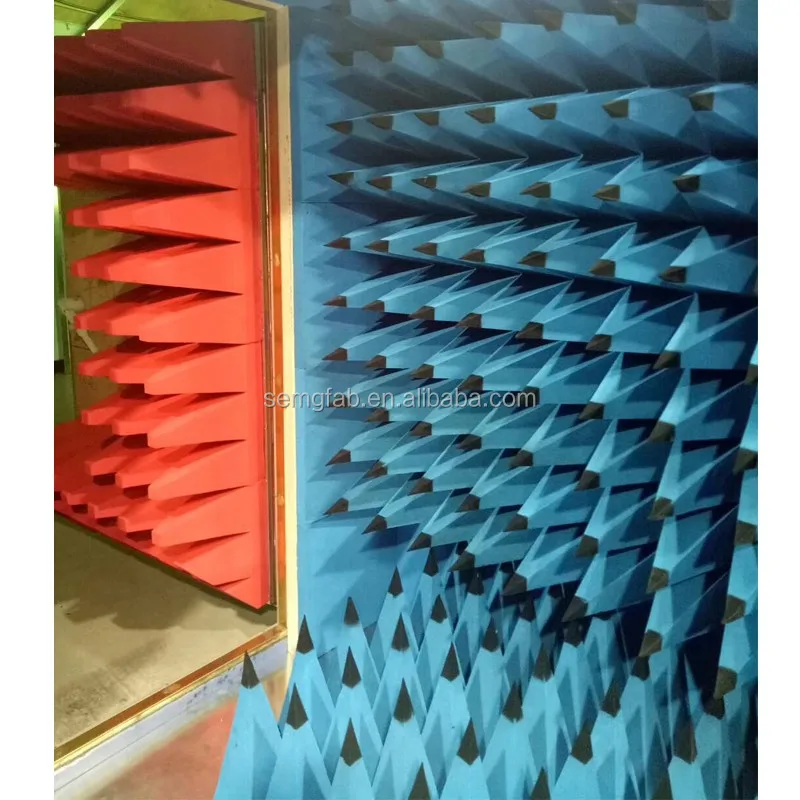

RF pyramidal microwave absorbers for anechoic chamber

Features and Benefies

Flexible, foam material

Fire retardant

Pyramid Electronic
No requirement for the substrate.
Blue or as request

Specifications

Frequency Range : ≥ 1 GHz
Service Temperature °C : -50-80℃
Thickness Size Range : 20mm-1000mm

Market

Commercial Telecom

Security and Defense

Electronic equipment test

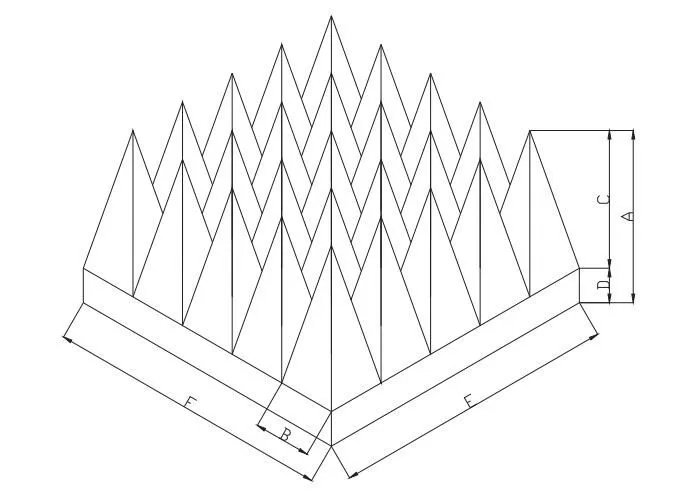

Model Name	Base size F(mm)	Number of Pyramidal	Weight(㎏/㎡)	Total Height A(mm)	Pyramidal Width B(mm)	Pyramidal Height C(mm)	Base Height D(mm)
SA-30	500*500	36*36	1.1	30	14	15	15
SA-50	500*500	20*20	1.8	50	25	30	20
SA-70	500*500	20*20	2.5	70	25	50	20
SA-100	500*500	13*13	3.3	100	38	75	25
SA-150	500*500	9*9	4.8	150	56	120	30
SA-200	500*500	7*7	6.3	200	71	160	40
SA-300	500*500	5*5	9	300	100	240	60
SA-400	500*500	4*4	12	400	125	330	70
SA-500	500*500	3*3	15	500	167	420	80
SA-600	400*400	2*2	18	600	200	510	90
SA-700	250*500	1*2	21	700	250	600	100
SA-800	250*500	1*2	24	800	250	700	100
SA-1000	334*334	1*1	30	1000	335	850	150
