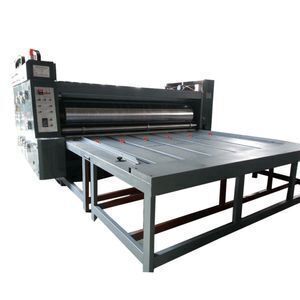

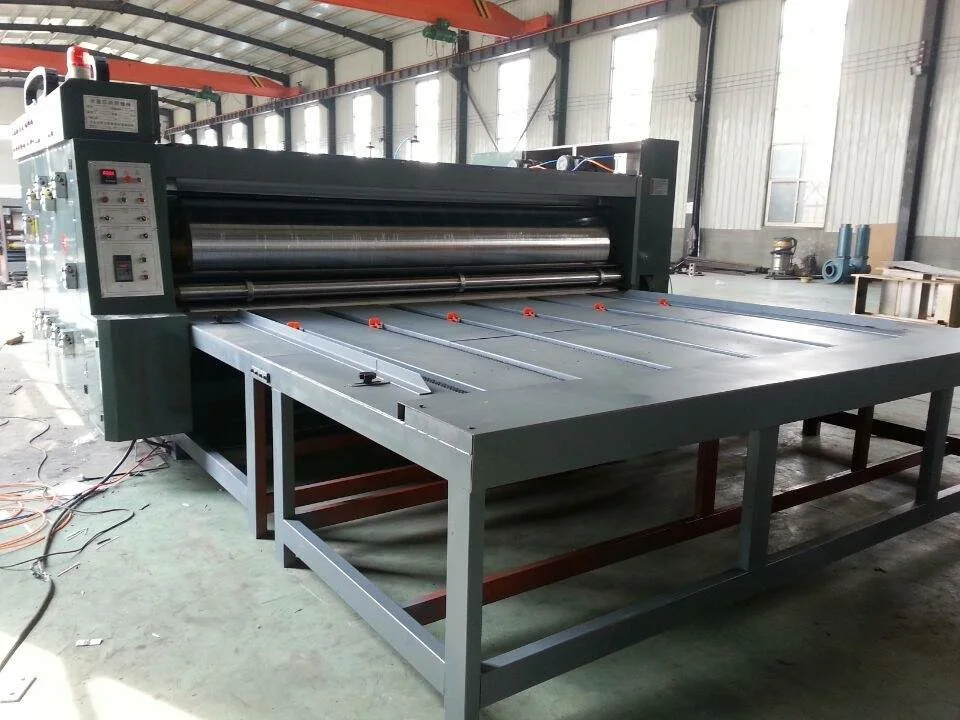

semi-auto corrugated carton paperboard rotary die cutter machine

Click here to contact

Product details

Feeding way:	Chain feeding;	Name:	die cutter machine;
Warranty:	One Year;	Product name:	semi-auto corrugated carton paperboard rotary die cutter machine;
Supply Ability:	20 Set/Sets per Month;	Roller diameter:	300mm,4800mm,530mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;	Packaging Detail:	carton wooden or according to customer requirement. semi-auto corrugated carton paperboard rotary die cutter machine;
Type:	carton box forming machine;	Port:	Tianjin port;
Has been exporting country:	European / United States / Africa/ South-east Asia etc;	Working width:	1800-3200mm;
Machine:	rotary die cutter;	Machine speed:	60 pieces/min;
Applicable Industries:	carton box packing machine;	After-sales Service Provided:	rovided: Engineers available to service machinery overseas;

Feeding department :semi-auto corrugated carton paperboard rotary die cutter machine

it adopts the combination of chain-paper feeding style ensuring paper feeding steady and reducing the rate of spoiled products.

Printing department:

1the rinting roller diameter .400mm. 480MM 530mm

2,Adopt computer-digit phase controller ,input the digit adjustment phase directly

which adjusts quickly and precisely.

3,Auto rise the ink plate ,the inker turning to prevent ink dried.

4,Adopt electrically separation ,pneumatic locking and pneumatic bake

5Ink supplied by pneumatic diaphragm pump

6.Main transmission gear made by 45# steel ,

it adopts helical gear driving and processed by high frequency quenching.

Auto sprinkle lubricating system ensures the machine precise and use life

7.all the roller must be chrome –plating in order to increase the hardness

8..the auto count function.

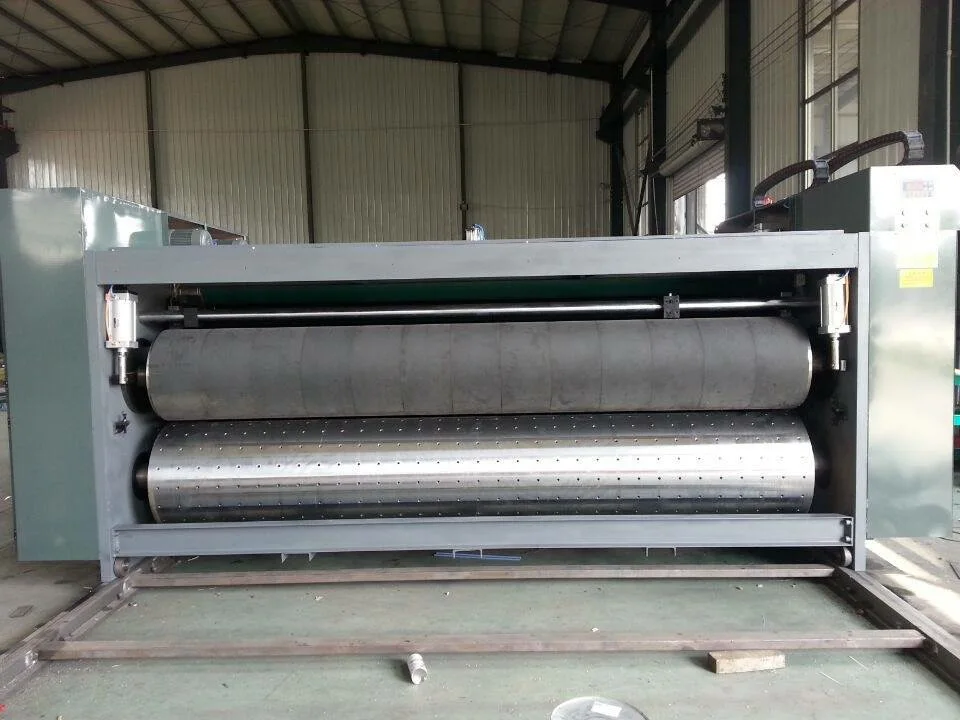

Die cutting part:semi-auto corrugated carton paperboard rotary die cutter machine

1,rubber cushion imported from Taiwan

2,Double-worm abrasire belt cushion correction facility

3,Cushion axial floating automatically to improve the utilization rate of cushion. The range of floating is 0-20mm (from middle to left or right )

4,Speed difference self-compensating function

5,The axial adjustment of platen roller is hand-operated .Range:0-20mm(from middle to left or right)

6,Die cutting phase is adjusted by electric planet geas.Keyless junction.

Parameter:
