FST800-1100 5V 24V DC 25bar 5 bar Oil Pipelines Water Mini Pressure Sensor

Supplier: Hunan Firstrate Sensor Co., Ltd.
Region: Hunan, China
Contact: Ms fiby shen
Price: $9.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

accuracy:	±1 %FS;	Place of Origin:	Hunan China;
Electrical connection:	Packard connector with 1m cable;	Port:	Changsha;
Pressure type:	gauge pressure;	Model Number:	FST800-1100;
Packaging Detail:	standard export packing , including instructions FST800-1100 5V 24V DC 25bar 5 bar Oil Pipelines Water Mini Pressure Sensor;	Supply Ability:	20000 Piece/Pieces per Month 5V 24V DC 25bar 5 bar Oil Pipelines Water Mini Pressure Sensor;
Product name:	5V 24V DC 25bar 5 bar Oil Pipelines Water Mini Pressure Sensor;	Brand Name:	Firstrate;
working temperature:	20~+125°C;	supply voltage:	5VDC 24VDC;
Material:	Stainless steel;	Burst Pressure:	300%FS;
Overload Pressure:	200% FS;	Payment Terms:	T/T,Western Union,Paypal;
Output signal:	0.5-4.5VDC 4-20mA;

FST800-1100 5V 24V DC 25bar 5 bar Oil Pipelines Water Mini Pressure Sensor

Product Description


Features

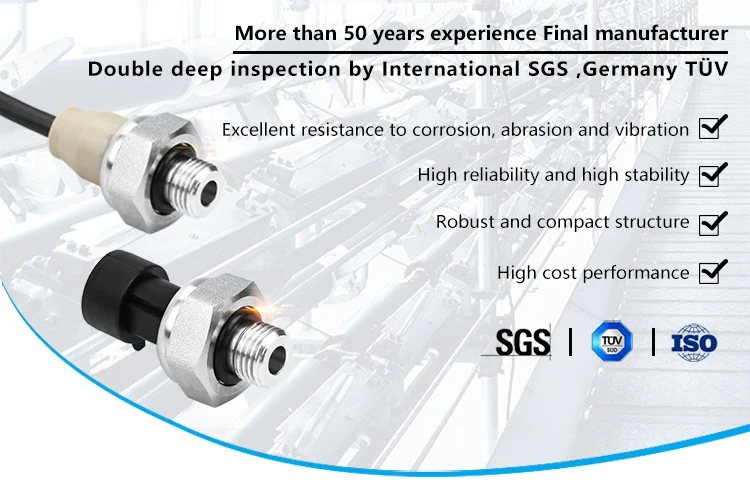

♦ High reliability, high stability ♦ Excellent corrosion resistance, abrasion resistance, vibration resistance ♦ sturdy and compact construction ♦ Cost-effective
Standard Range
Pressure type: gauge pressure
Pressure range (bar) : 0-10bar 0-16 bar 0-25 bar
Technical Index
Signal output	0.5-4.5VDC 4-20mA(for option)
Signal Line Specification	3 Wire 2 Wire
Power supply	5VDC 24V DC
Accuracy	±1 %FS
Working Temperature	-20~+85°C
Storage Temperature	-40~+105°C
Overload Pressure	200% FS
Burst Pressure	300% FS
Impact (11ms)	100g
IP Grade	IP65
Material	Stainless steel 304

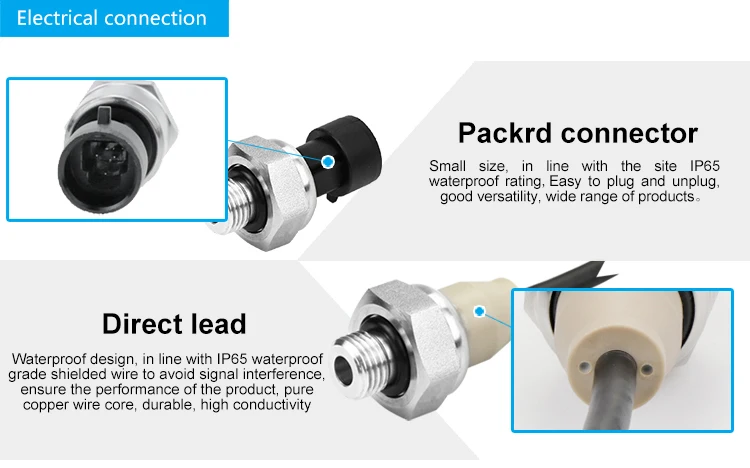

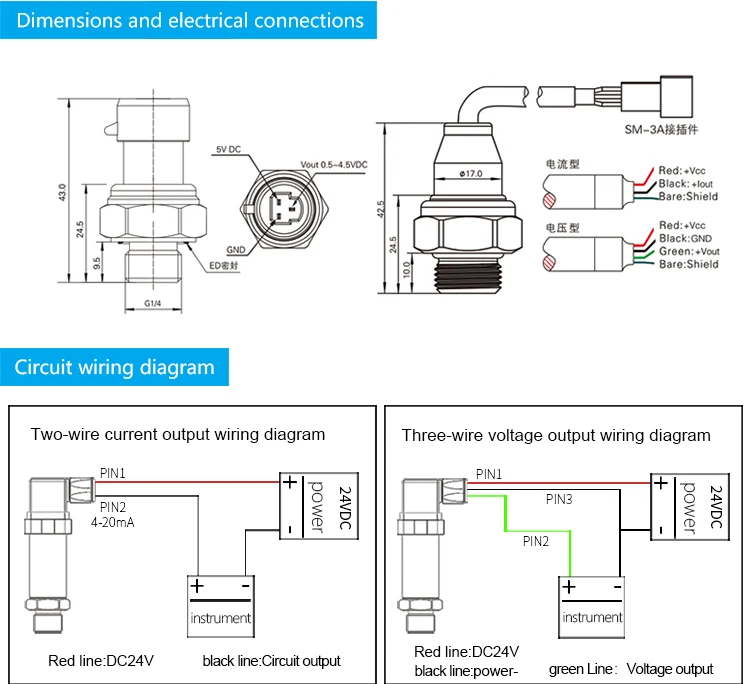

Electrical connection	Packard connector Direcd Lead or SM-3A connector for option
Pressure Port	G1/4 (male) G3/8 and NPT1/4 for option

Application

Applicable Scope
♦ Intelligent water supply, constant pressure frequency conversion water supply system ♦ Hydraulic and pneumatic equipment, servo valves and transmission ♦ Air compressor, refrigeration, water treatment industry ♦ Industrial process detection and control

MORE HOT PRODUCTS

MORE PRODUCTS »»» PLEASE CLICK HERE

Company Information

About Hunan Firstrate Sensor Co.,ltd

Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control. FST800-1100 5V 24V DC 25bar 5 bar Oil Pipelines Water Mini Pressure Sensor

More About Firstrate Company

Firstrate is committed to the research & development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique ,CAN ( Controller Area Network) technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 12 national invention patents, 30 plus utility-model patents. And have got the certificates of CMC, CE, Safety & Flame-proof certification and ROHS. FST800-1100 5V 24V DC 25bar 5 bar Oil Pipelines Water Mini Pressure Sensor

Our Certifications

Our Services

Price, Package, Service

1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time : 7-10 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. 7 days free replace & 1 year free repair for quality warranty

Email: sales(at)firstsensor.com.cn Tel: +86-731-86171990

Website: http://www.firstsensor.com.cn
