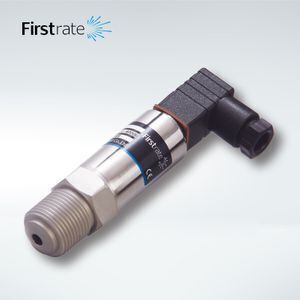

FST800-211 CE Absolute Gauge Low Price Smart 4-20mA China Pressure Transmitter

Supplier: Hunan Firstrate Sensor Co., Ltd.
Region: Hunan, China
Contact: Ms fiby shen
Price: $43.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Brand Name:	Firstrate;	Selling Units:	Single item;
Package Type:	standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance FST800-211 CE Absolute Gauge Low Price Smart 4-20mA China Pressure Transmitter;	Accuracy:	±0.1%FS ±0.3%FS ±0.5%FS;
Signal line specification:	2wire 3wire 3wire 3wire;	Single package size:	10X8X8 cm;
Housing Parts:	17-4PH;	Pressure Type:	gauge pressure absolute pressure sealed pressure;
Working Temperature:	-40~+125°C;	Pressure Range(bar):	1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600;
Environmental Protection:	IP65;	Certificates:	CE RoHS;
Single gross weight:	0.2 KG;	Signal output:	4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC;
Place of Origin:	Hunan China;	Model Number:	FST800-211PressureTransmitter;
Compensated Temperature:	-20~+85°C;

FST800-211 CE Absolute Gauge Low Price Smart 4-20mA China Pressure Transmitter

Our Advantages

Why Choose Our Firstrate?

♦ Focus on sensor production for more than 50 years;
♦ Factory Outlet, Low price;
♦ 12 months free repaire warranty;
♦ Firstrate products have past CE, ROHS, ISO9001 etc.

Product Description

Product Introduction
FST800-211 CE Absolute Gauge Low Price Smart 4-20mA China Pressure Transmitter is a silicon MEMS strain gauge sensor which is glass bonded to a stainless steel diaphragm. It avoids influences on product caused by temperature, humidity, mechanical fatigue and medium, thus to improve its longterm stability in the industrial environment. Its pressure chamber is made of 17-4PH stainless steel in an integrated way without welding seams or O-rings and free of leakage troubles. The sensor adopts the advanced digital Compensated Temperature and is featured with the strong interference resistance, wide working temperature scope and longterm stability, etc. The series products provide several optional pressure connections and electric connections for customers.
Product Features
♦ Advance Microfused Silicon Strain Gauge, whole-designed elastomer, free of leakage troubles ♦ Efficient lightning protection and strong anti RFI&EMI protection. ♦ Advanced digital temperature compensation and wide working temperature scope ♦ High sensibility, high accuracy, high frequency response and longterm stability
Standard Range
Pressure Type: gauge pressure absolute pressure sealed pressure
Pressure Range(bar):1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600
Pressure Range(psi):15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K
Technical Index
Signal output	4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC
Signal line specification	2wire 3wire 3wire 3wire
Power Voltage	9~30VDC 5VDC 9~30VDC 15~30VDC
Accuracy	±0.1%FS ±0.3%FS ±0.5%FS
Zero Drift	±0.02%FS/°C
Thermal Sensitivity Shift	±0.02%FS/°C
Longterm Stability (1 Year)	±0.1%FS
Frequency Response (-3dB)	3.2kHz
Compensated Temperature	-20~+85°C
Working Temperature	-40~+125°C
Storage Temperature	-40~+125°C
Overload Pressure	300% FS
Burst Pressure	500% FS
Mechanical Vibration	±20g
Impact (11ms)	100g
Environmental Protection	IP65
Housing Parts	17-4PH
Electromagnetic compatibility	EN61000-6
Certificates	CE RoHS

MORE HOT PRODUCTS

MORE PRODUCTS »»» PLEASE CLICK HERE

Application

Applicable Scope
♦ Industrial process testing and control ♦ Automatic testing system ♦ Hydraulic and pneumatic systems ♦ Pump station and water treatment system ♦ Industrial machinery manufacture

Company Information

About Company

Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control. ( FST800-211 CE Absolute Gauge Low Price Smart 4-20mA China Pressure Transmitter )

About Firstrate Company

Firstrate is committed to the research & development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique ,CAN ( Controller Area Network) technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 12 national invention patents, 30 plus utility-model patents. And have got the certificates of CMC, CE, Safety & Flame-proof certification and ROHS. ( FST800-211 CE Absolute Gauge Low Price Smart 4-20mA China Pressure Transmitter )

Our Certifications

Our Services

Price, Package, Service

1, Price : EXW, FOB, CFR Changsha

2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

Packing:standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance

Email: sales(at)firstsensor.com.cn Tel: +86-731-86171990
